Desktop Ethernet Switch With 6RJ45 Ports , DC5V1A 8 Port Optical Switch
Desktop Ethernet Switch With 6RJ45 Ports , DC5V1A 8 Port Optical Switch
Desktop Ethernet Switch With 6RJ45 Ports , DC5V1A 8 Port Optical Switch
Desktop Ethernet Switch With 6RJ45 Ports , DC5V1A 8 Port Optical Switch
Specifications
Brand Name :
OLYCOM
Model Number :
TA726-FE/XX
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
6000 sets per month
Delivery Time :
5 working days
Packaging Details :
Neutral packing
Name :
8 Port Fiber Optic Switch
Network Speed :
10/100M
Mounted Type :
Desktop mounted
Communication Way :
Full-Duplex and Half-Duplex
Power Supply :
External power supply
Product Warranty :
1 year
Description

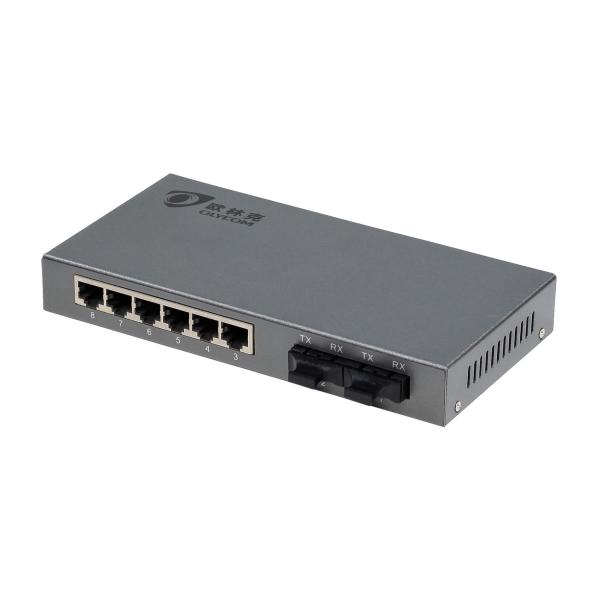

10/100M Desktop 8 Port Optical Switch With 6RJ45 Ports 2 Fiber Ports

Introduction

TA726-FE/XX 2 fiber to 6 UTP 8 Port fiber optic switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests.

Key Features

  1. 2 x SMF/MMF, simplex/duplex fiber port

  2. 6 x 10/100M auto-sensing Half/Full duplex RJ45 ports
  3. Excellent cooling system with unique HIC solution

  4. Follow control and broadcast storm control

  5. IEEE802.3/u/x compliant

  6. Conspicuous LED indicators for power/link diagnose/data

    50,000 hours MTBF


Specification

Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Protocol CSMA/CD
Fiber 2 x Single fiber or Dual fiber
Distance Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-120km
Optical interface SC (ST, FC)
Ethernet Interface 6 x MDI/MDIX RJ45 ports
Power supply DC5V 1A (external power)
Operating temperature 0℃-50℃
Storage temperature -30℃-60℃
Humidity 5%~90% non-condensing
Dimension-standalone 106mm ×83mm ×22mm
Weight 0.5 kg (Gross Weight)


Application

  1. Where 2 FX needs to be extended to several copper ports

  2. 2 fiber source to multi-users

  3. Offices and work groups

  4. Schools

  5. Power supply stations

Packing Information

1. one fiber switch

2. one power adapter (power plug supports US, EU, UK and others)

3. one user manual

20pcs will be packed in one carton and the carton size is 67*33*47cm


Order Details

TA726-FE/M2-SC 10/100Mbps, 2 fiber to 6 UTP, dual fiber, MMF, SC, 2Km
TA726-FE/S20-SC 10/100Mbps, 2 fiber to 6 UTP, dual fiber, SMF, SC, 20Km
TA732S/U-FE/S20-SC 10/100Mbps,3 fiber to 2 UTP, single fiber, SMF,SC,20Km
TA712-FE/S20-SC 10/100Mbps, 1 fiber to 2 UTP, dual fiber, SMF, SC, 20Km
TA714-FE/S20-SC 10/100Mbps, 1 fiber to 4 UTP, dual fiber, SMF, SC, 20Km
TA717-FE/S20-SC 10/100Mbps, 1 fiber to 7 UTP, dual fiber, SMF, SC, 20Km
TA732-FE/S20-SC 10/100Mbps, 3 fiber to 2 UTP, dual fiber, SMF, SC, 20Km
TA726-FE/S20-SC 10/100Mbps, 2 fiber to 6 UTP, dual fiber, SMF, SC, 20Km
