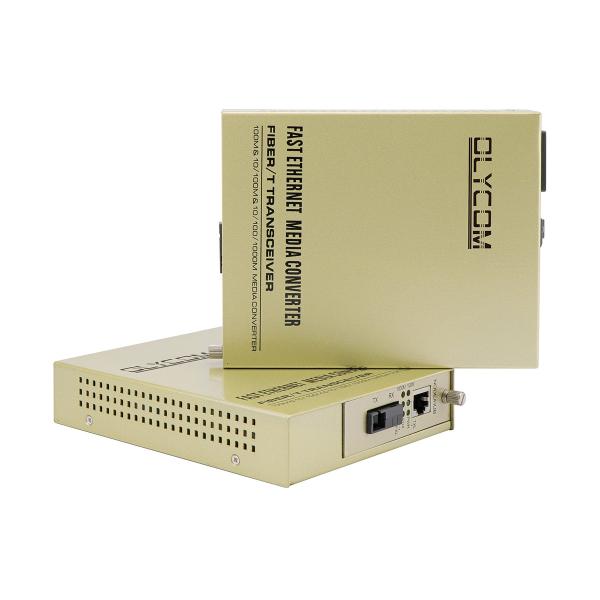

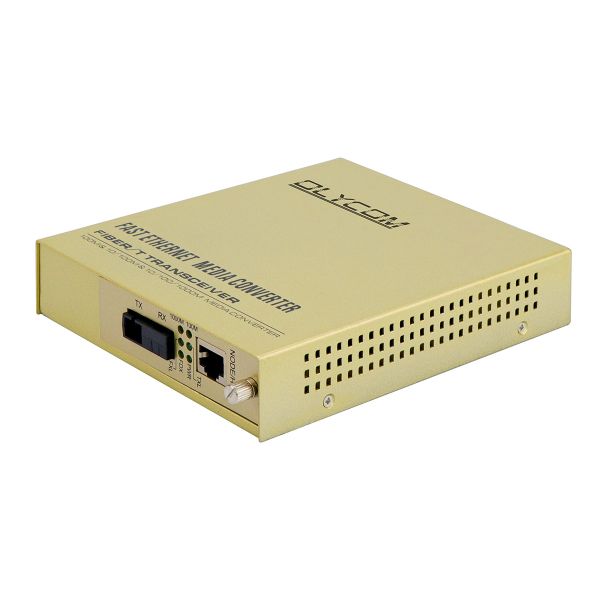

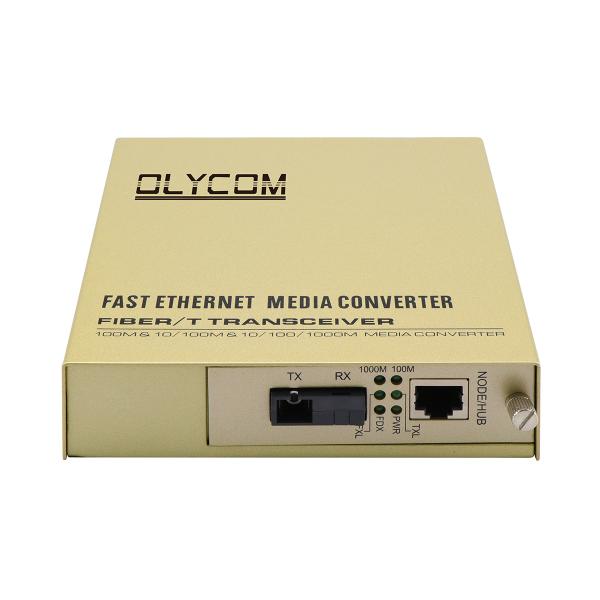

Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input
Specifications
Brand Name :
Olycom
Model Number :
OM510-GE
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
1200 pairs per week
Delivery Time :
4~8 working days
Packaging Details :
1 pair in a box, 1.92kg(G.W)
Product name :
Media converter Ethernet to fiber
Fiber :
Simplex, SC connecor
Wavelength :
1310nm/1550nm, WDM
Ethernet port :
Gigabit based, 1.25Gb/s
Power :
AC input, 220V
Size :
17.3*12.8*3.2cm
Operating Temp :
0℃~50℃
Warranty :
1 year
Description

WDM Single Mode Fiber Optic Media Converter


Introduction

Olycom Gigabit Ethernet media converter features

  1. 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology
  2. 10/100/1000Mbps autosensing, auto-MDI/MDIX
  3. utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km
  4. Full- positioned LEDs to indicate power and network status
  5. It’s often applied in school, cyber bars, offices, and telecommunication networks


Key Features

  • Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
  • Full duplex-flow control, Half duplex-back pressure

  • Link fault pass through (LFPT)

  • 10K super data packet transmission

  • Support AVB


Specification

Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)

IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet)

IEEE802.3x (Flow Control) IEEE802.1q, IEEE802.1p QoS

IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az
10/100/1000BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
1000BASE-FX 9/125um singlemode fiber cable (20/40/60/80/100/120km)

Conversion Mode

Delay Time

Store-and-Forward < 10us

straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX

Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Dimensions 173mm(W) x 128mm(D) x 32mm(H)
Weight Net weight : 0.74kg, Gross weight : 0.96kg
Input Voltage AC100 ~ 240V / 50-60HZ
Power Consumption <2.5W
MTBF 50,000 hours
BER <1/1000000000

MAC Address Table 4K
Buffer Size 1.75M
Operating Temperature 0℃~50℃
Storage Temperature -40℃~70℃
Storage Humidity 5%~90% non-condescending


Ordering Information

OM511/2-GE/SC-20 10/100/1000M, Standalone, Single fiber, Single mode, SC, 20km, internal power supply
OM511/2-GE/SC-40 10/100/1000M, Standalone, Single fiber, Single mode, SC, 40km, internal power supply
OM511/2-GE/SC-60 10/100/1000M, Standalone, Single fiber, Single mode, SC, 60km, internal power supply
OM511/2-GE/SC-80 10/100/1000M, Standalone, Single fiber, Single mode, SC, 80km, internal power supply
OM511/2-GE/SC-100 10/100/1000M, Standalone, Single fiber, Single mode, SC, 100km, internal power supply
OM511/2-GE/SC-120 10/100/1000M, Standalone, Single fiber, Single mode, SC, 120km, internal power supply


Above listed are most frequently ordered items.

FAQ

What incoterms do you support?

We are an EXW factory, EXW term is our focus.

Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.

Do you attend some exhibitions?

Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.

Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.

Each time, we took many photos for displaying and record, please let us know if you need to check.

Single Core Fiber Optic Ethernet Media Converter Unmanaged 1310/1550nm 220V AC Input

Can I visit your factory?

Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.

Please let us know if you have a plan.

What is your payment term?

For sample orders, full payment before production.

For bulk orders, we could do 30% deposit and balance payment before we ship your order.

The principle rule is full payment before shipment.

Company Profile

We manufacture and market fiber optic connectivity devices.

We provide solutions and services of industrial networking, fiber optic, CCTV surveillance and fiber optic conversion&transmission.

Din-rail gigabit industrial L2 L3 managed switch

Fiber optic Ethernet media converter

AHD TVI CVI Analog video fiber converter

Optical fiber module transceiver

CWDM/DWDM/OXC/DCI system

For the last 20 years, Olycom has been seeking betterness and developing cutting-edge fiber optic devices&solutions, and gained popularity&recognization in China and overseas.
