Specifications
Brand Name :
Olycom
Model Number :
TA243-PSE-FE
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1 Pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
1500 pcs per month
Delivery Time :
3~7 working days
Packaging Details :
1 piece in 1 carton. 0.5Kg/carton
Product name :
POE lc fiber to Ethernet converter
Fiber :
SFP slot for SM MM modules
Voltage :
48V DC input
Ethernet rate :
10/100Mbps
Weight :
0.5kg(N.W)
Dimension :
13.5cm*9cm*2.8cm
MAC Address Table :
1K
Warranty :
1 year
Description

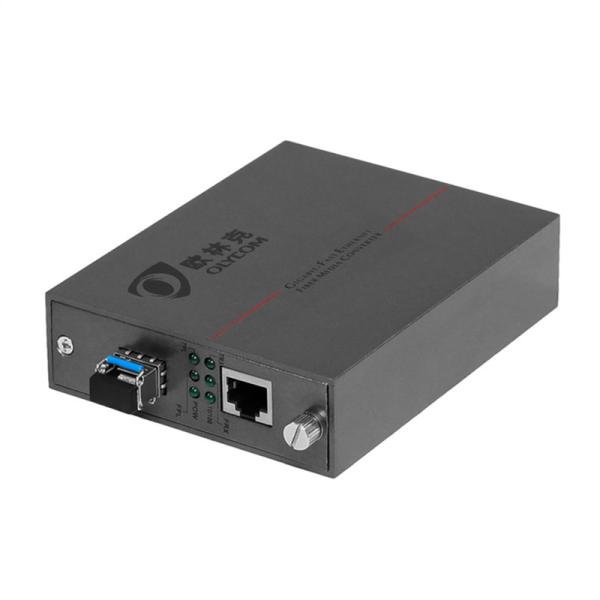

48V POE Fiber Optic Media Converter

Introduction

Olycom 10/100Mbps POE PSE fiber to copper Ethernet media converter features below

  • Model name: TA243-PSE-FE, we support your model name
  • Widely used for WiFi access points, VoIP phones and IP security cameras
  • Provide both data and electric current to devices
  • Supply IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the twisted pair port
  • Install Powered Devices (PD) anywhere around the LAN or enterprise campus

Features

  • IEEE802.3af/at compliant, POE 15.4W or 30W
  • External Power supply, DC input

  • 1 x 10/100Base-TX port for data and power

  • 1 x 100Base-FX or SX fiber port
  • Externalized DIP switch for convenient configuration

Technical Parameters

Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS

IEEE802.1d Spanning Tree, IEEE802.3af /at PoE/PSE
10/100BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX 9/125um SMF (20km)

Conversion Mode

Delay Time

 Store-and-Forward < 10us, straight-through<0.9us
Flow control Full duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber Connector SC standard, ST/FC optional
Wavelength 1310/1550nm
Input Voltage 48VDC/1A external power supply
Power Consumption <2.5W
PoE Pin Assignment 1/2 (V+),3/6 (V-)
PoE Output -48V, 0.54A, 25W
MTBF 50,000 hours
BER <1/1000000000
MAC Address Table 1K
Buffer Size 1M
Operation Temperature 0℃~50℃
Storage Temperature -20℃~85℃
Storage Humidity 5%~90% non-condescending
Dimensions and Weight

135mm(L) x 90mm(W) x 28mm(H)

Net weight : 0.3kg, Gross weight : 0.5kg

10/100M POE Fiber Optic Ethernet Media Converter LC Fiber SFP Megabit Unmanaged

Product Images

10/100M POE Fiber Optic Ethernet Media Converter LC Fiber SFP Megabit Unmanaged

10/100M POE Fiber Optic Ethernet Media Converter LC Fiber SFP Megabit Unmanaged

Warranty

Products Category Warranty Period
Fiber Ethernet Media Converter 1 year
Optical Video Converter 1 year
Fiber Switch 1 year
Ethernet Switch 1 year
Serial Fiber Converter 1 year
PDH Multiplexer 1 year
CCTV PoE Switch 1 year
Commercial Managed Switch 1 year
Commercial PoE Managed Switch 1 year
Din Power Supply 3 years
Industrial Ethernet Switch 3 years
Industrial PoE Switch 3 years
Industrial Managed Switch 3 years
Industrial PoE Managed Switch 3 years
CWDM Module 1 year
DWDM/OTN Devices 1 year

The customer is responsible for delivering the defective product to the designated RMA Address for repair or replacement.

Olycom will repair or replace a product that was found defective by Olycom during the warranty period at its discretion. The sole responsibility of Olycom under this warranty shall be limited to repair of this product, or replacement thereof, at the sole discretion of Olycom.

All RMA items shipped to Olycom must be freight prepaid.

The repaired products would be returned within 1 month after receiving the returned materials. Freight charge should be paid by the sender.
