Specifications
Brand Name :
OLYCOM
Model Number :
IM-FS440GE
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability :
6000 per month
Delivery Time :
3-5 days
Packaging Details :
One unit device and one user manual are inside one box , sealed and well protected.
Product Name :
Gigabit Switch 4 Port
surge Protection :
6 KV Ethernet surge protection
Material :
Corrugated metal shell
Fiber Port :
4 * 1000Mbps SFP fiber ports
Ethernet Port :
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
No-load power :
5W
Description

Gigabit Switch 4 Port Unmanaged Network Switch Metal Plug And Play

Introduction of Gigabit Switch

Gigabit Switch 4 port is the 10/100/1000 Mbps industrial fiber switch, operating temperature -40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Gigabit Switch

  1. 4 x 1000Mbps SFP fiber ports
  2. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  3. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  7. A store-and-forward switching mechanism
  8. Operating environment temperature:-40 ° ~75 ° c

Specification of Gigabit Switch

Model No. IM-FS440GE
Port

4 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage: DC 12-52V

No-load power:5W

Reverse connection: support
Environment

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting
Warranty 3 years

Packaging & Delivery of Gigabit Switch

1. One product and one user manual are inside one box.

2. 20pcs boxes are in one carton (67*33*47cm)

3. Lead Time:

Quantity(Pieces) 1-100 >100
Time(Days) 3 Negotiable

Application of Gigabit Switch


4 Port Industrial Switch 1000Mbps Fiber Ethernet Switch Metal Plug And Play

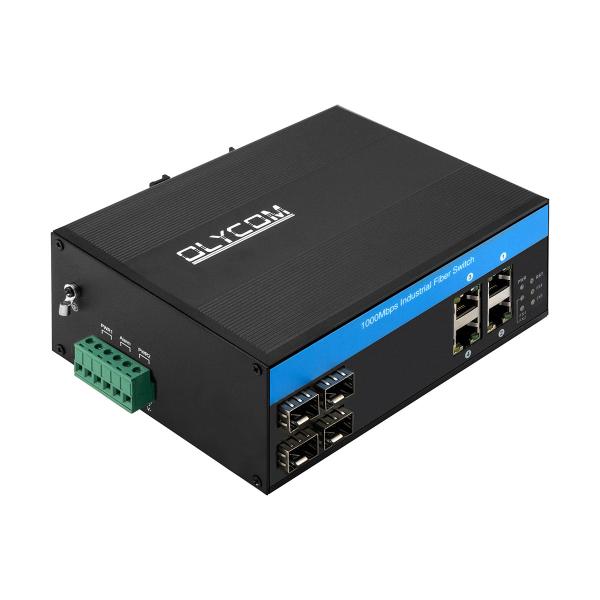

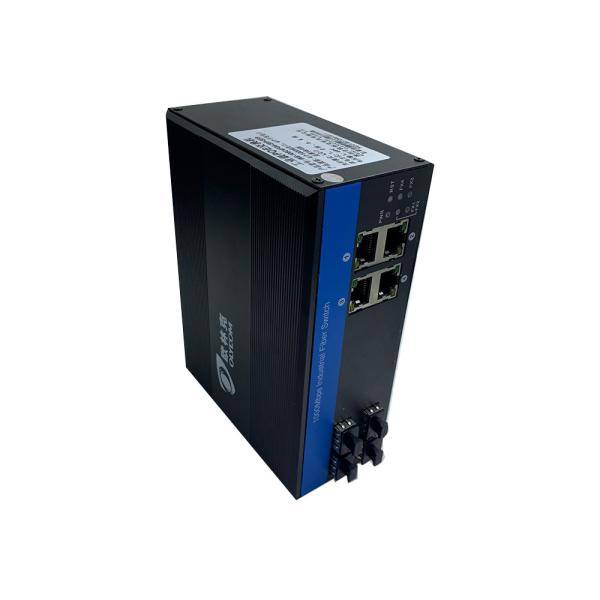

Photo of Gigabit Switch

4 Port Industrial Switch 1000Mbps Fiber Ethernet Switch Metal Plug And Play
