Specifications
Brand Name :
Olycom
Model Number :
IM-FS480GWV1
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product Name :
12 port managed switch
Surge protection :
±6KV
Housing :
IP40 Protection Grade, DIN Rail Type
Power input :
12 to 52v DC redundant power
Communication Mode :
Full-Duplex & Half-Duplex
Description

Gigabit managed switch 12 port ethernet switch

4SFP+8RJ45 DIN-Rail dual power input

Gigabit managed switch 12 port ethernet switch 4SFP+8RJ45 DIN-Rail dual power input

Key Features of Industrial managed switch

  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 4 x 1000Mbps SFP fiber port
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard,
  • half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c
  • Support cable diagnosis and can locate the fault point
  • Support IEEE802.3az EEE (Energy Efficient Ethernet) Management,
  • optimize power consumption
  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control
  • (input/output direction), storm suppression ,differentiated services
  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
  • Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

Specification of Industrial Full Gigabit Switch

Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (4F+8TP)
Model No. IM-FS480GW
Port

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)

DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage:DC 12-52V; No-load power:5W;

Reverse connection: support
Environment Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

Mounting method:Din-rail mounting
Warranty 3 years

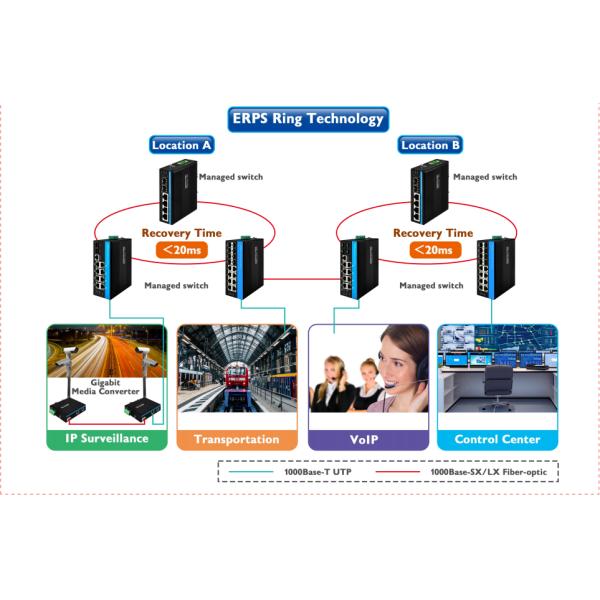

Application

Gigabit managed switch 12 port ethernet switch 4SFP+8RJ45 DIN-Rail dual power input

FAQ

1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.

2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.

3. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.

4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.

5. Can you let me know how the indicators work?
A: This is our Vitesse based managed switch series and all models share the same indicator definition as below.
PWR: Power
FX: Fiber port(1/2/3/4)
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
