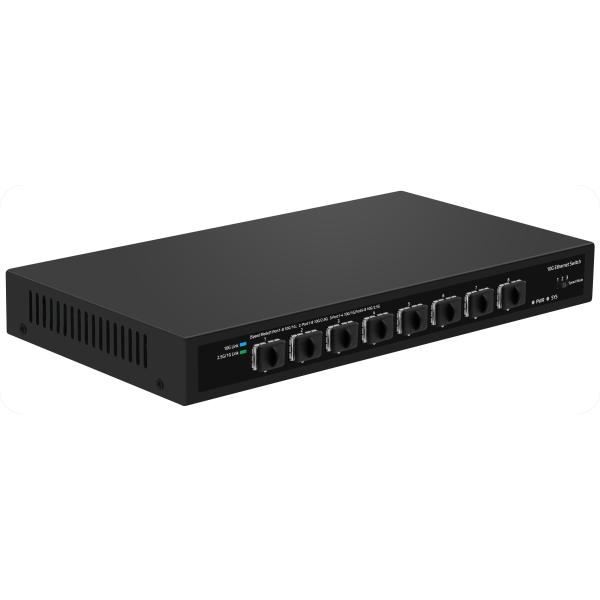

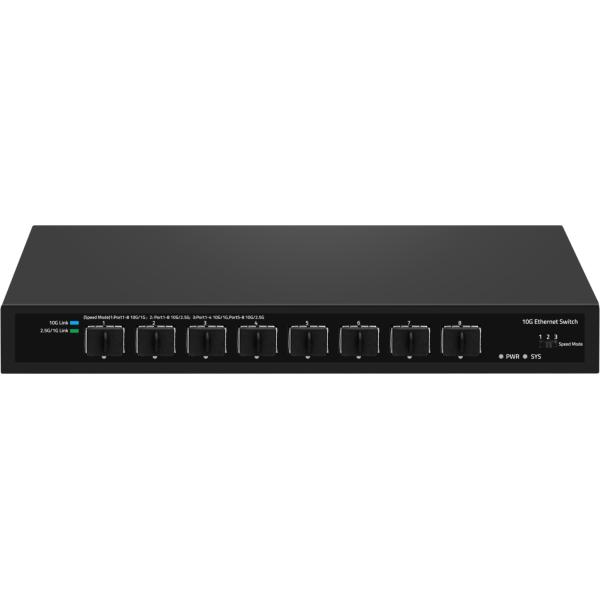

8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based
Specifications
Brand Name :
Olycom
Model Number :
OM8X00GE
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
3~7 days
Packaging Details :
1 piece in a box, 0.86Kg G.W.
Product Name :
10G Fiber Optic Switch
Port :
8*1G/2.5G/10G Fiber
Feature :
Unmanaged, Non-PoE
Power :
DC12V Input
Description

8 Port 10G Fiber Switch

Features of Fibe Optical Switch

  1. 8*10G SFP+ ports
  2. Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3 bz, IEEE 802.3 ae, IEEE 802.3.x.
  3. SFP+ port support 1.25G/2.5G/10G
  4. Support Port Auto MDI/MDIX
  5. Panel Indicators monitor working conditions and assist in fault analysis
  6. Flow Control Mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex
  7. Supports one click code dialing and three speed switching
  8. Support Purge Protection: ESD: air 8KV, Contact 6KV, Class B

8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based

Description of 8 Port Fiber Switch

I/O Interface
Power input DC 12V
Ethernet 8* 10G SFP+ ports
Chip Scheme RTL9303
Performance
Bandwidth 160Gbps
Packet Forwarding Rate 119.04Mpps
RAM 128MByte
Flash Memory 16MByte
Memory Cache 12Mbit
Mac Address Table 16K
Jumbo Frame 12Kbytes
Standard
Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet fiber standard)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)
Industry Standard

EMS: EN61000-4-2 (ESD)

EN61000-4-5 (Surge)

Optical Media

Multimode Fiber: 50/125, 62.5/125, 100/140um

Single mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety certification CE, FCC, RoHS
Environment Standard
Working environment

Working temperature: - 10~50 ° C

Storage temperature: - 40~70 ° C

Working humidity: 10%~90%, non-condensing

Storage humidity: 5%~95%, non-condensing

Functional Indication
Indicator Light PWR (Power Indicator)
PWR(Power Indicator)

On: Powered on

Off: Powered off
SYS

Flashing: System startup in progress

On: System startup completed
SFP Port Light

Blue on: 10G link

Green on: 1000M/2500M link

Flashing: Data transmitting

Off: Link not working

Dialing light

Left Side: 1 to 8 Ports have speeds of 10G/1G.

Middle: 1 to 8 Ports have speeds of 10G/2.5G.

Right Side: 1 to 4 Ports have speeds of 10G/1G, 5 to 8 Ports have speeds of 10G/2.5G.

Physical Specifications

Structure size

Product size:220*126*28mm

Package size:259*228*60mm

Net weight:0.62KG

Gross weight:0.86KG

Packing information

Carton size:535*320*480mm

Packing quantity:20Pcs

Packing weight:18.2KG
Supply voltage Power Adapter: 12V2A
Power Maximum 18W
Packing list Switch 1PCS, manual 1PCS, certificate of conformity 1PCS, power cord 1PCS

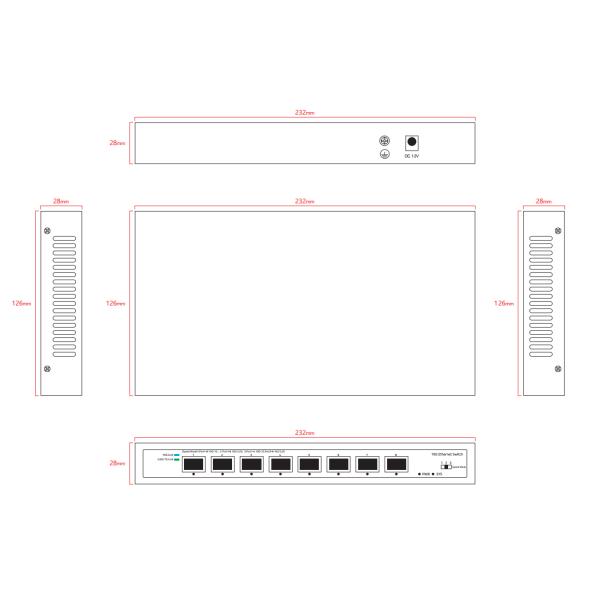

Dimension

8 Port 10G Fiber Switch 1G 2.5G Compliant Unmanaged DC12V Input Realtek Based

Introduction to 10G Fiber Switch

  1. This 8-port full 10G SFP Ethernet Switch adopts a high-quality and high-speed network chip solution.
  2. It is configured with 8* 10G SFP+ ports, which supports 1.25G/2.5G/10G rates.
  3. It adopts a storage and forwarding mechanism, and internally integrates a high capacity cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations.
  4. With a sturdy and durable and high strength steel shell design, the efficient heat dissipation ensures stable operation of the product.
  5. The switch can be widely used in security network video monitoring, hotels, campuses, large and medium-sized enterprise network engineering, and other fields.
