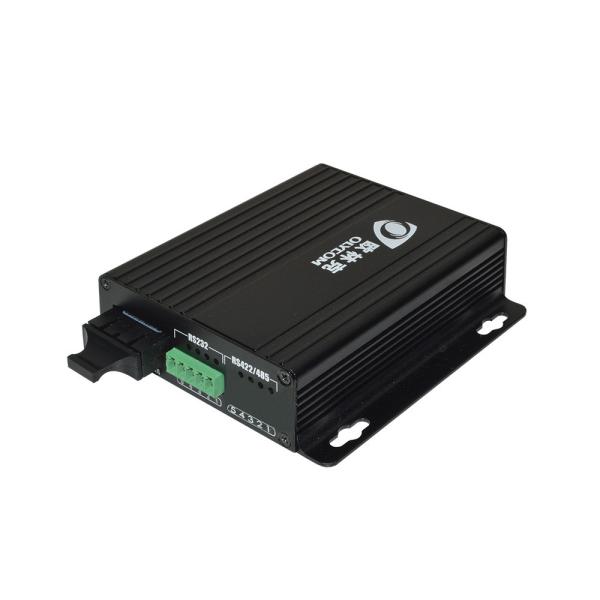

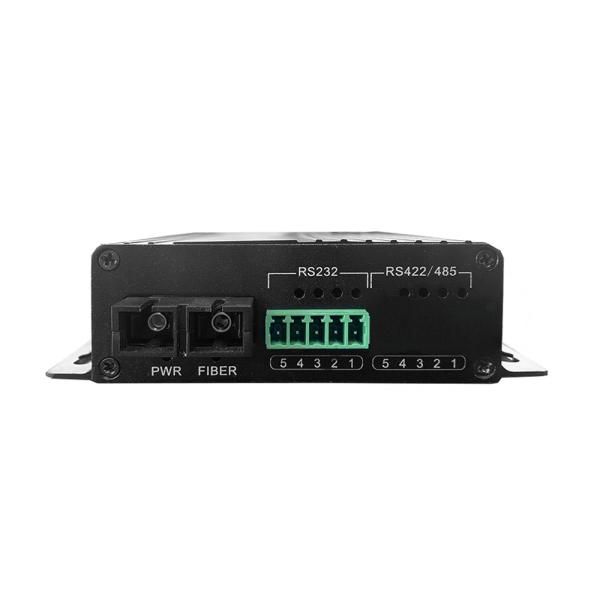

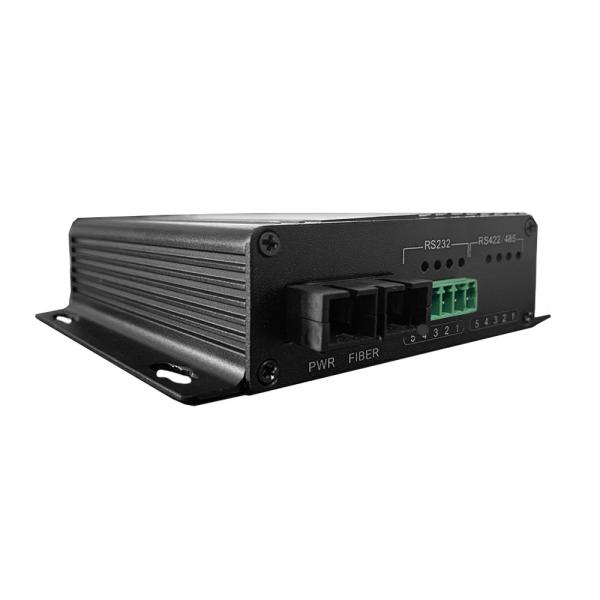

Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem
Specifications
Brand Name :
Olycom
Model Number :
IM2101-RS232/RS422/RS485
Certification :
CE RoHS FCC
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product name :
Industrial Fiber Optic Modem
Fiber Connector :
SC standard, ST/FC optional
Static protection :
15KV electric static discharge (ESD) protection
Operating temperature :
-40°C to +70°C
Communication Interface :
2*RJ45
Standard :
EIA /TIA RS232, RS-422, RS-485
Description

Industrial DIN-Rail RS485 RS422 RS485 Serial Data

to Fiber Converter Fiber Optic Modem

Product Features of Industrial Fiber Converter

  • Plug-and-play, hot plugable
  • Extends RS232/RS-422/RS-485 transmission up to 2Km on MMF, 80Km on SMF
  • Industrial Din Mount Compact size, rugged case
  • Protects against electrical interference and chemical corrosion
  • Built-in surge and static protection
  • Diagnostic and unit indicator LEDs
  • Wide temperature range

Specification of Fiber Optic Modem

Standard EIA /TIA RS232, RS-422, RS-485
Fiber Connector SC standard, ST/FC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate 0-120Kbps
Baud Rate 300 Baud to 115,200 Baud
RS-485 D+, D-, GND
RS-422 R+, R-, T+, T-, GND
RS-232 IN, OUT, GND
Power rate 2W, 9-52V
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 114*93*35mm
Weight 0.35kg/pc net weight

Application

Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem

Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem

Industrial DIN-Rail RS485 RS422 RS485 Serial Data To Fiber Converter Fiber Optic Modem

FAQ:

1.Is there any special software to use this device or just plug & play?

(Olycom) Just plug&play. Once the fiber cable/serial signal got a problem, it stops working.

2. Do we have to set for baud rate (RS485)? Our MFM meters are using 9600 or 19200 baud rates. Will it work for those baud rates (either one)? Or baud rate is automatically selected?

(Olycom) Auto-sensing/300 Baud to 115,200 Baud. So you do not have to set the baud rate.

3. What is the fiber optic option?

(Olycom) Fixed module or SFP slot available. For the fixed module, it could be SC/FC/ST with different distances(Singlemode or Multimode)

4. Can I just have RS485 serial? RS232 is not required.

(Olycom) Yes, there are 3 serial PCB cards available, options are

1, Max 6*RS232(2-pin)

2, Max 6*RS485(2-pin)

3, Max 3*RS485/RS422(RS485 4-pin, RS422 2-pin)

4, Combination: 1*RS485/RS422+4*RS232(2-pin)

2*RS485/RS422+2*RS232(2-pin)...

With those flexible options, the fiber module supports fixed or SFP type as said above
