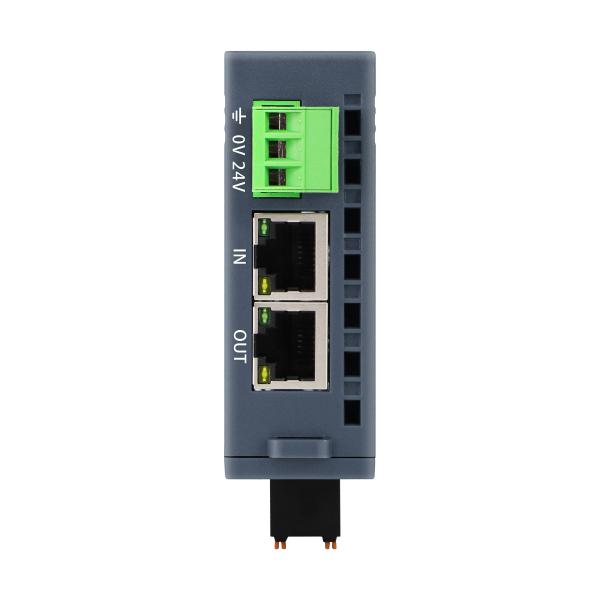

Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output
Specifications
Brand Name :
Olycom
Model Number :
OM523S-1BL22-ECT
Certification :
CE RoHS FCC
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product name :
EtherCAT I/O Module
Working Voltage :
24VDC (voltage range 18VDC~28VDC)
Bus Communication interface :
2*RJ45
Scalability :
Do not support Extension
Dimensions :
27mm*94mm*114mm
Description

100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System

16DI 16DO PNP output Din Rail I/O Module

Product Features of PAL I/O System

  • 2 RJ45 interfaces, 100Mbit/s
  • Bus, power isolation technology, and reliability
  • Standalone as EtherCAT slave station
  • Provide standalone XML files

Specification of EtherCAT extensible coupler

Model OM52xS EtherCAT slave module
Technical Specifications
Working Voltage 24VDC (voltage range 18VDC~28VDC)
Operating Current Loss Based on different product models, please refer to the product manual for details
Power Protection Anti reverse connection protection, surge absorption
Communication Interface 2*RJ45
Power Terminal Type Plugged connector, screw wiring connection port
Signal Terminal Type Plugged connector, straight in PUSH-IN wiring port
Display Indication Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light
Protocol EtherCAT
Master-slave categories standalone slave devices
Main IO points Yes, please refer to the ordering data for details
Overcurrent Protection Threshold 1.5A, 5ms
IO Response Time Minimum 500us
Scalability Do not support Extension
Cable length (shielding) Maximum 500m
Cable length (unshielded) The maximum length of the input point is 300m, and the maximum length of the output point is 150m
Slave Station Settings
Address Settings Configuration by dial switch or master station
Maximum number of Stations per Segment 255 (The specific number of supported stations is determined by the master station)
Work Environment
Working Temperature -20~60℃
Working Humidity 5%~90% (non-condensation)
Protection Grade IP20
Dimensions(l* w * h) 27mm*94mm*114mm

Packing

Din Rail I/O Module 100Mbit/s 2 RJ45 EtherCAT Protocol PAL I/O System 16DI 16DO PNP output

Ordering Details

Specifications Product No.
OM521S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DI (common anode/common anode input), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM521S-1BL22-ECT
OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM522S-1BL22-ECT
OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM522S-1NL22-ECT
OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM523S-1BL22-ECT
OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input), 16DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM523S-1NL22-ECT
OM523S standalone module, SM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code setting station ID address, the product comes with 16DI (common anode/common anode input) and 12DO (relay output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM523S-1HJ22-ECT
OM524S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM524S-2NL22-ECT
OM525S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DO (NPN output) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM525S-3NL22-ECT
OM526S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address. The product is equipped with 16DIO (NPN type, 2-channel group configuration input or output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation

OM526S-1NH22-ECT

(planning product)
