Specifications
Brand Name :
Olycom
Model Number :
IM-FS440GW
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product Name :
8 port Managed industrial switch
Communication Mode :
Full-Duplex & Half-Duplex
Transmission Distance :
2KM-120KM
Brand :
Olycom/customized/no brand
MOQ :
1 pcs
Function :
LACP, POE, QoS, SNMP, VLAN Support
Surge protection :
±6KV
Description

8 port gigabit L2 managed Industrial fiber switch

12V/24V/48VDC input ethernet switch

8 port gigabit L2 managed Industrial fiber switch 12V/24V/48VDC input ethernet switch

Key Features of 8 port Industrial switch

  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial Full Gigabit Switch

Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (4F+4TP)
Model No. IM-FS440GW
Port

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)

DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage:DC 12-52V; No-load power:5W;

Reverse connection: support
Environment Working Temp:-40°～75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

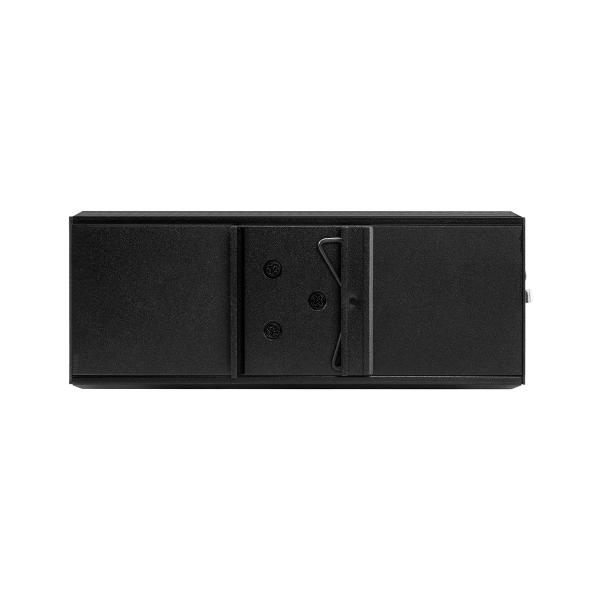

Mounting method:Din-rail mounting
Warranty 3 years

Packing box of Din rail managed switch:

  • Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
  • The standard packing usually contains a main device, a warranty card and a user manual.
  • Packing box dimension for 1pc: 23*20.8*8cm
  • 20pcs in a packing box of 55.5*40*41cm dimension.

PACKING LIST CONTENT QTY UNIT
6-port gigabit uplink managed industrial PoE+ switch 1 SET
User Manual 1 PC
Warranty Card 1 PC
Removable Terminal Block 1 PC
Note: Industrial POE Switch does not include the power supply and SFP module.
