Specifications
Brand Name :
Olycom
Model Number :
IM-FP488GWV1
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product Name :
12port Ethernet POE Switch
Communication Mode :
Full-Duplex & Half-Duplex
Power Supply Pin :
1/2 (V+),3/6 (V-); 4/5 (V+),7/8 (V-)
Brand :
Olycom/customized/no brand
PoE Output Power :
15.4W/30W
Function :
LACP, POE, QoS, SNMP, VLAN Support
Surge protection :
±6KV
Data Rate :
10/100/1000Mbps
Description

Gigabit 12 Port Industrial PoE Ethernet Switch

IEEE 802.3af/at RJ45 DIN Rail Installation Switch


Gigabit 12 Port Industrial PoE Ethernet Switch IEEE 802.3af/at RJ45 DIN Rail Installation Switch

Introduction of 12 port Industrial POE switch

IM-FP488GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of Industrial Full Gigabit Switch

Product Name 10/100/1000Mbps Industrial POE Fiber Switch (4F+8TP)
Model No. IM-FP488GE
Port

4x 1000Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:Storage and Forward
System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~8)
(802.3at standards required special instructions)
Environment

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
Safety

CE Mark ,commercial
CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell
Safety class:IP40
Dimension:158 x 114.8 x 60mm

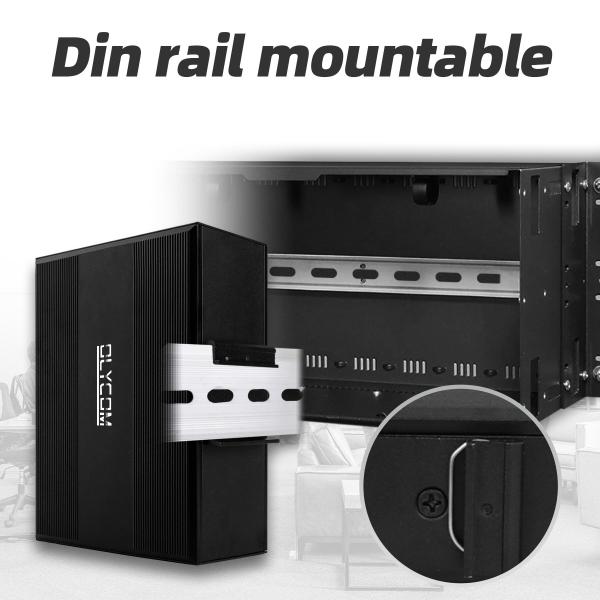

Mounting method:Din-rail mounting
Warranty 3 years repairing


Packing box of Din rail managed switch:

Gigabit 12 Port Industrial PoE Ethernet Switch IEEE 802.3af/at RJ45 DIN Rail Installation Switch

PACKING LIST CONTENT QTY UNIT
6-port gigabit uplink managed industrial PoE+ switch 1 SET
User Manual 1 PC
Warranty Card 1 PC
Removable Terminal Block 1 PC
Note: Industrial POE Switch does not include the power supply and SFP module.
