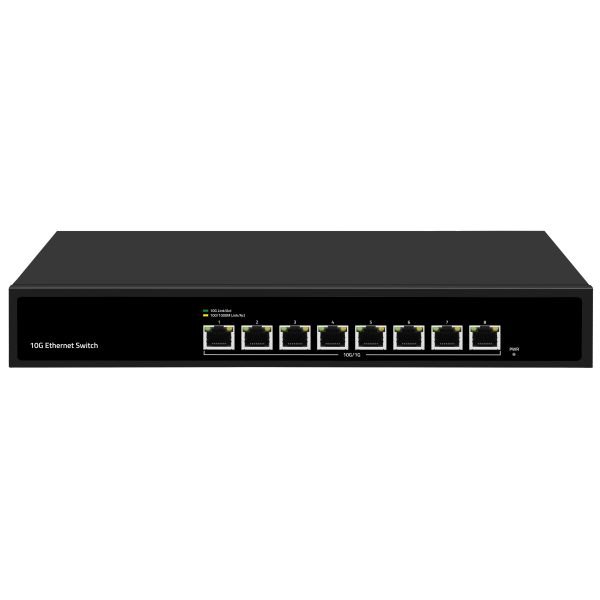

Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
Specifications
Brand Name :
Olycom
Model Number :
OM08X0GE
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
2000Pcs per month
Delivery Time :
4~8 working days
Packaging Details :
1 piece in a box, Gross weight of product: 2.12KG
Product Name :
8-Port 10G Network Switch
Network Speed :
100M/1G/2.5G/5G/10G
Feature :
Unmanaged, Non-PoE
Power Input :
AC100V~240V
Description

Olycom 8 Port Full 10G Ethernet Switch

Features of Network Switch

  • 8*10G Ethernet ports.
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 bz, IEEE 802.3 ae, IEEE 802.3. x, IEEE 802.3az.
  • Ethernet ports support 100/1000M/2500M/5G/10G self-adaptive.
  • Support port automatic MDI/MDIX.
  • Panel indicators monitor operating conditions and assist in fault analysis.
  • Flow control mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex.
  • Support surge protection: Common mode 6KV, class C; ESD: air 8KV, contact 6KV, class C.

Technical Specification of Commercial LAN Switch

Technical Specification
I/O Interface AC100-240V 50/60Hz
Ethernet 8* 10G Ethernet ports
Chip Scheme RTL9303+RTL8261N
Performance
Exchange capacity 160Gbps
Packet Forwarding Rate 119.04Mpps
RAM 128 MByte
Flash Memory 16MByte
Memory Cache 12MBit
Mac Address Table 16K
Jumbo frame 12Kbyte
Standard
Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3az (Efficient and energy-saving Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

IEEE802.3 bz (2.5G/5G Ethernet standard)
Industry standards

EMS: EN61000-4-2 (ESD),

EN61000-4-5 (Surge)
Network Medium

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

10000Base-TX : Cat7 or above UTP(≤100m)
Certification
Safety certification CE, FCC, RoHS
Environment Standard
Working environment

Working temperature: - 10~50 ° C

Storage temperature: - 40~70 ° C

Working humidity: 10%~90%, non condensing

Storage humidity: 5%~95%, non condensing

Functional indication
Power light PWR(Power indication)
PWR (Power light)

On: Powered on

Off: Powered off

Port LED light (green)

On: 5G/10G link connection is normal

Flashing: Data transmission is normal

Off: Link not working
Port LED (yellow)

On: 100/1000M link connection is normal

Flashing: Data transmission is normal

Off: Link not working
Physical specifications

Structure size

Product size: 320* 207* 45mm

Package size: 370* 290* 85mm

Net weight of product: 1.72KG

Gross weight of product: 2.12KG
Packing information

Outer box size: 445* 310* 390mm

Packing quantity: 5 Pcs

Packing weight: 11.6KG
Supply voltage

Working voltage: AC100-240 V, 50/60Hz

Power supply: 12V8A
Power Maximum 38.6W

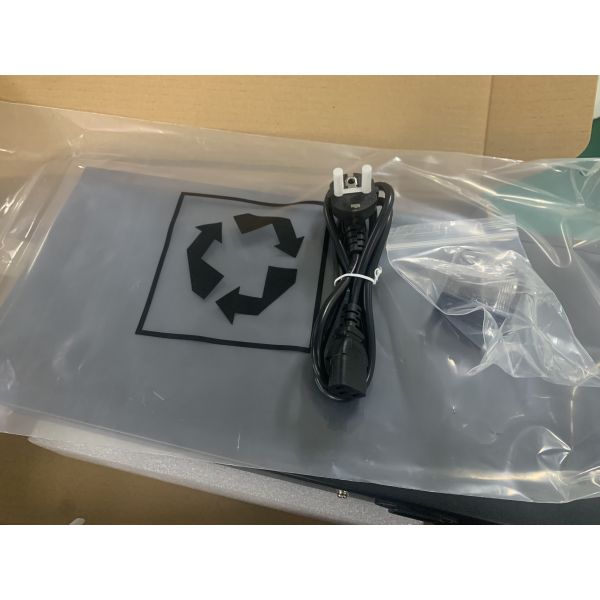

Packing list 1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ears

Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility

  • The switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding.
  • It is configured with 8* 10G Ethernet ports, which supports 100/1000M/2500M/5G/10G adaptive rates.
  • It adopts a storage and forwarding mechanism, and internally integrates a high capacity cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations.
  • With a sturdy and durable and high strength fan steel shell design, the efficient heat dissipation ensures stable operation of the product.
  • The switch can be widely used in security network video monitoring, hotels, campuses, large and medium-sized. enterprise network engineering, and other fields.

Unmanaged Rack Mounted 10G Ethernet Switch with AC100V-240V Power Input and 1G/2.5G/5G Compatibility
