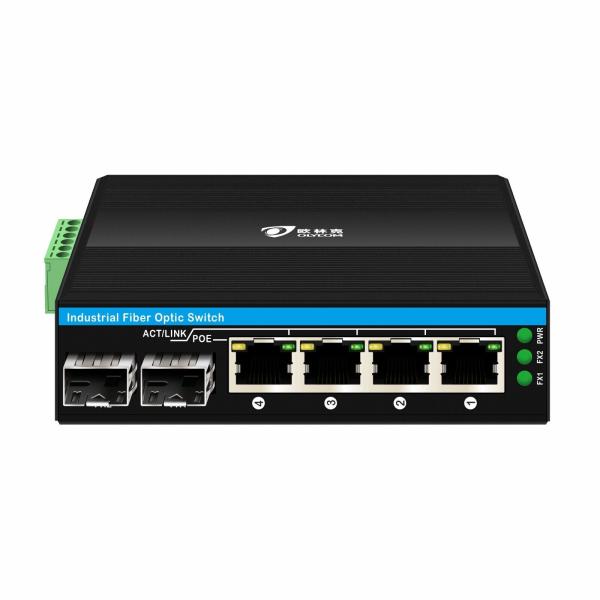

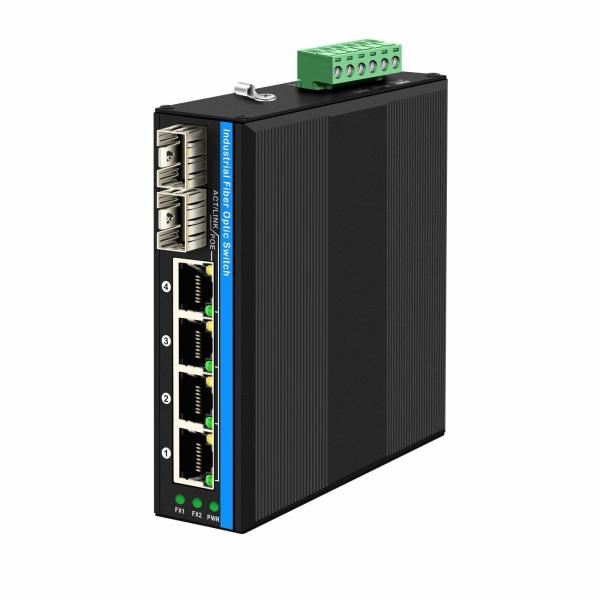

6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input
Specifications
Brand Name :
Olycom
Model Number :
IM-FP244BGE
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
3000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product name :
DC12V/24V Din-rail poe switch
Surge protection :
±6KV
Port :
4RJ45+2SFP
Installation :
Din-rail/Wall mounting
Power Budget :
120W
Description

6 Port Gigiabit unmanaged Ethernet Switch

Din rail network switch DC12V/24V Input


Key Features of Industrial Network Switch

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at/bt power on to 1 ~ 4 RJ45 ports
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000Mbps SFP fiber port
  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard,
  • half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c

6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input

Specificaiton of 6 port Gigiabit Poe Switch

Product Name 10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP)
Model No. IM-FP244BGE
Port

2x 100/1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: DC12V/24V

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)
Environment

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4
Safety

CE Mark ,commercial

CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method:Din-rail mounting
Warranty 3 years

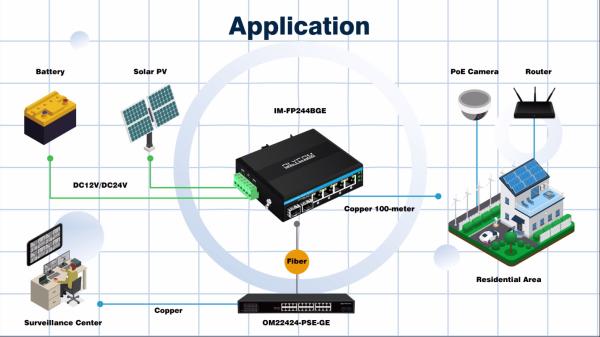

Application

6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input


Ordering Details:

IM-WP054BGE
1*100M/1000M Copper Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input
WebManaged Features are available
IM-FP144BGE
1*100M/1000M SFP Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input
Web Managed Features are available
IM-FP244BGE
2*100M/1000M SFP Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 120W PoE budget, DC12V/DC24V input
Web Managed Features are available


FAQ:

Q: Do you also offer accessories?

A: Yes, we also supply SFP transceiver, power supply and network cables, as a solution kit.

Q: Can Iconnect it with a non-PoE device?
A: Yes, it is 4*auto-sensing PoE ports detecting if the connected devices support PoE or not. There will ONLY be network transmission if it is not 802.3af or 802.3at compliant.
Q: Is it managed?
A:This model supports some web managed features such as VLAN, QoS, RSTP, Port Isolation...
Q: Where can I use it?
A: Below are some typical application examples. Solar power system(DC12V input) RV/Vehicle/Truck/Bus(DC12V input) VolP/Access control systems(DC24V input)
