Specifications
Brand Name :
Olycom
Model Number :
IM-WPD054GE V3
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
3000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Product name :
ethernet extender outdoor
PoE Ports :
1-4 Port Support PoE 30W
PD input :
port 5, 30W/60W/90W
Surge protection :
±6KV
Warranty :
3 years
Description

1000mbps 4 port poe extender af/at/bt 30w/60w/90w

1 Port 802.3bt PoE++ to 4 Port 802.3af/at

ethernet extender outdoor



Introduction of POE Extender

IM-WPD054GE series is the 10/100/1000 Mbps industrial PoE/PD Ethernet switch enjoying below features

  • Port 5 acts as PD power receiving port(typically 30W/60W/90W)
  • Port 1~4 comply with IEEE802.3af/at standard
  • Power on PoE IP cameras through the Ethernet cable
  • Power range up to 100 meters
  • Operating temperature -40℃ to + 75℃
  • Meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail installation
  • Pass through dangerous environmental certification
  • Comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specificaiton of 5port Gigiabit Poe Switch

Product Name 10/100/1000Mbps Industrial PoE/PD Ethernet Switch(5TP)
Model No. IM-WPD054GE
Port 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(POE)

IEEE 802.3at 30W(POE+)

IEEE 802.3bt 90W(POE++)
Switching features

Transmission mode: Storage and forward

Forwarding delay: <10us

System bandwidth: 10Gbps(non-traffic jam)

Forwarding rate: 14.88Mpps

MAC: 2K

Packet buffer size: 1.75Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, network

PWR: Power

Copper orange: Speed indicator

On:Working speed is 1000Mbps

Off:Disconnected or working speed is 10/100Mbps

Copper green: Link/Act indicator

On:transmission is normal

Blinking: in transmission

Off:transmission is NOT normal
Power supply

Single PoE input power: 30W/60W/90W(port 5)

Single PoE output power: 15.4W/30W(port 1~4)

Single PoE output voltage: DC48V(port 1~4)
PoE wiring

PoE af/at: 1/2 (V+), 3/6 (V-)

PoE bt: 1/2 (V+), 3/6 (V-), 4/5 (V+),7/8 (V-)
Environment

Working temperature: -40°～75°C

Storage temperature: -40°～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD:IEC61000-4-2,±15KV air, ±6KV contact

EFT:IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5,Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014
Mechanical information

Shell: Corrugated metal shell, Safety class: IP40

Dimension: 114*93*35mm, Mounting method: Din-rail/Wall mounting
Warranty 3 years

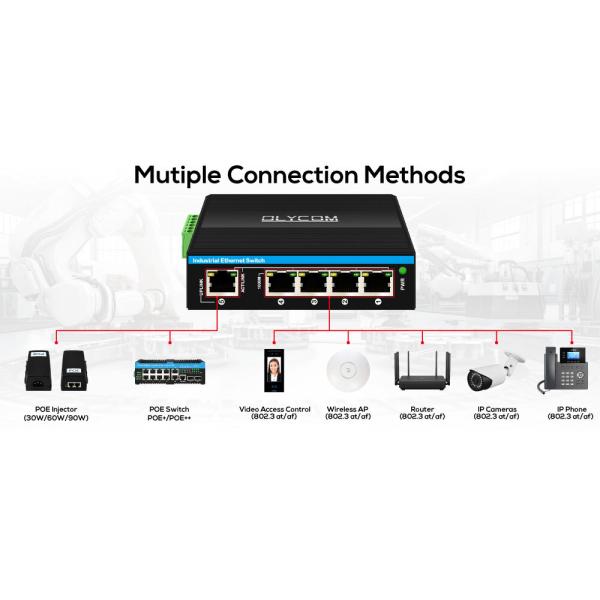

Application

1000mbps 4 port poe extender af/at/bt 30w/60w/90w 1 Port 802.3bt PoE++ to 4 Port 802.3af/at ethernet extender outdoor


Ordering Details

IM-WS050GE

Industrial Ethernet Switch

5*100/1000M, Unmanaged, Non-PoE, DC12V~DC52V dual input

Ideal in vehicle network or industrial automation system
IM-WP054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC48V~DC52V dual input

Remark: PoE bt*60W is optional

Ideal in CCTV security system
IM-WP054BGE

Industrial PoE Switch

5*100/1000M, Unmanaged, PoE af/at for port 1~4, 120W budget, DC12V~DC48V dual input

With internal power booster

Ideal in solar power system

IM-WPD054GE

Industrial PoE Switch

5*100/1000M, Unmanaged, 1*PD port(30W/60W/90W)+PoE af/at for port 1~4

No need to use extra power supply

Ideal in CCTV security system


FAQ:

1. Q: Does this industrial 4-port PoE extender support 24VDC power output?
A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.
A PoE splitter is required if you need to connect a 24VDC based PD device.

2. Q: Is it a managed industrial network switch?
A: It is unmanaged industrial PoE switch and no need any setting, plug and play, easy to use.

3. Q: Can I use it with one Non-PoE devices?
A: Yes, sure. If one Non-PoE devices is connected with this industrial 5port PoE switch.
The industrial 5 port PoE switch will provide data only, and don't provide power any more.

4. Q: Can it work with 10/100Mbps devices?
A: Yes, Ethernet port speed is auto-adaptive, it is seamless connection with extra settings.
