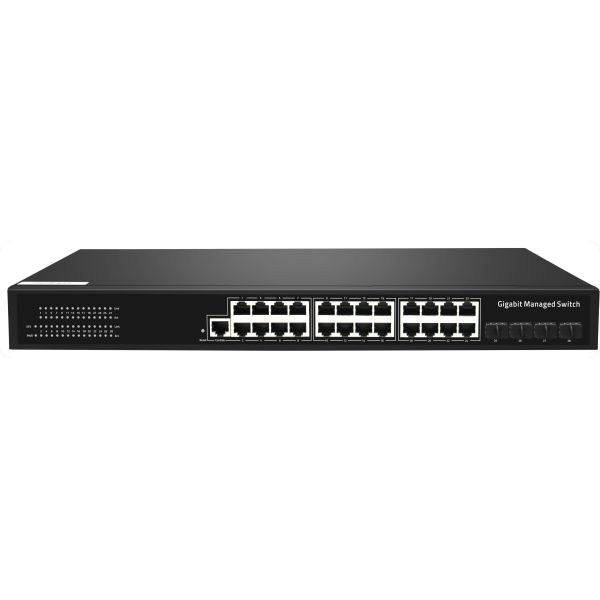

24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade
Specifications
Brand Name :
Olycom
Model Number :
OM42400GW
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
2000Pcs per month
Delivery Time :
4~8 working days
Packaging Details :
1pc in a carton, 3.06Kg/pc gross weight
Product name :
24 Port Managed Fiber Switch
Fiber Speed :
1G based
Copper Speed :
10/100/1000Mbps
Feature :
L2 managed, non-PoE
Power Input :
AC100V~AC240V
Chipset :
Realtek
Description

28 Port Full Gigabit 24 Port Ethernet Managed Fiber Switch

Features of Gigabit Network Switch

  • Support 24* Gigabit Ethernet Ports+ 4* Gigabit SFP Ports+1* Console Port
  • SupportIEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, Storage and forwarding
  • Ethernet ports support 10/100/1000M adaptive
  • Adopt store-and-forward switching mechanism
  • Fanless design, natural Cooling, 1U Rack Mount
  • Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
  • Support WEB, TELNET, CLI, SSH, SNMP, RMON management

Technical Data of 24 Port Fiber Switch

I/O Interface
Power AC INPUT (100-240V)
Ethernet

24* Gigabit Ethernet Ports

4* Gigabit SFP Ports

1* Console Port
Performance
Bandwidth 56Gbps
Packet Forwarding Rate 41.66Mpps
Package Cache 4Mbit
DDR SDRAM 128Mbyte
Flash Memory 16Mbyte
MAC Address 8K
VLANs VLAN range 1-4094, with a maximum active VLAN of 256
Jumbo Frame 10Kbytes
Transfer Mode Storage & Forwarding
Standard
Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Rapid Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet Optic Fiber)

IEEE802.3x (Flow Control)

IEEE 802.3az(Energy-efficient Ethernet)

IEEE 802.3ad(Link aggregation)

IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol STP

IEEE 802.1w Rapid Spanning Tree Protocol RSTP

IEEE 802.1s Multiple Spanning Tree Protocol MSTP

IEEE 802.1Q(Virtual LAN)

IEEE 802.1p (VLAN Label)

IEEE 802.1X (User authentication)

Optical Medium

Multi-mode fiber: 50/125, 62.5/125, 100/140um

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um

Network Medium

10Base-T: Cat 3, 4, 5 or above UTP(≤100m)

100Base-TX: Cat 5 or above UTP(≤100m)

1000Base-TX: Cat 5 or above UTP(≤100m)
Certification
Safety Certification CE, FCC, RoHS
Environment Standard
Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%,non-condensing

Storage Temperature: 5%~95%,non-condensing
Function Indicator
Indicator PWR(Power Indicator); SYS(System Light); Link/Act(Link & Data)
PWR

On: Powered On

Off: Powered Off
SYS

Off: System Off

On: System On
Link/ACT

On: No Data

Flashing: Data Transmit

Off: Link Connection Blocked
Physical Specification
Structure Size

Product Size: 440*204*44mm

Package Size: 500*290*85mm

Product N. W: 2.45kg

Product G. W: 3.06kg
Packing Info

MEAS: 520*445*310MM

Packing Qty: 5PCS

Packing Weight: 16.3 KG
Power Voltage

Machine Input Voltage: AC 100-240V;

Built-in power output: DC12V3A
Power Maximum 36W
Package List

Switch: 1PCS;

Power cable: 1PCS;

Serial cable: 1PCS;

Instruction manual: 1PCS;

Certificate of quality: 1PCS;

Warranty card: 1PCS;

Mounting ear: 1 Pair

Software Function

L3 Function
IPv4 IPv4 VLAN Interface
IPv4 Static Routes
ARP
IPv6 IPv6 VLAN Interface
IPv6 Static Routes
IPv6 ND

L2 Function
Port Port Switch
Port Description
Port Speed
Port Duplex
Port Flow Control
Jumbo, Up to 10K
EEE
Fiber Module(DDM)
Link Aggregation Supports load balance policy;
Base on MAC and IP-MAC
Static and Dynamic Group
Supports LACP
Up to 8 groups
Storm Control Boardcast
Unknown Multicast
Unknown Unicast
Port Mirroring One to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port Security MAC Address Constraints
Port Security MAC Address
Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN Access/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
Congurable VID from 1 - 4094;
Max. 256 static VLAN groups
Voice VLAN
MAC VLAN
Surveillance VLAN
Protocol VLAN
GVRP
MAC Address Dynamic Address
Static Address
Filtering Address
Spnning Tree Protocol STP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
LLDP LLDP
LLDP MED
Multicast IGMP Snnoping
IGMP V1/V2/V3
Router Port
Static IGMP group address
IGMP groups filtering
Querier
MLD Snooping
MVR
QoS Traffic classification based, Strict priority and WRR
Port Priority
802.1P Priority
IP TOS Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remarking
Services
DHCP DHCP Server
IP Pool
Static Binding
DHCP Relay
Access Protocol HTTP
HTTPS
Telnet
SSHv2
Manager ACL
Session Timeout
Password Retry Count
Silent Time
Security
AAA RADIUS
TACACS+
802.1X
Base on port/MAC/local/WEB
DHCP Snooping Global/VLAN
Option 82
Circuit ID
IP Source Guard
Dynamic ARP Inspection
DoS
ACL MAC ACL
IPv4 ACL
IPv6 ACL
Diagnostics
Syslog Logging Message
Remote Server
Ping
Traceroute
Copper Test
UDLD
Management
Manager Access Console
HTTP/HTTPS
Telnet
SSH
SNMP
Manager IP Static Address
DHCP Client
Supports IPv4 and IPv6 address
Manager VLAN
DNS
Time Synchronization SNTP
Manual Time
SNMP V1/V2C/V3
Community
V3 User
Group
Trap Host
SNMP MIB RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2863 Interface MIB
LLDP
Private MIB
RMON Statistics
History
Event
Alarm
User
Firmware Firmware Upgarde
Configuration Upload and download
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2

24 Port Gigabit Managed Switch With 1G Fiber Uplink Layer 2 Managed Commercial Grade

Description of Commercial Managed Switch

Olycom 28-Port Managed Gigabit Ethernet Switch features as below

  • black iron shell design
  • built-in DC 12V Power supply
  • light and simple
  • With LED indicator on the pane
  • can dynamically display the connection and operation of equipment
  • provide simple fault detection methods, and facilitate maintenance and management
  • provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.
  • The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to the full duplex or half duplex mode
  • The MAC address self-learning function ensures error free data transmission
  • The store and forward mode prevents the damaged packets from flooding in the network
  • The flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/Mdix auto flip function, non-blocking line speed transmission of all ports.

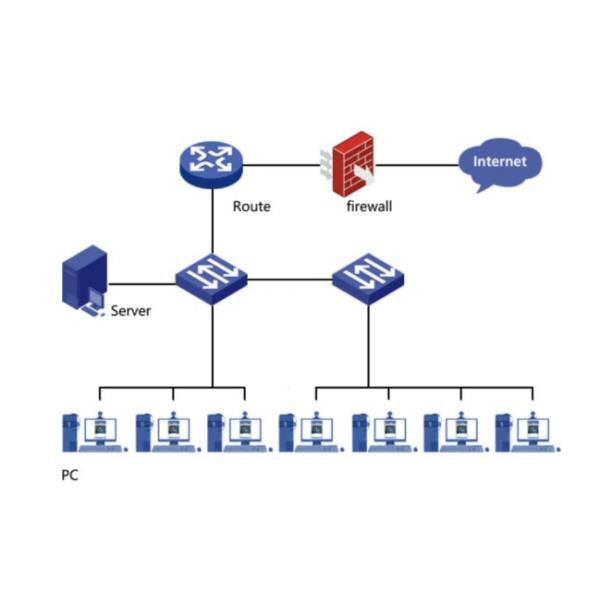

  • It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.;
  • It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.
