Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Security Wire Mesh Fence Panels , Galvanized Welded Wire Mesh Thick Zinc Coating
Specifications
Brand Name :
XMESH
Model Number :
QJ-522
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
10000 pcs one month
Delivery Time :
15-25days
Packaging Details :
loose packed or with steel pallets
Material :
Galvanized steel wire
Wire diameter :
4.0 mm
Mesh :
13 x 76 mm
Finish :
Galvanized
Color :
Silver
Size :
2.5 x 1.8 m, 2.5 x 2.1 m
Description

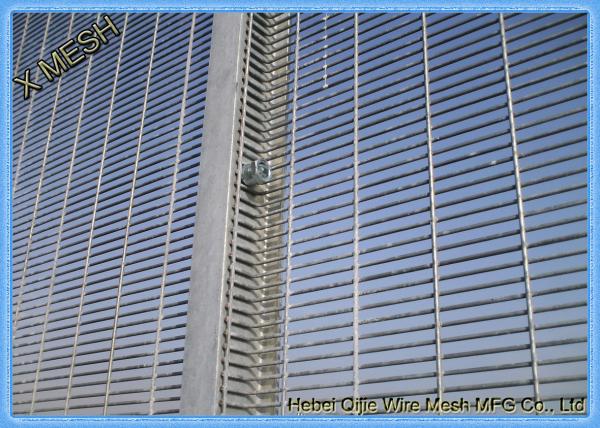

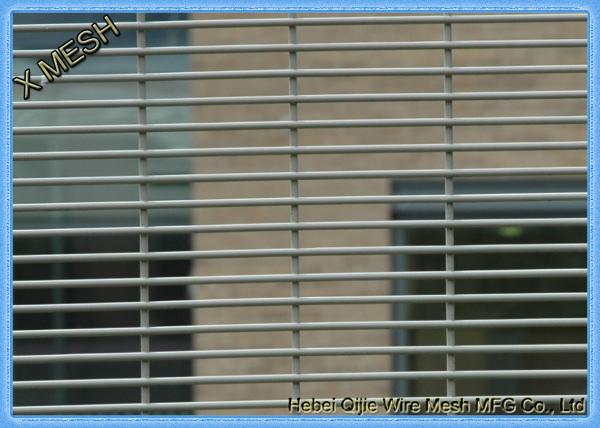

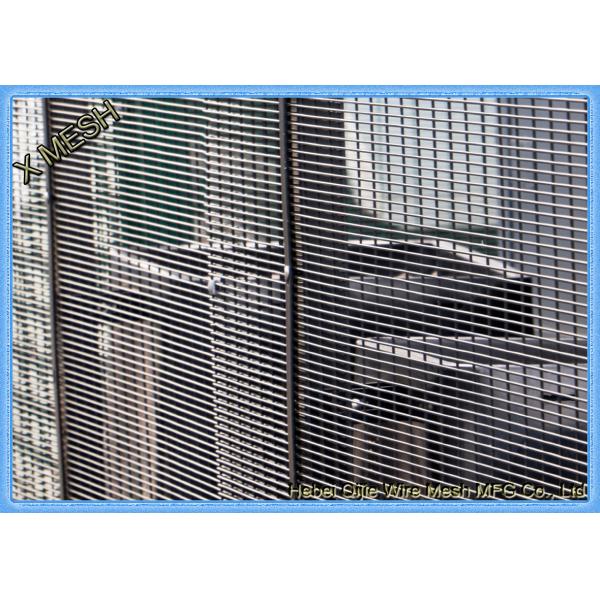

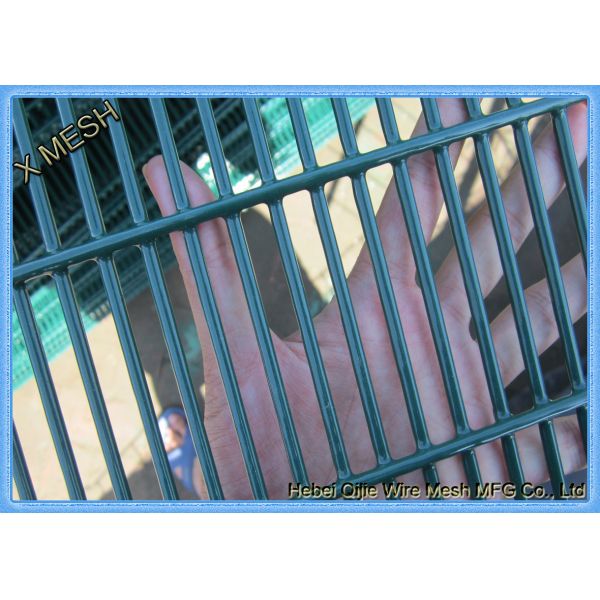

Galvanized Welded 358 Security Mesh Fence Panels with Thick Zinc Coating

Product descriptions

For this type of fence, 3 and 5 means 3 x 0.5(1/2) inch holes, plus # 8 gauge (4.0 mm) wire, we call it 358 security mesh fence. Where the application specifically demands a heavy duty security mesh design to meet specifications including the use of CCTV, or where a visual deterrent is a primary consideration, 358 Security Mesh system provides an ideal solution for a wide variety of high security perimeter and access control applications.

The climb resistant mesh (sometimes referred to as prison mesh or 358 mesh) with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.

  • Posts can be customised for Barbed wire / Razor wire / Spike
  • Overlapped by a minimum of 75mm at posts to maintain integrity of protection
  • Anti-climb design
  • Vertical pale spacing conforms to building regulations for anti-trap
  • Clamp bar fixings
  • Can be stepped to accommodate sloping ground
  • Custom designs available

Finishes

  • Panels are Galfan zinc alloy coated as standard
  • Powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or estuary

Specification

Height

(mm)

Post Centres

(mm)

Post Dimensions

(mm)

Overall Post Length

(mm)
1270 2440 80 x 60 1900
2134 2440 80 x 60 2900
2440 2440 80 x 60 3300
3000 2440 80 x 60 3800
4200 2440 120 x 120 square 5100
5210 2440 150 x 150 6200
