Specifications
Brand Name :
XMESH
Model Number :
QJ-442
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
5000 rolls per month
Delivery Time :
15-25days
Packaging Details :
With wooden box
Material :
Mild wire
Wire diameter :
0.2 - 0.8 mm
Hole shape :
Rectangular, square
Roll width :
0.9 m, 1.2 m, 1.5 m, 1.8 m
Technic :
Welded mesh
Roll size :
1.0 x 30 m, 1.2 x 30 m, 1.5 x 30 m, 1.8 x 30 m
Description

Hot Dipped Galvanized after Welded Wire Mesh Roll with 0.9 x 30 m Roll for Fencing

Product descriptions

Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.

Hot-Dipped galvanized welded wire panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.


This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application.

Hot-Dipped galvanized welded wire mesh photo:

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

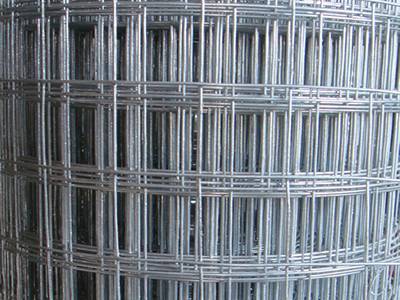

HGW-01: Hot-Dipped galvanized welded wire mesh roll

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

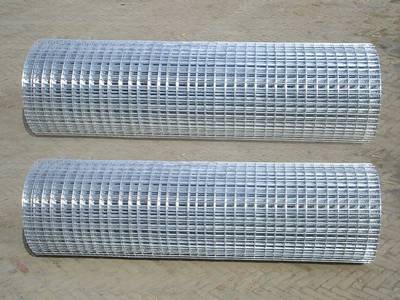

HGW-02: Hot-Dipped galvanized welded wire mesh rolls

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

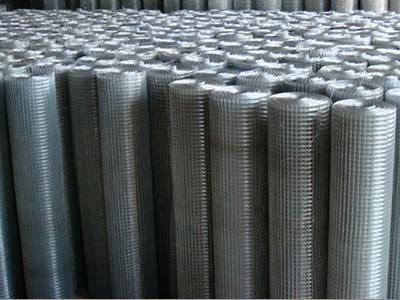

HGW-03: Hot-Dipped galvanized welded wire mesh rolls in stock

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

HGW-04: Hot-Dipped galvanized welded wire mesh with bright color

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

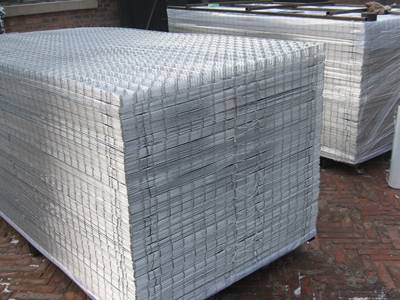

HGW-05: Hot-Dipped galvanized welded wire mesh panels

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

HGW-06: Hot-Dipped galvanized welded mesh panels/sheets in plastic film package

Hot-Dipped galvanized welded wire specification:

  1. Hot dip galvanized welded mesh + PVC coating (Green 6005): 12.7 mm × 12.7 mm / wire diameter internal 0,.65 mm - coated 0.90 mm / roll height 100 cm / roll length 5 m.
  2. Hot dip galvanized mesh (galvanized after welding): 12.7 mm × 12.7 mm / wire diameter 0.65 mm / roll height 50 cm / roll length 5 m.
  3. Hot dip galvanized mesh (after weaving) + PVC coating (Green 6005): mesh 25 mm / wire diameter internal 0.80 mm - coated 1.00 mm / roll height 50 cm / roll length 10 m.
  4. Hot dip galvanized mesh (galvanized after weaving): mesh 13 mm / wire diameter 0.70 mm / roll height 50 cm / roll length 10 m.

Technology info:

  • Diameter: 0.65 +/- 0.025 mm.
  • Zn-coating: min. 20 g/m2.
  • Tensile strength: 300-450 N/mm2.
  • Elongation: min. 15% .
  • Carbon: max . 0.10%.
  • Make-up: 150 kg coils with an internal dia. of +/- 270 mm and an external dia. of +/- 450 mm.
Mesh size Wire gauge diameter
in mm in inch BWG No. mm
6.4 1/4 24-22 0.56- 0.71
9.5 3/8 23-19 0.64 - 1.07
12.7 1/2 22-16 0.71 - 1.65
15.9 5/8 21-16 0.81 - 1.65
19.1 3/4 21-16 0.81 - 1.65
25.4 × 12.7 1 × 1/2 21-16 0.81 - 1.65
25.4 1 21-14 0.81 - 2.11
38.1 1 1/2 19-14 1.07 - 2.11
25.4 × 50.8 1 × 2 17-14 1.47 - 2.11
50.8 2 16-12 1.65 - 2.77
50.8 to 305 2 to 12

GI square wire mesh specification:

Mesh Width length Weight
16 × 16 3 ft. × 100 ft. 24.75 kg/roll
16 × 16 4 ft. × 100 ft. 33 kg/coil
16 × 16 4 ft. × 100 ft. 41.25 kg/coil
16 × 16 5 ft. × 100 ft. 18 kg/coil
40 × 40 1 mtr × 100 ft. 20 kg/coil

We have hot galvanized welded wire mesh in large stock:

Hot zinc welded wire mesh Hot-dip Galvanized welded wire mesh
20 mm × 20 mm × 1.0 mm × 1 m × 30 m 6 kgs 20 mm × 20 mm × 1.0 mm × 1 m × 30 m 16 kg
25 mm × 25 mm × 1.8 mm × 1 m × 30 m 20 mm × 20 mm × 1.00 mm × 1 m × 30 m 16 kg
50 mm × 50 mm × 1.80 mm × 1.5 m × 30 m 30 kgs 50 mm × 50 mm × 1.80 mm × 1.5 m × 30 m 30 kg
50 mm × 25 mm × 1.60 mm × 1 m × 30 m 21 kgs 50 mm × 25 mm × 1.60 mm × 1 m × 30 m 21 kg
50 mm × 25 mm × 1.80 mm × 1.5 m × 30 m 48 kgs 50 mm × 25 mm × 1.80 mm × 1.5 m × 30 m 48 kg

Mesh Thickness Height
mm mm cm
Galvanized welded wire mesh (galvanized after weaving) hot dip galvanized wire 06 × 06 0.65 50-150
13 × 13 0.90
13 × 25 1.45
19 × 19 1.45
25 × 25 1.75
Galvanized welded wire mesh (galvanized before weaving) hot dip galvanized wire 13 × 13 1.40 50-200
13 × 25 1.50
19 × 19 1.50
75 × 13 1.90
50 × 25 1.90
50 × 50 1.90, 2.80
PVC welded mesh (hot dipped) 13 × 13 1.20 50-200
19 × 19 1.20, 1.40
25 × 25 2.30

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

Galvanized welded wire mesh rolls

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

hot dipped galvanized welded wire mesh rolls

Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M Roll

galvanized welded wire mesh rolls
