200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48X100 Anti Corrosion
200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48X100 Anti Corrosion
200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48X100 Anti Corrosion
200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48X100 Anti Corrosion
Specifications
Brand Name :
Xmesh
Model Number :
QJ-0200
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
100rolls per month
Delivery Time :
15-25days
Packaging Details :
Wood case or pallets
Certification :
SGS
Mesh :
200mesh
Size :
48" x 100"
Material :
stainless steel Alloy wire 304
Weave :
Plain Weave
Diameter: :
0.023mm-0.100mm
Material: :
ASI304,AISI304L,AISI316,AISI316L
Description

200mesh Plain Weave 304 Stainless Steel Alloy Wire Mesh 48" x 100"

Stainless 310/1.4841 wire mesh is suited for applications requiring high strength and excellent oxidation resistance. The maximum safe temperature is about 2000°F, but is successfully used up to 2100°F under certain conditions. Preforms well under intermittent heating and cooling.

Plain Weave of stainless steel 310 wire mesh :Twilled Weave,Dutch Weave, Welded Weave, Knitted Weave.

Characteristics of stainless steel 310 wire mesh: Corrosion Resistant Heat Resistan.

Application of stainless steel 310 mesh :Filters, Strainers & More, Industrial Wire Baskets, Vibrator Screens, Guards & Security Reinforcemen.

(1) Material:ASI304,AISI304L,AISI316,AISI316L

(2) Mesh Count: 2mesh/inch to 400mesh/inch
(3) Diameter: 0.023mm-0.100mm
(4) Weaving: plain weave, twill weave, dutch weave
(5) Width: 1m, 1.2m, 1.5m,2m, at your request.
(6) Standard Length per Roll:30m/roll: 50m/roll at customers' request Packing: in waterproof
paper and pvc bag.custom packing avaliable at request.
(7) Characteristics: acid resistant, alkali resistant, heat resistant, corrosion resistant.

Specification:

Stainless Steel Woven Wire Mesh( Plain Weave)
mesh/inch wire diameter
mm		 aperture
mm		 mesh/inch wire diameter
mm		 aperture
mm
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385
Stainless Steel Wire Mesh( Dutch Weave)
Mesh Wire Dia. (MM) Material (AISI)
12mesh x 64mesh 0.58 x 0.40 304 or 316
24mesh x 110mesh 0.36 x 0.25 304 or 316
14mesh x 88mesh 0.50 x 0.33 304 or 316
30mesh x 150mesh 0.18 x 0.14 304 or 316
40mesh x 200mesh 0.14 x 0.11 304 or 316
50mesh x 250mesh 0.10 x 0.071 304 or 316
80mesh x 700mesh 0.06x 0.05 304 or 316
165mesh x 800mesh 0.071 x 0.040 304 or 316
165mesh x 1400mesh 0.05 x 0.032 304 or 316
200mesh x 1800mesh 0.05 x 0.03 304 or 316
325mesh x 2300mesh 0.030 x 0.025 316L
400mesh x 2800mesh 0.030 x 0.02 316L

200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48

200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48

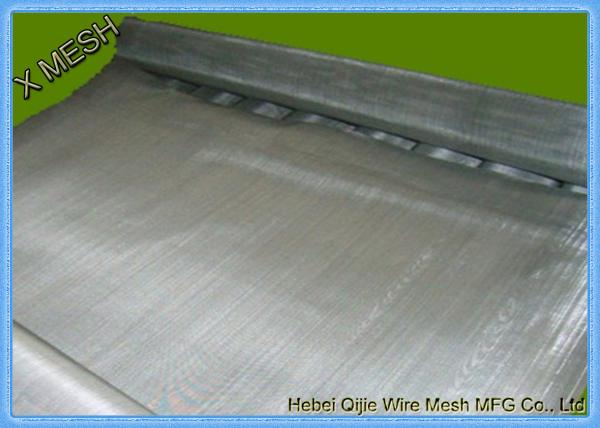

304 Stainless Steel Alloy Wire Mesh-001

200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48

304 Stainless Steel Alloy Wire Mesh-002

200mesh Plain Weave 304 Alloy Stainless Steel Screen Roll 48

304 Stainless Steel Alloy Wire Mesh-003
