9" Diameter Round Stainless Steel Nail Plates Easy to Press Timber​

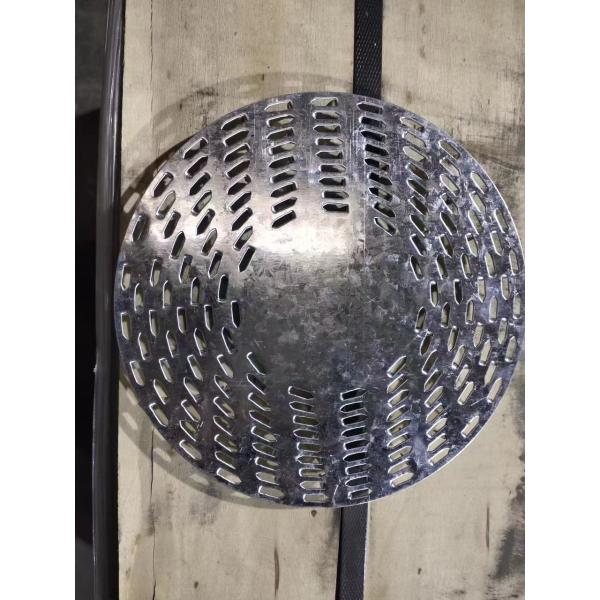

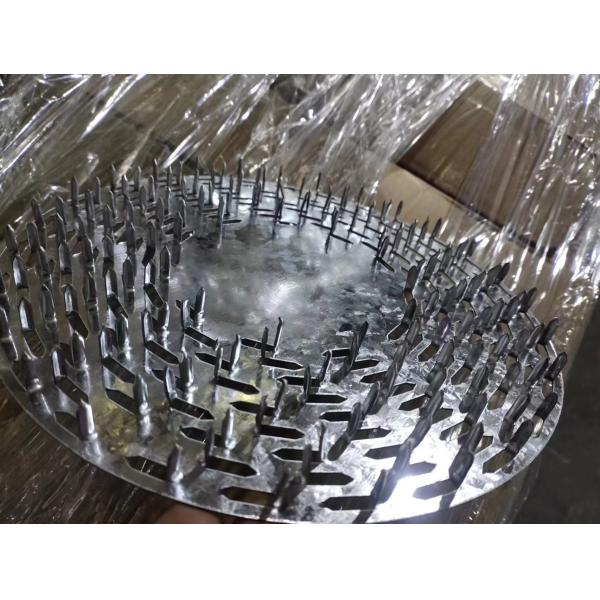

9" diameter Anti split plate is made by hot dipped plate. The diameter is 9".And we could produce the size and thickness by customer requiry.It is used to prevent split in hardwood poles and logs.. Timber naturally swells and shrinks as it weathers causing it to weaken. Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timber splitting while reducing tooth withdrawal.4" is mean the diameter is 4"(100mm).We could produce other size as follows

Specification:

Thickness: 1mm,1.2mm

Hole Dimensions: 13.5mm*3.5mm

Length of Spikes: 13.5mm

Size: 4",5",6",7",8",9",10" and so on

Detailed tables relating pole diameter, percentage coverage and anti-split plate size):

• 50mm diameter - covers poles 50 - 38mm in diameter
• 70mm diameter - covers poles 70 - 118mm in diameter
• 90mm diameter - covers poles 90 - 153mm in diameter
• 110mm diameter - covers poles 110 - 187mm in diameter
• 135mm diameter - covers poles 135 - 228mm in diameter
• 155mm diameter - covers poles 155 - 263mm in diameter
• 180mm diameter - covers poles 180 - 306mm in diameter
• 210mm diameter - covers poles 210 - 357mm in diameter

Specs

• Accepted by all CLASS 1 Railroads
• Are galvanized in accordance with ASTM A 924
• Are produced from laboratory certified structural steel (Grade 40 & 60)
• Are manufactured under strict, third party quality control measures

Feature:

Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timber splitting while reducing tooth withdrawal.
