High quality hot dipped galvanized steel grating mesh can customized

Product details

Material:Low cardon steel,mild steel,stainless steel

Surface treatment:Hot dipped galvanized,painting

Size:3'*20',3'*24',3'*30',1000mm*1000mm,1000mm*5800mm,1000mm*6000mm.

Application:Industrial platform,flooring and walkway,traffic,steel structure.

Packing details:pallets in containers by steek straps other worthy export packing,or according to your packing requirements.

Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,steel grating generally use carbon steel production,appearance of hot dip galvanized,can serve to prevent the role of oxidation,can also be made of stainless steel .

Standard for Steel Grating

A) China: YT/T4001.1-2007

B) U.S.A.: ANSI/NAAMM (MBG531-93)

C) U.K.: BS4592-1:1995

D) Australia: AS1657-1992

E) Japan: JJS

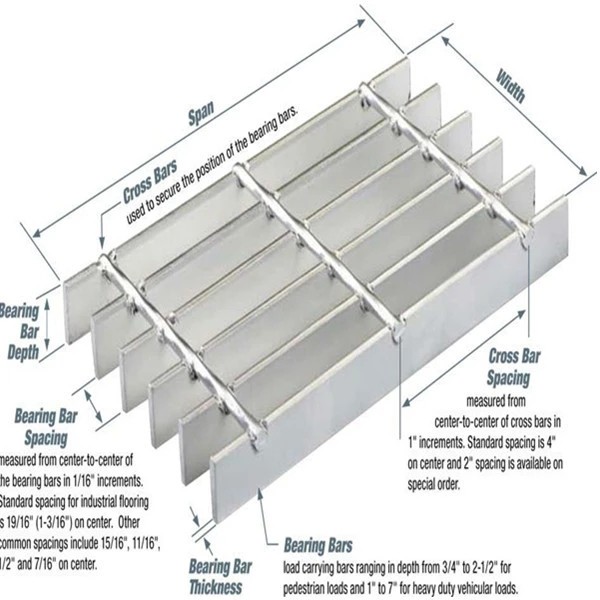

General information of steel grating

Bearing bar - A flat bar withstanding the main load is in consistent with the span direction .

bearing bar pitch - the distance center to center of the two bearing bars.

Cross bar - the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars .

Cross bar pitch - the distance center to center of the two adjacent cross bars.

Length (span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the baering bars .

Width - the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.

Type of Steel Grating

Common spesification :

Steel grating Surface Treatment

1.Hot dipped galvanized :According to GB/T13912-92 standard :the average zinc thickness is more than 610g/m²(flat bar ≥5mm) and 460g/m²(flat bar <5mm)

2.Painting :According to the clients' requirement, choose japanning dipped coating

3.No surface treatment

Steel grating application

Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc

Packing&shipping

Packed in bundle then fixed by steel belt onto metal pallets as the general export package and customers' requirement is accepted .
