Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Specifications
Brand Name :
XMESH
Model Number :
1/2"x1/2"
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
100rolls per week
Delivery Time :
15-25days
Packaging Details :
pallets
Material :
aluminum 5052
mesh openning :
1/2" x 1/2"
size :
1 x 20meters
wire diameter :
2mm
Diameter of the wire :
from 0.3mm -15mm
tensile length of the wire: :
1200MpA
width :
1.2m
length :
20m
Application :
Screen,Filters,Woven Wire Mesh,mining,rail road
Type :
Crimped Wire Mesh,Weave Wire Mesh
Description

CRIMPED WIRE MESH USED AS FENCE OR FILTER IN INDUSTRY

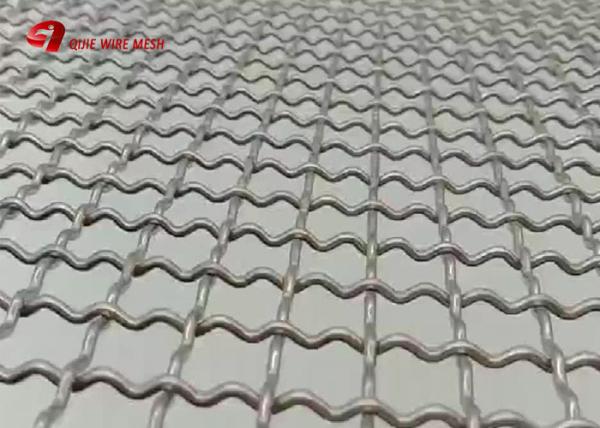

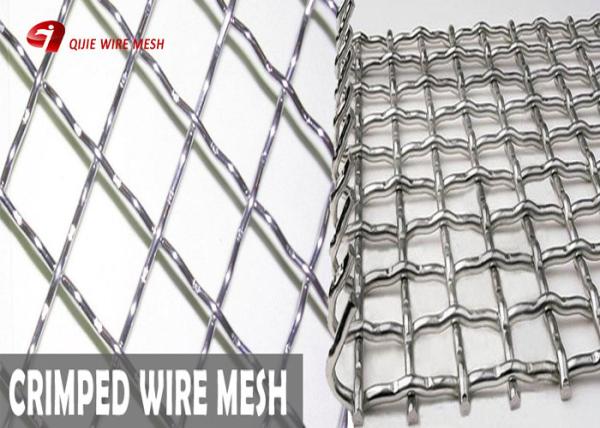

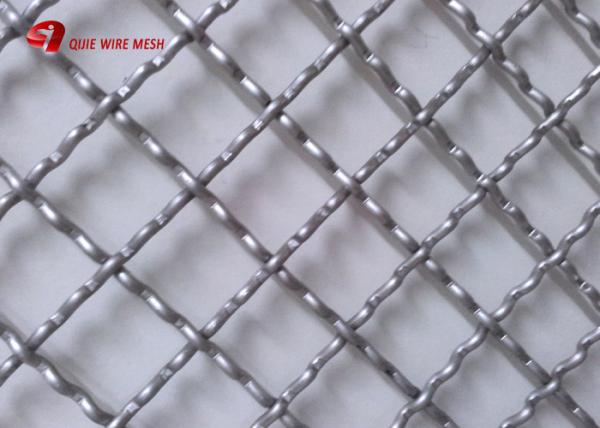

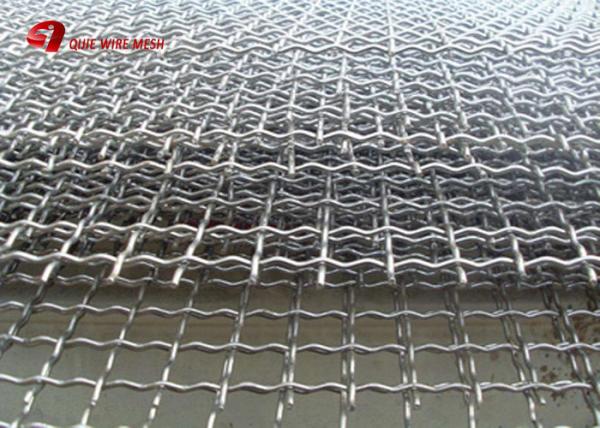

Crimped wire mesh can be also known as the iron crimped mesh, stainless steel crimped mesh and black iron crimped mesh according to different materials. It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type.

They enjoy the features of strong structure, loading capacity and keeping forms.

Crimped wire mesh products are used as fence or filter in a lot of industries. Heavy type crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Light type crimped wire mesh can be used to roast for food or meat. It has the advantage of heat resistance, corrosion resistance as well as nonpoisonous, tasteless and convenient for handling.

More information please contact us or see products list.

Hot Products:
SS 316 wire mesh, plain weave, crimped, 3mm × 1" aperture, 1m wide × 15m long.
Crimped mesh made by carbon iron 12 mesh / inch, wire diameter 0.8mm, width of mesh 1700mm. length 30m for testing.
Steel Wire Cloth for vibratory mining screen, with 4.76/15.87/50.80/76.20/101.60mm opening.
Aluminum crimped wire screen panel with 2 inch openings and 1/4 diameter mesh, used for fabricating into balcony rail fillers.
Plain weaving woven cloth with pre-crimped (warp and weft wire) mesh in hard hot-dip galvanized wire 8 mesh × 8 mesh × 0.70mm, 0.9m - 2.0m width.

Heavy type crimped wire mesh can be used for auto and semi-auto mining equipment.

Crimped Wire Mesh common specifications:
Diameter 1.0mm × mesh opening 8mm or 10mm.
Diameter 1.5mm × mesh opening 12.5mm, 15mm or 20mm.
Diameter 3mm × mesh opening 15mm, 20mm, 30mm.
Length and width specifications: 1m × 25m 1m × 30m 1.2m × 25m 1.2m × 30m.

Wire Gauge
SWG		 Wire Diameter
mm		 Mesh/Inch Aperture
mm		 Weight
kg/m2
14
2.0
21
1
4.2
8
4.05
18
1
15
25
0.50
20
0.61
2.6
23
0.61
18
0.8
3.4
24
0.55
16
0.1
2.5
24
0.55
14
0.12
4
22
0.71
12
0.14
2.94
19
1
2.3
0.18
1.45
6
4.8
1.2
2
20
6
4.8
1
2
20
6
4.8
0.7
3
14
14
2.0
5.08
0.3
12
14
2.0
2.1
1
2.5
14
2.0
3.6
1.5
1.9
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry

Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry

Aluminum 5052 Plain Weave Crimped Wire Mesh Use As Fence Or Filter In Industry
