Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Specifications
Brand Name :
XMESH
Model Number :
1/2"x1/2"
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
100rolls per week
Delivery Time :
15-25days
Packaging Details :
pallets
Material :
stainless steel
mesh openning :
1/2" x 1/2"
size :
1 x 20 meters
wire diameter :
2mm
Diameter of the wire :
from 0.3mm -15mm
tensile length of the wire: :
1200MpA
width :
1.2m
length :
20m
Application :
Theater, Stadium, Zoo, Exhibition Center
Type :
lock crimped wire mesh
Description

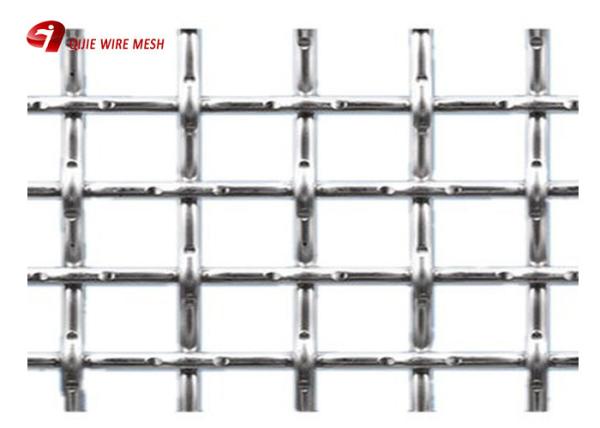

Architectural Woven Wire Locked Crimped Mesh In Stainless Steel

Stainless steel crimped wire mesh is one of the main stainless steel products of our company. The stainless steel crimped wire mesh is mainly used in sieving fields of industries. We can supply the Stainless steel, copper and steel crimped wire mesh.

Materials: stainless steel wire, high-carbon steel wire, medium or low carbon steel wire, iron wire, brass wire, any other special materials can be ordered according to the customers' requirements.

Weaving Methods: pre-crimping before weaving, in two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

Characteristics:
With stable structure and good strength, stainless steel crimped wire mesh is high temperature resistance, acid resistance, alkali resistance, abrasion resistance.

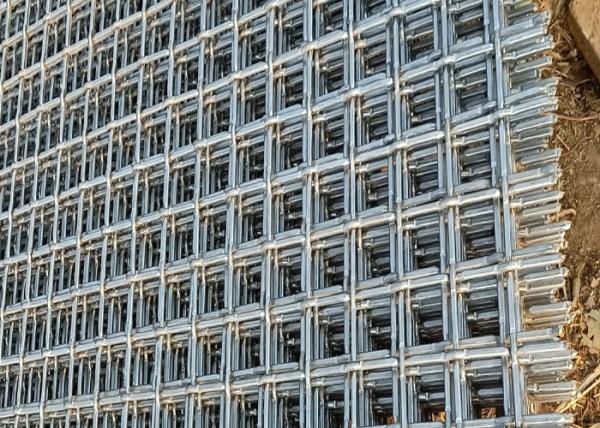

Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size

Specification of wire cloth infill panel:

  • Materials: stainless steel, mild steel, aluminum, iron, copper.
  • Hole shapes: square, rectangular.
  • Surface treatment: prime painted, galvanized, powder coated.
  • Colors: sliver, gray, white, black, blue, yellow, or other RAL colors.
  • Wire diameter: 0.02–2 mm.
  • Open area: 45% – 65%.
  • Technique: woven or welded.
  • Width of wire panel: 0.6–1.5 m.

Specification of stainless steel crimped wire mesh:

Material Stainless steel Opening Area 74%
Warp Diameter 2.75mm Mesh Thickness 4.8mm
Warp Pitch 19.75mm Surface clean &free oil
Weft Diameter 2.75mm Max Length 12mm
Weft Pitch 19.75mm Max Width 4m
Weight 4.86kgs/m2 Application Interior / Exterior

wire aperture open area weight kg
mm inch mm inch % stainless copper
1.5 0.059 10 0.394 75.61 2.48 2.80
1.5 0.059 12 0.472 79.01 2.12 2.39
1.6 0.063 10 0.394 74.32 2.80 3.16
2.0 0.079 10 0.394 69.44 4.23 4.77
2.0 0.079 15 0.591 77.85 2.99 3.37
2.6 0.102 15 0.591 72.64 4.88 5.51
3.0 0.118 25 0.984 79.72 4.08 4.61
3.5 0.138 25 0.984 76.95 5.46 6.16
4.0 0.157 19 0.748 68.24 8.83 9.97
4.7 0.185 25 0.984 70.85 9.45 10.67
4.8 0.189 19 0.748 63.73 12.29 13.88
4.8 0.189 25 0.984 70.38 9.82 11.09

Crimped wire mesh is used in the waste water, oil refining, mining, construction, safety and food processing industries for applications that require strength and large-hole filtering and screening. Pre-crimped wire cloth is also used in architectural and industrial design applications.

Usage:
As wire mesh for pig breeding, mine and stone works, glass factory, coal mine, petroleum, hardware products, etc.
Heavy duty crimped wire mesh products are mostly used as screen in mining, coal factory, construction and other industries.
Stainless steel crimped wire mesh is mainly used in foodstuff, mine, chemical industry, pharmacy, metallurgy, machinery, protection, construction, arts and crafts.

Features of wire cloth infill panel:

  • Durability. It has sound structure due to lots of woven methods.
  • Attractive appearance. With various colors and crimp styles.
  • Safety. With high strength and loading capacity.
  • Anti-corrosion. It is made of corrosion resistance material and with anti-corrosion surface treatments.
  • Easy to install and maintenance-free.

Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size

Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size Aluminum Crimped Wire Mining Screen Mesh Infill Panel For 1 X 20 Meters Size
