Specifications
Brand Name :
Qijie
Model Number :
QJ-R001
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 rolls
Price :
discuss
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
100 tons per week
Delivery Time :
15-20 days
Packaging Details :

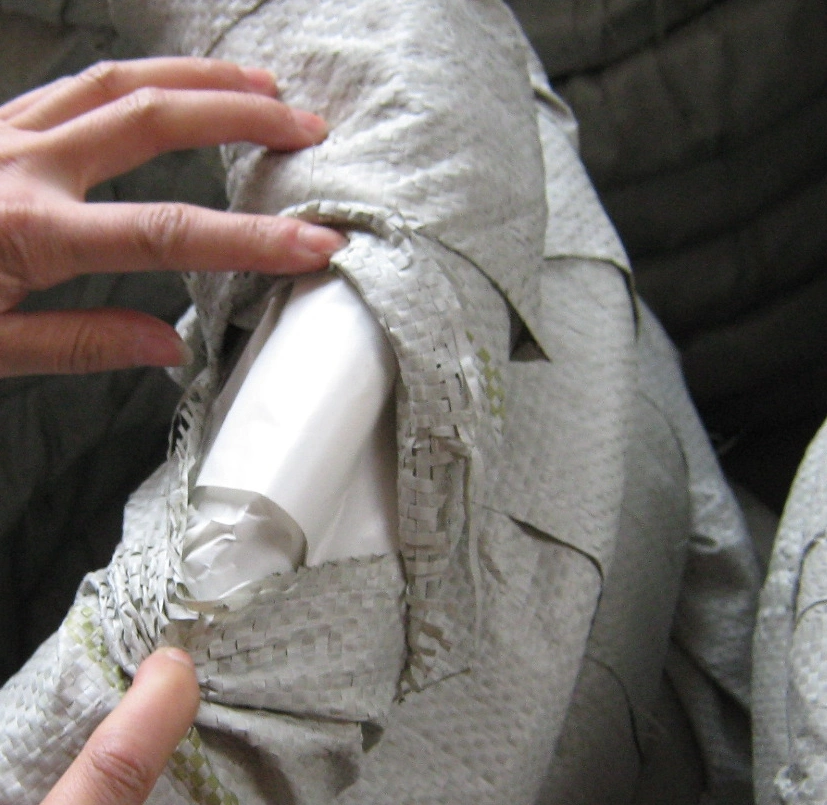

Woven bag outside,carton box etc
Barb Length :
10mm
Color :
Silver
Barbed Distance :
3"
Coil Outside Diameter :
960mm
Specification :
7-16m
name :
bto-22 cbt-60 cbt-65 concertina razor coil
Description

  • Product Description

    Galvanized PVC Coated Stainless Steel Bto-22 Cbt-60 Cbt-65 Concertina Razor Barbed Wire

    Razor Barbed Wire, Concertina Barbed Wire, Blade Wire, Razor Barbed Tape

    We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
    Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
    Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
    Concertina razor wire, razor barbed wire , mainly used for safety scope.

    Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized
    Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized
    Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized


    Specifications:
    Reference number Thickness Wire Dia Barb length Barb width Barb spacing
    BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
    BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
    BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
    BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
    BTO-28 0.5±0.05 2.5 28 15 45±1
    BTO-30 0.5±0.05 2.5 30 18 45±1
    CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
    CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2
    Specification of concertina razor wire
    Outside diameter No.of loops Standard length per coil Type Notes
    450mm 33 7-8M CBT-60.65 Single coil
    500mm 56 12-13m CBT-60.65 Single coil
    700mm 56 13-14m CBT-60.65 Single coil
    960mm 56 14-15m CBT-60.65 Single coil
    450mm 56 8-9m(3 clips) CBT-10.10.18.22.28.30 Cross type
    500mm 56 9-10m(3 clips) CBT-10.10.18.22.28.30 Cross type
    600mm 56 10-11m(3 clips) CBT-10.10.18.22.28.30 Cross type
    600mm 56 8-10m(5clips) CBT-10.10.18.22.28.30 Cross type
    700mm 56 10-12m(5 clips) CBT-10.10.18.22.28.30 Cross type
    800mm 56 11-13m(5 clips) CBT-10.10.18.22.28.30 Cross type
    900mm 56 12-14m(5 clips) CBT-10.10.18.22.28.30 Cross type
    960mm 56 13-15m(5clips) CBT-10.10.18.22.28.30 Cross type
    980mm 56 14-16m(5 clips) CBT-10.10.18.22.28.30 Cross type

    Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized
    Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil Galvanized
