Specifications
Brand Name :
qijie
Model Number :
QJ008
Certification :
SGS
Place of Origin :
China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000pieces
Delivery Time :
15-20days
Packaging Details :
pallets
Material :
Galvanized Iron Wire
Type :
Welded Mesh
Application :
Fence Mesh
Hole Shape :
Square
Wire Gauge :
2-12mm
Processing Service :
Welding
Surface treatment :
Hot Dipped Galvanized
Usage :
Protection
Wire diameter :
2.0-4.00mm
Mesh size :
60x80 80x100 80x120 100x120
Package :
One Bundle
Length :
1-8m
Advantage :
Age Corrsion
Welding type :
Spot Welding
Description

Low Price Galvanized Welded Wire Mesh / Welded Wire Mesh Panel / PVC Coated Welded Wire Mesh

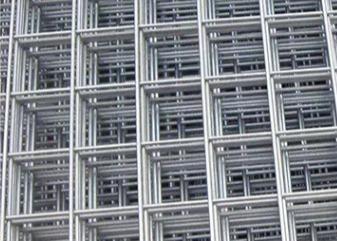

Product Description of welded wire mesh : This kind of welded wire mesh panel is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

Hot Dipped Galvanized After/Before Welding;

Electro Galvanized After/Before Welding;

PVC Coating With Green, Black, Color, Etc.

Welded Mesh made of Stainless Steel Wire.

Product Specification of welded wire mesh:

Specification List of Welded Mesh Panel
Opening Wire diameter
Inch mm BWG mm
1" × 1" 25mmx25mm 14# - 11# 2.0mm - 3mm
2" × 1" 50mmx25mm 14# - 8# 2.0mm - 4mm
2" × 2" 50mmx50mm 14# - 8# 2.0mm - 4mm
3" × 2" 75mmx50mm 14# - 6# 2.0mm - 5mm
3" × 3" 75mmx75mm 14# - 6# 2.0mm - 5mm
4" × 2" 100mmx50mm 14# - 4# 2.0mm - 6mm
4" × 4" 100mmx100mm 14# - 4# 2.0mm - 6mm
5" × 5" 125mmx125mm 14# - 4# 2.0mm - 6mm
6" × 6" 150mmx150mm 14# - 4# 2.0mm - 6mm
Note: Special specifications can be customized.

Specification
Wire diameter (mm) Hole size
Path distance (mm) Weft spacing (mm) Length (m) Width (m)
10 100--500 30--300 1--8 0.5--3
9 100--500 30--300 1--8 0.5--3
8 100--500 30--300 1--8 0.5--3
7 50--200 20—300 1--8 0.5--3
6 50--200 20—200 1--8 0.5--3
5 50--200 10—200 1--8 0.5--3
4 30--200 10—200 1—8 0.5--3
2--4 25--100 10--100 1--6 0.5--3

Galvanized Welded Mesh Fencing
Opening Wire Diameter
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm

Panel:The panels with diameters ranging from 3.0 mm to 6.0 mm, which ensure a very high stiffness of the fence. The panels up to 2000mm, 2500 mm,3000mm wide and with heights ranging from 630 mm to 2500 mm.

Stainless steel welded wire mesh panel
Mesh Wire diameter Width(feet)
2"×3" BWG8,10,12 2-8.2
2"×4" BWG6,8,11,12 2-8.2
3"×3" BWG6,8,10,11 2-8.2
4"×4" BWG3,4,5,6,8,9,10 2-8.2
4"×6" BWG3,4,5,6,8,9,10 2-8.2
6"×6" BWG0,2,4,6,7,8,9 2-8.2

Low Price Galvanized Welded Wire Mesh / Welded Wire Mesh Panel / PVC Coated Welded Wire Mesh

Product Characters of welded wire mesh :

1 . Excellent heat resistant and high intensity .

2 . High strength and strong integration .

3 . Flat and smooth surface combined with firm structure .

4 . Perfect Anti - Rust Property .

5 . Stay Holistiv even cut into fragmented parts .

6 . Long Using Life

7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.

Application

For industry, agriculture, construction, transport,transprotation, mining, mine playground,Stadium, lawn, aquaculture,cultivation, enclosurefence, decoration,ect.

Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions,machine protection fences, gratings and other construction applications.
