Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Galvanized Perforated Metal Mesh Stainless Steel Round Hole
Specifications
Brand Name :
XMESH
Model Number :
2mm thickness
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000pieces per week
Delivery Time :
15-25days
Packaging Details :
pallets
Material :
Stainless steel
Name :
Perforated Metal Screen Sheet
Hole type :
Rould hole
Thickness :
2mm
Key word :
cold rolled stainless steel sheet /stainless steel plate
Length :
2000,2438,2500,3000,6000mm, or as your requirements
Description
Galvanized perforated metal mesh plate perforated steel sheet


The Raw Material
stainless steel board, aluminum board, cold and hot steel board,copper plate, fiberboard and so on.

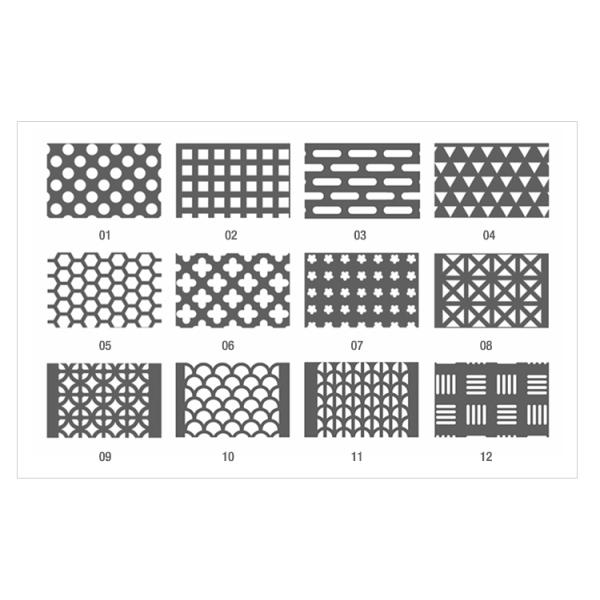

Hole Pattern
round, square, hexagonal, scale, rectangular, triangle, cross, slotted.
Surface Treatment of stainless steel perforated plate
*Galvanized: Galvanized including hot-dip galvanized and electic galvanized.
*PE/PVC coated,white,green,blue,red,yellow etc

ROUND HOLES STAGGERED PATTERN
HOLE CENTERS GAUGE / PLATE THICK. OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
1/16" RD 3/32"Stag 22 thru 16 40%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
3/16" RD 7/32" Stag 22 thru 16 67%
1/4" RD 5/16" Stag 20 thru 16 58%
17/64" RD 5/16" Stag 20 66%
5/16"RD 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
Other specifications parameter size support customization

Product Display

Galvanized Perforated Metal Mesh Stainless Steel Round Hole

Galvanized Perforated Metal Mesh Stainless Steel Round Hole

Product

Galvanized Perforated Metal Mesh Stainless Steel Round Hole

Packing

Galvanized Perforated Metal Mesh Stainless Steel Round Hole
