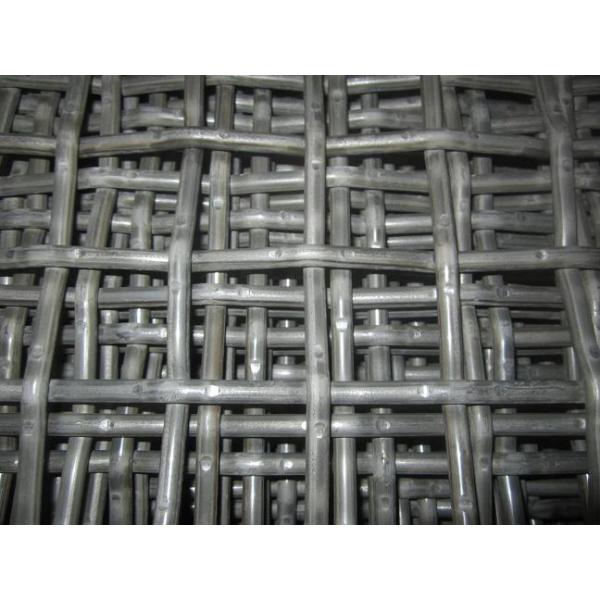

High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
High Carbon 65Mn Mine Vibrating Screen Mesh 1.5mx2m
Specifications
Brand Name :
XMESH
Model Number :
65mn
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
100pieces per week
Delivery Time :
15-25days
Packaging Details :
pallets
Material :
Stainless steel wire
Aperture :
3/4in
Size :
1.5mx2m
install :
hooked
Features :
Even mesh, strong structure
Description

High Carbon 65Mn Mine Vibrating Screen Mesh Crusher Screen Mesh

Hight Carbon Vibrating Screen Mesh for Mining and Crusher​

For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.

1. Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.
2. Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Features: Even mesh, strong structure
4. Specifications:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request
5. Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc

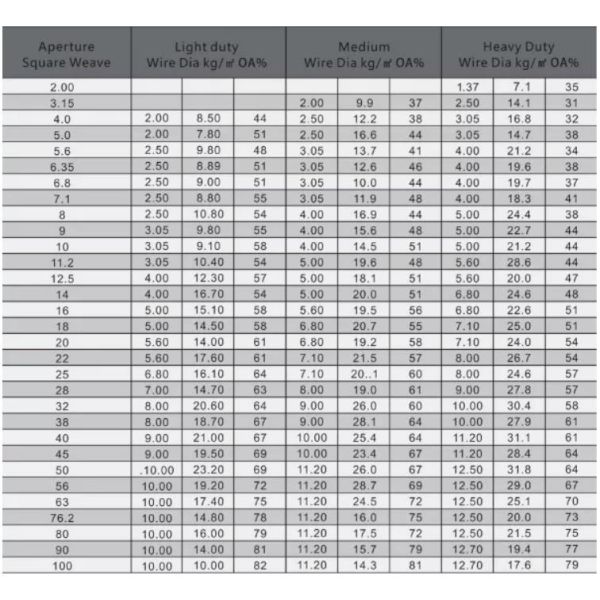

Specification List of Crimped Wire Mesh/Wire Mesh for Roast


Wire Gauge
SWG


Wire Diameter
mm

Mesh/Inch


Aperture
mm


Weight
kg/m2

14

2.0

21

1

4.2

8

4.05

18

1

15

25

0.50

20

0.61

2.6

23

0.61

18

0.8

3.4

24

0.55

16

0.1

2.5

24

0.55

14

0.12

4

22

0.71

12

0.14

2.94

19

1

2.3

0.18

1.45

6

4.8

1.2

2

20

6

4.8

1

2

20

6

4.8

0.7

3

14

14

2.0

5.08

0.3

12

14

2.0

2.1

1

2.5

14

2.0

3.6

1.5

1.9

1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

NO.

Grade

 Chemical Composition %
c si mn
1 45 0.42-0.50

0.17-0.37

0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60
