Industrial Collapsible 500kg Metal Wire Mesh Basket
Industrial Collapsible 500kg Metal Wire Mesh Basket
Industrial Collapsible 500kg Metal Wire Mesh Basket
Industrial Collapsible 500kg Metal Wire Mesh Basket
Specifications
Brand Name :
qijie
Model Number :
Collapsible Wire Mesh Metal Basket
Certification :
Collapsible Wire Mesh Metal Basket
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
30%TT in advance, Balance before loading
Delivery Time :
5-8days
Packaging Details :
paper carton
Material :
steel
surface treatment :
hot dipped galvanized
type :
Wire Container
loading capacity :
500kg
Description

Industrial Collapsible Wire Mesh Metal Basket

Foldable rolling metal storage cage is a very important logistics storage and transportation of containers, and store items with fixed capacity, stacked neatly and stored at a glance, easy to the inventory, at the same time improve the effective utilization of warehouse space.When not used, can foldable and stackable to save storage space.

Storage cage commonly used three kinds: the first kind is storage cage with wheels ,the second

is storage cage with foot ,can stackable, the third is the combination of the wheels and foot.

Characteristic:

1. Made of high quality cold rolled steel welded together, high strength, large load capacity.

2. Sizes is unified, fixed capacity, storage of the goods at a glance, easy to inventory.

3. On the surface of galvanized, beautiful and oxidation resistance, long service life.

4. Can be stacked each other four levels, the realization of three-dimensional storage.

5. Surface treatment, environmental protection health immunization, flow, storage, recovery will not pollute the environment

6. Cooperate with forklift, elevator, crane equipment for efficient operation.

7. Folding structure, recovery of low cost, is the alternative products wooden packaging.

8. Can be installed the wheel at the bottom, the factory internal turnover is extremely convenient.

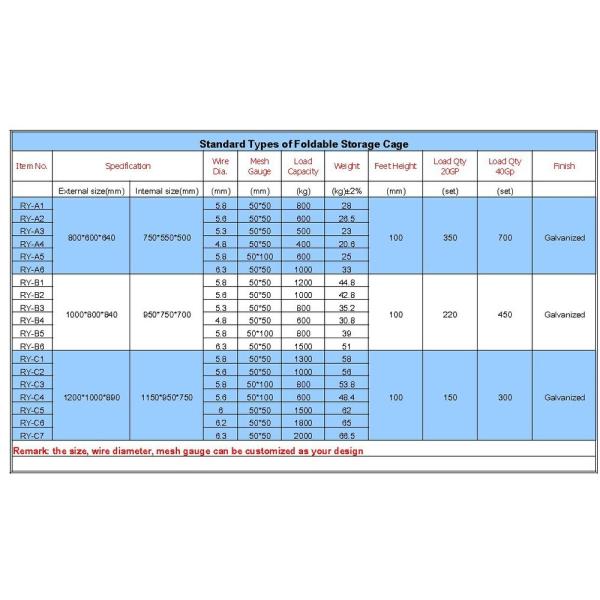

Specification of wire mesh stacking basket

Same design, different sizes
Model No. Exterior dimension

Wire

Guage

Dimension

of Grid

Loading

capacity

Loaded in

1*40'GP
LxWxH(mm) mm mm kg sets
HML-W-1 1030x840x850 6 50*50 1300 470
HML-L-1 1030x840x850 6 50*50 800 470
HML-W-2 1230x1040x890 6.2 50*50 1700 320
HML-L-2 1230x1040x900 6.2 50*50 1200 320
HML-S-1 1230x1040x950 6.2 50*50 1700 320
HML-W-3 1030x840x500 6 50*50 800 470
Material Mild steel Q235

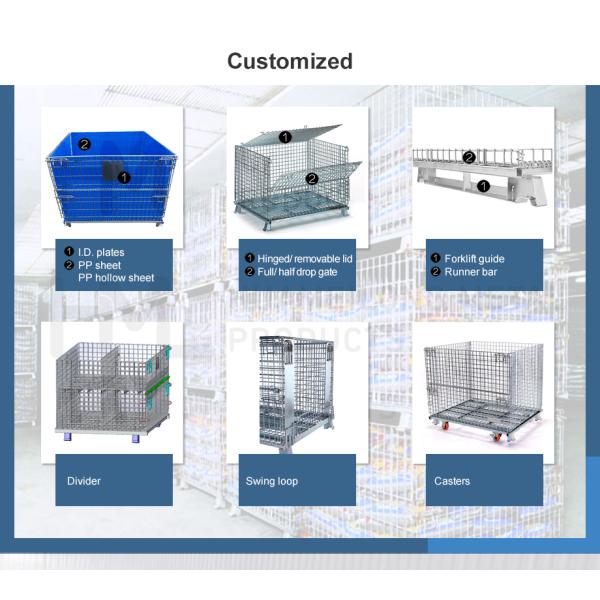

Available design Top lid/bar runner/forklift guide/with inner divider
Available accessories Wheels/inner PP sheet or PP hollow sheet/bag
Application area Warehouse, logistic, recycling industry
Finish Zinc/hot-dip galvanized/powder coating
Remark Customized or OEM support

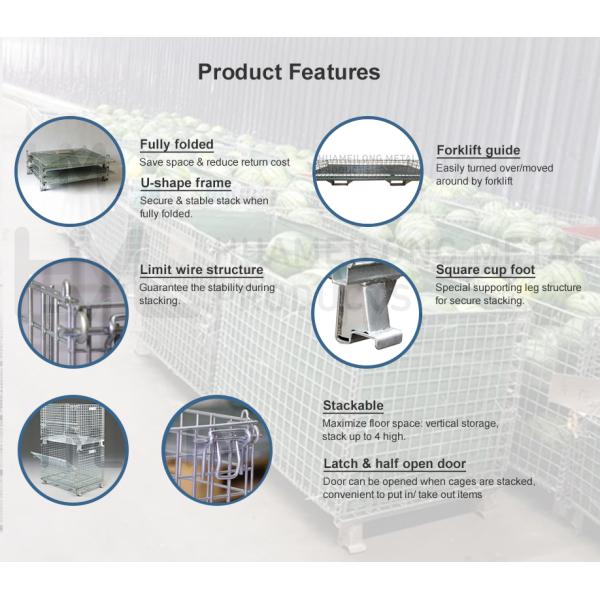

Product Features

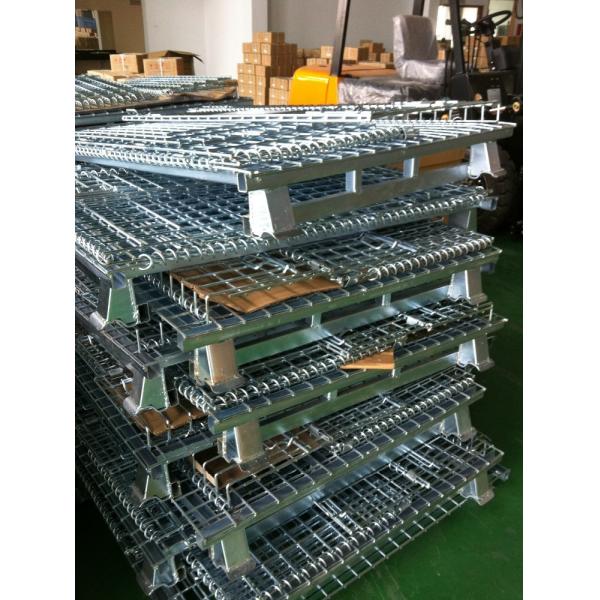

1.Collapsible-save space when not in use, ideal for return journeys
2.Standard half-hinged gate access
3.Square-stack leg - secure stacking
4. The open wire mesh design allows for full visibility for inventory checks,

ventilation and cleanness.

5. Easily moved around by forklift, even when fully loaded

Industrial Collapsible 500kg Metal Wire Mesh Basket

Industrial Collapsible 500kg Metal Wire Mesh Basket

Industrial Collapsible 500kg Metal Wire Mesh Basket

Industrial Collapsible 500kg Metal Wire Mesh Basket
