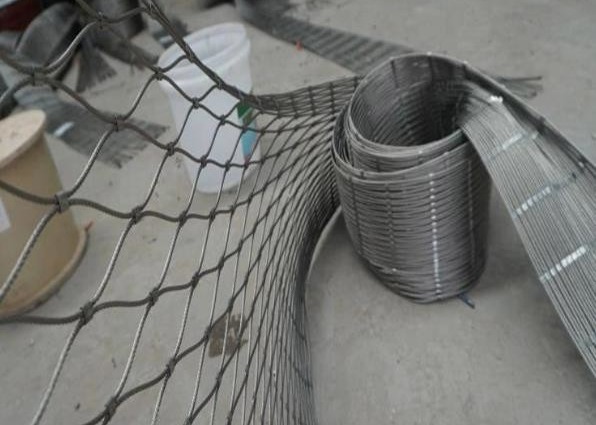

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway
7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway
7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway
7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway
Specifications
Brand Name :
Qijie
Model Number :
Wire Rope Ferruled Mesh
Certification :
SGS,ISO
Place of Origin :
Hebei,China
MOQ :
100pcs
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000m2 each month
Delivery Time :
15-18days
Packaging Details :
Wood case
Material :
Stainless Steel 304 , 316 , 316L
Rope Constructions :
7 X 7 , 7 X 19
Wire Rope :
1.2Mm To 3.2 Mm
Mesh Orientation :
Horizontal , Vertical
Product Name :
Stainless Steel Cable Wire Rope Mesh
Hole shape :
Rhombus , Diamond
Feature :
Corrosion Resistance,beautiful,durable,Easily Assembled
Mesh openning :
70*150mm
Application :
Staircase Security , Balustrade Infill , Railing Safety
Mesh Angle :
60 Degree
Mesh Style :
X-tend In Ferruled Type
Description

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway

Stainless steel flexible wire rope mesh adopt ferrule type which is sturdy and unlimited in wide and long ;

This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;

Usually the mesh eye size for the balustrade wire rope mesh is mesh wide 25 mm by mesh high 150 mm with wire rope diameter 1.5 mm 1.6 mm 2.0 mm 2.5 mm 3.0 mm 4.0 mm 6.0 mm;

measurement:

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway

specification:

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway

Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ; thw specification as follows:

Ferruled mesh:

Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
BR-01 7 × 19 1/8 3.2 120 × 208 7.38
BR-02 7 × 19 1/8 3.2 100 × 173 7.38
BR-03 7 × 19 1/8 3.2 90 × 156 7.38
BR-04 7 × 7 3/32 2.4 100 × 173 4.18
BR-05 7 × 7 3/32 2.4 90 × 156 4.18
BR-06 7 × 7 3/32 2.4 80 × 139 4.18
BR-07 7 × 7 3/32 2.4 70 × 121 4.18
BR-08 7 × 7 5/64 2 100 × 173 3.17
BR-09 7 × 7 5/64 2 90 × 156 3.17
BR-10 7 × 7 5/64 2 80 × 139 3.17
BR-11 7 × 7 5/64 2 70 × 121 3.17
BR-12 7 × 7 1/16 1.6 80 × 139 2.17
BR-13 7 × 7 1/16 1.6 70 × 121 2.17
BR-14 7 × 7 1/16 1.6 60 × 104 2.17
BR-15 7 × 7 1/16 1.6 51 × 87 2.17
BR-16 7 × 7 3/64 1.2 80 × 139 1.22
BR-17 7 × 7 3/64 1.2 60 × 104 1.22
BR-18 7 × 7 3/64 1.2 50 × 87 1.22
BR-19 7 × 7 3/64 1.2 40 × 69 1.22

Characteristic

1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight
2. Flexibility: the smooth mesh surface can get in close contact with animal's fur and feather without damaging them and meanwhile guarantees enough

tensile strength.

3. Its rust and corrosion resistant and maintenance-free features as well as ultra long service life can provide a beautiful site and reduces the zoo's

operating costs. One-time investment provides permanent use its comprehensive profits outperform other competitive products greatly

4. Light weight; flexible; anti fatigue; great tensile strength; simple structure; environment friendly; non poisonous and recyclable; easy for transportation and installation; no

deformation after long-time service

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway
