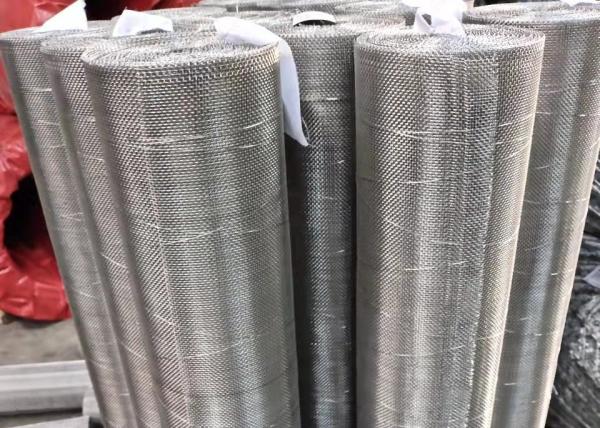

2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge
2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge
2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge
2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge
Specifications
Brand Name :
QiJie
Model Number :
stainless steel 304 wire mesh
Certification :
Certification ISO
Place of Origin :
HeBei,China
MOQ :
1 rolls
Price :
Discuss
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1500 Roll/Rolls per Week
Delivery Time :
within 7-30 days
Packaging Details :
Wooden carton
Type :
Weave Wire Mesh, Wire Cloth, Crimped Wire Mesh, Rope Mesh, Welded Mesh
Material :
Stainless Steel Wire, 316, 304, copper, plain steel galvanized
Technique :
Woven, Welded Mesh
Application :
Woven Wire Mesh, Filters, Screen, Decorative wire mesh, Protecting Mesh
Weave style :
Stainless Steel Wire, 316, 304, copper, plain steel galvanized
Hole shape :
Square Hole, Round
Usage :
Liquid Filter, chmical industry, oil, filtration, filtering and sieveing
Description

2m Width 10mesh ( 2.5mm Openning) Stainless Steel 304 Woven Wire Mesh

T-304 stainless steel is the most widely available of all stainless steels in the wire mesh industry. Aside from the countless combinations of mesh opening sizes and diameter wire available both from stock and through manufacturing, T-304 SS exhibits many benefits and is largely considered the standard of the industry. T-304 SS has excellent corrosion resistance in a wide range of environments and is used in a wide range of applications.

Another of the many benefits of T-304 SS is heat resistance. T-304 SS displays good oxidation resistance to a temperature of approximately 1600°F in intermittent service and to a temperature of 1700°F in continuous service. T-304 stainless steel is also excellent for fabrication purposes – it can be formed and cut to size with appropriate tools and machinery. It can also be welded, using most common welding techniques, and it is virtually non-magnetic in the annealed condition. From a cost standpoint, it is usually the most attractively priced of most readily available stainless steel mesh alloys in the industry, especially when taking into consideration its lifecycle.

T-304 Stainless Steel – Standard Chemical Composition (in %)
Alloy Carbon [C] Manganese [Mn] Phosphorus [P] Sulfur [S] Silicon [Si] Chromium [Cr] Nickel [Ni] Iron [Fe] Others, if Applicable
T-304 SS 0.08 Max 2.0 Max 0.045 Max 0.03 Max 1.00 Max 18.00–20.00 8.00–10.50 Balance Nitrogen [N] = 0.10 Max

Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc Specification customization: Wire Diameter, Mesh Count, Weave type

Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Product Name
Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range
0.02 - 6.30mm
Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
Mesh Width
Standard less than 2000 mm
Mesh Length
30m rolls or cut to length, minimum 2m
Mesh Type
Rolls and sheets are available
Production Standards
ASTM E2016 - 20
Certification
ISO9001: 2015

Weave Types
We can provide many different weaves to meet different application needs. the weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. Below are the show of some common styles we weave here.

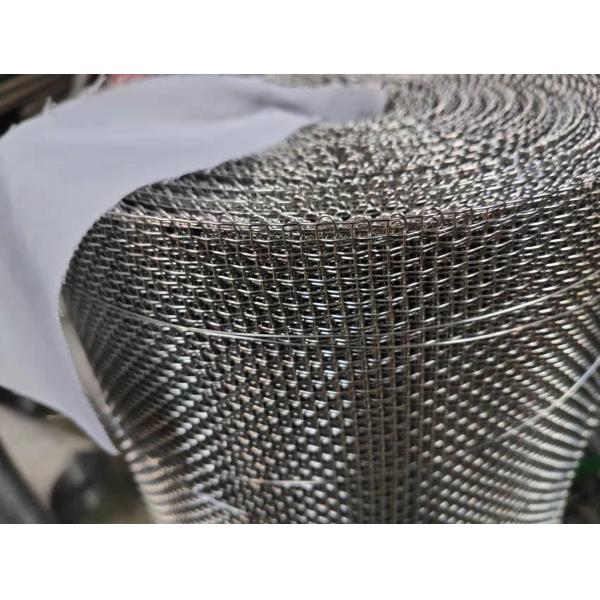

2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge

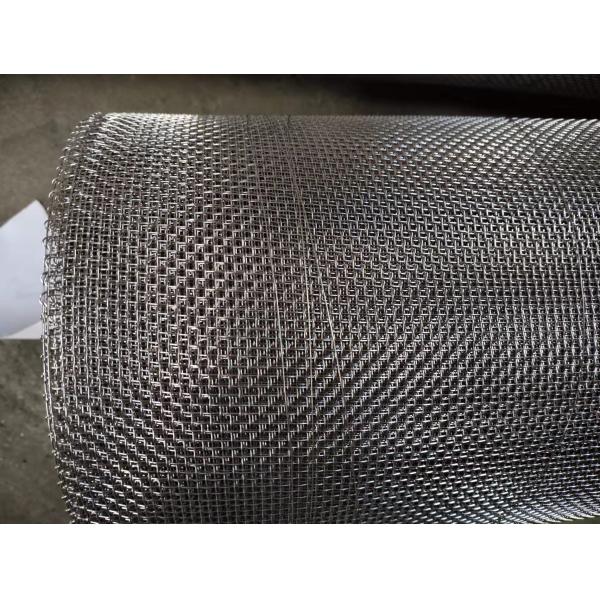

2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge

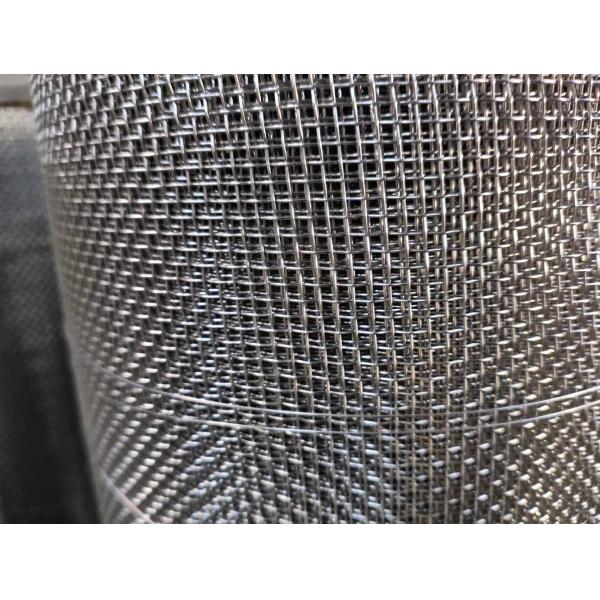

2m Width 10mesh 304 Stainless Steel Woven Wire Mesh 2.5mm Openning Selvage Edge
