Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway
Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway
Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway
Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway
Specifications
Brand Name :
Dimpled Hole Metal Sheets
Model Number :
Dimpled Hole Metal Sheets
Place of Origin :
China
MOQ :
10pieces
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000pieces
Delivery Time :
15-18days
Packaging Details :
pallets
Chemical Composition :
Fe, C, Si, Mn, S, P
Alloy Or Not :
Non-Alloy
Project Solution Capability :
graphic design, 3D model design, total solution for projects
Application :
Villa
Surface Treatment :
Hot-DIP Galvanizing, Painting or Untreated
Grate length :
1000mm
Grate width :
800mm
Bearing bar width x thickness :
25x3mm
Bearing bar shape :
Plain, Serrated I bar type Style Steel Grating
Cross bar shape :
round,twisted,bar shape
Mesh size :
30x100mm
Description

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

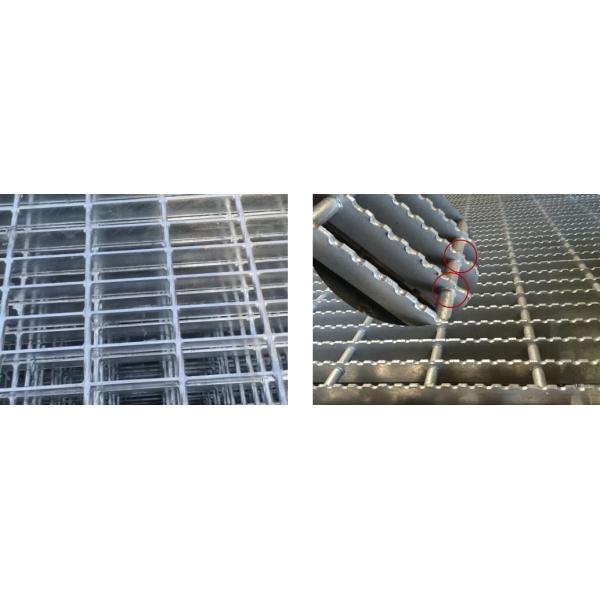

Steel bar grating is also known as steel grating. Steel grating is made up of parallel bars that are connected together with perpendicular bars. The bars are most commonly connected through machine pressure welding or manual welding, as the case may be. However, there are other ways of joining the bars together. Alternatives include riveting, close meshing (swaging), and press-locking. The most economical method of joining is determined by the materials used and the bars' thickness. Steel bar grating is usually made out of carbon steel orstainless steel. It has a very high ratio of strength-to-weight and a lot of open space, making it a widely used option for industrial flooring. However, it is also used for things such as fire escapes, street drains, and bridges.

Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway

Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway

At Tec-Sieve, both press welded steel bar grating panels and press locked steel bar grating panels are manufactured. Our press welded steel bar grating panels are ideal for most industrial applications, including without limitation the oil and gas industry, the petro-chemical industry, the mining industry and in power stations, so now we focus on our press welded steel bar grating panels in the following.

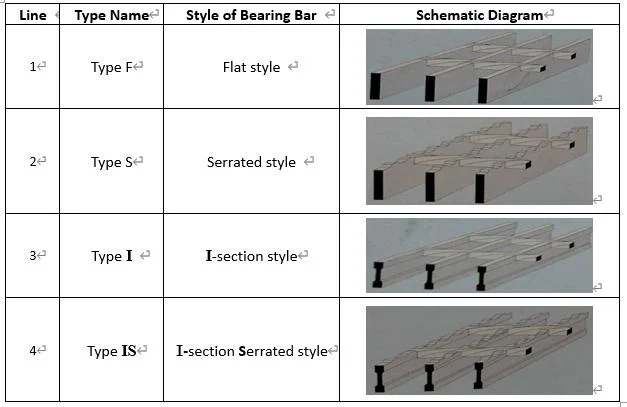

1. Types of Press Welded Steel Bar Grating Panels by the Style of Bearing Bars
Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway

Note: At Tec-Sieve, in addition to cold twisted square cross bars, round cross bars or ribbed cross bars are also available upon request.
2. Dimensions of Bearing Bars and Cross Bars

Nominal Size and Allowable Tolerance of Bearing Bars Size of Cross Rods
Nominal Size (mm) Allowable Tolerance (mm)
(Refer to YB/T4001.1-2007)		 Section Area (mm2)
Thickness 3-10 +0.2/-0.4 20
Depth 10-50 +0.3/-0.9 32
>50-75 +0.4/-1.2 40
>75-100 +0.7/-1.7
3. Specification Table of Type F Press Welded Steel Bar Grating Panels
Specification Code
(Simplified Version)		 Size of Bearing Bars Bearing Bar
Spacing
(mm)		 Cross Bar
Spacing
(mm)		 Nominal Weight
(kg/m2)
Depth (mm) Thickness (mm)
G655/15/100 65 5 15 100 195.90
G655/15/50 65 5 15 50 199.00
G605/15/100 60 5 15 100 181.10
G605/15/50 60 5 15 50 184.20
G555/15/100 55 5 15 100 166.30
G555/15/50 55 5 15 50 169.30
G505/15/100 50 5 15 100 151.40
G505/15/50 50 5 15 50 154.50
G455/15/100 45 5 15 100 136.60
G455/15/50 45 5 15 50 139.60
G405/15/100 40 5 15 100 121.70
G405/15/50 40 5 15 50 124.80
G403/15/100 40 3 15 100 75.60
G403/15/50 40 3 15 50 78.70
G355/15/100 35 5 15 100 106.90
G355/15/50 35 5 15 50 110.00
G35315/100 35 3 15 100 66.60
G353/15/50 35 3 15 50 69.60
G325/15/100 32 5 15 100 98.00
G325/15/50 32 5 15 50 101.00
G323/15/100 32 3 15 100 61.10
G323/15/50 32 3 15 50 64.20
G255/15/100 25 5 15 100 77.20
G255/15/50 25 5 15 50 80.30
G253/15/100 25 3 15 100 48.40
G253/15/50 25 3 15 50 51.50
G205/15/100 20 5 15 100 62.40
G205/15/50 20 5 15 50 65.50
G203/15/100 20 3 15 100 39.30
G203/15/50 20 3 15 50 42.40
G605/20/100 60 5 20 100 135.30
G605/20/50 60 5 20 50 138.30
G555/20/100 55 5 20 100 124.30
G555/20/50 55 5 20 50 127.30
G505/20/100 50 5 20 100 113.30
G505/20/50 50 5 20 50 116.30
G503/20/100 50 3 20 100 70.80
G503/20/50 50 3 20 50 73.80
G455/20/100 45 5 20 100 102.20
G455/20/50 45 5 20 50 105.20
G405/20/100 40 5 20 100 91.20
G405/20/50 40 5 20 50 94.20
G403/20/100 40 3 20 100 57.30
G403/20/50 40 3 20 50 60.30
G355/20/100 35 5 20 100 80.20
G355/20/50 35 5 20 50 83.20
G353/20/100 35 3 20 100 50.50
G353/20/50 35 3 20 50 53.50
G325/20/100 32 5 20 100 73.60
G325/20/50 32 5 20 50 76.60
G323/20/100 32 3 20 100 46.40
G323/20/50 32 3 20 50 49.40
G255/20/100 25 5 20 100 58.10
G255/20/50 25 5 20 50 61.10
G253/20/100 25 3 20 100 36.90
G253/20/50 25 3 20 50 39.90
G205/20/100 20 5 20 100 47.10
G205/20/50 20 5 20 50 50.10
G203/20/100 25 3 20 100 30.10
G203/20/50 25 3 20 50 33.10
G655/30/100 65 5 30 100 100.40
G655/30/50 65 5 30 50 103.40
G605/30/100 60 5 30 100 92.90
G605/30/50 60 5 30 50 95.90
G555/30/100 55 5 30 100 85.40
G555/30/50 55 5 30 50 88.40
G505/30/100 50 5 30 100 77.90
G505/30/50 50 5 30 50 80.90
G503/30/100 50 3 30 100 49.60
G503/30/50 50 3 30 50 52.60
G455/30/100 45 5 30 100 70.40
G455/30/50 45 5 30 50 73.40
G405/30/100 40 5 30 100 62.90
G405/30/50 40 5 30 50 65.60
G403/30/100 40 3 30 100 40.30
G403/30/50 40 3 30 50 43.30
G355/30/100 35 5 30 100 55.40
G355/30/50 35 5 30 50 58.40
G353/30/100 35 3 30 100 35.60
G353/30/50 35 3 30 50 38.60
G325/30/100 32 5 30 100 50.90
G325/30/50 32 5 30 50 53.90
G323/30/100 32 3 30 100 32.80
G323/30/50 32 3 30 50 35.80
G255/30/100 25 5 30 100 40.40
G255/30/50 25 5 30 50 43.40
G253/30/100 25 3 30 100 26.30
G253/30/50 25 3 30 50 29.30
G205/30/100 20 5 30 100 33.00
G205/30/50 20 5 30 50 36.00
G203/30/100 20 3 30 100 21.60
G203/30/50 20 3 30 50 24.60
G655/40/100 65 5 40 100 78.70
G655/40/50 65 5 40 50 81.70
G605/40/100 60 5 40 100 72.90
G605/40/50 60 5 40 50 75.90
G555/40/100 55 5 40 100 67.10
G555/40/50 55 5 40 50 70.10
G505/40/100 50 5 40 100 61.20
G505/40/50 50 5 40 50 64.20
G503/40/100 50 3 40 100 39.60
G503/40/50 50 3 40 50 42.60
G455/40/100 45 5 40 100 55.40
G455/40/50 45 5 40 50 58.40
G405/40/100 40 5 40 100 49.60
G405/40/50 40 5 40 50 52.60
G403/40/100 40 3 40 100 32.30
G403/40/50 40 3 40 50 35.30
G355/40/100 35 5 40 100 43.80
G355/40/50 35 5 40 50 46.80
G353/40/100 35 3 40 100 28.60
G353/40/50 35 3 40 50 31.60
G325/40/100 32 5 40 100 40.30
G325/40/50 32 5 40 50 43.30
G323/40/100 32 3 40 100 26.40
G323/40/50 32 3 40 50 29.40
G255/40/100 25 5 40 100 32.10
G255/40/50 25 5 40 50 35.10
G253/40/100 25 3 40 100 21.30
G253/40/50 25 3 40 50 24.30
G205/40/100 20 5 40 100 26.30
G205/40/50 20 5 40 50 29.30
G203/40/100 20 3 40 100 17.60
G203/40/50 20 3 40 50 20.60
G655/60/50 65 5 60 50 49.00
G555/60/50 55 5 60 50 42.40
G505/60/50 50 5 60 50 39.00
G455/60/50 45 5 60 50 35.70
G405/60/50 40 5 60 50 32.30
G403/60/50 40 3 60 50 21.70
G325/60/50 32 5 60 50 27.00
G323/60/50 32 3 60 50 18.50
G255/60/50 25 5 60 50 22.30
G253/60/50 25 3 60 50 15.70
G205/60/50 20 5 60 50 19.00
Note: Bearing bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.
4. Specification Table of Heavy Duty Type F Welded Steel Bar Grating Panels
Specification Code
(Simplified Version)		 Size of Bearing Bars Bearing Bar
Spacing
(mm)		 Cross Bar
Spacing
(mm)		 Nominal Weight
(kg/m2)
Depth (mm) Thickness (mm)
G10010/40/100 100 10 40 100 234.90
G1008/40/100 100 8 40 100 191.70
G908/40/100 90 8 40 100 173.10
G808/40/100 80 8 40 100 154.40
G758/40/100 75 8 40 100 145.10
G756/30/100 75 6 30 100 140.10
G756/40/100 75 6 40 100 110.10
G706/30/100 70 6 30 100 131.10
G706/40/100 70 6 40 100 103.20
Note: Bearing bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.
5 Specification Table of Type I Press Welded Steel Bar Grating Panel
Specification Code
(Simplified Version)		 Size of Bearing I Bars (mm) I Bar
Spacing
(mm)		 Cross Bar
Spacing
(mm)		 Nominal Weight
(kg/m2)
I Bar
Height
(Width)		 Flange Thickness Flank Thickness Flange Width
G757/30/50PWI 75 7 4 12 30 50 126.10
G757/30/100PWI 75 7 4 12 30 100 120.70
G657/30/50PWI 65 7 4 10 30 50 110.10
G657/30/100PWI 65 7 4 10 30 100 104.80
G607/30/50PWI 60 7 4 10 30 50 99.10
G607/30/100PWI 60 7 4 10 30 100 96.10
G557/30/50PWI 55 7 4 8.5 30 50 90.30
G557/30/100PWI 55 7 4 8.5 30 100 87.30
G507/30/50PWI 50 7 4 8 30 50 83.20
G507/30/100PWI 50 7 4 8 30 100 80.20
G505/30/50PWI 50 5 3 8.5 30 50 62.80
G505/30/100PWI 50 5 3 8.5 30 100 59.80
G445/30/50PWI 44 5 3 8 30 50 56.50
G445/30/100PWI 44 5 3 8 30 100 53.50
G385/30/50PWI 38 5 3 7 30 50 49.90
G385/30/100PWI 38 5 3 7 30 100 46.90
G325/30/50PWI 32 5 3 6 30 50 43.30
G325/30/100PWI 32 5 3 6 30 100 40.30
G255/30/50PWI 25 5 3 4.5 30 50 35.10
G255/30/100PWI 25 5 3 4.5 30 100 32.10
G757/40/50PWI 75 7 4 12 40 50 101.00
G757/40/100PWI 75 7 4 12 40 100 95.60
G657/40/50PWI 65 7 4 10 40 50 88.50
G657/40/100PWI 65 7 4 10 40 100 83.20
G607/40/50PWI 60 7 4 10 40 50 78.90
G607/40/100PWI 60 7 4 10 40 100 75.90
G557/40/50PWI 55 7 4 8.5 40 50 71.90
G557/40/100PWI 55 7 4 8.5 40 100 68.90
G507/40/50PWI 50 7 4 8 40 50 66.40
G507/40/100PWI 50 7 4 8 40 100 63.40
G505/40/50PWI 50 5 3 8.5 40 50 50.40
G505/40/100PWI 50 5 3 8.5 40 100 47.40
G445/40/50PWI 44 5 3 8 40 50 45.50
G445/40/100PWI 44 5 3 8 40 100 42.50
G385/40/50PWI 38 5 3 7 40 50 40.30
G385/40/100PWI 38 5 3 7 40 100 37.30
G325/40/50PWI 32 5 3 6 40 50 35.10
G325/40/100PWI 32 5 3 6 40 100 32.10
G255/40/50PWI 25 5 3 4.5 40 50 28.70
G255/40/100PWI 25 5 3 4.5 40 100 25.80
Note: I bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.

Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway

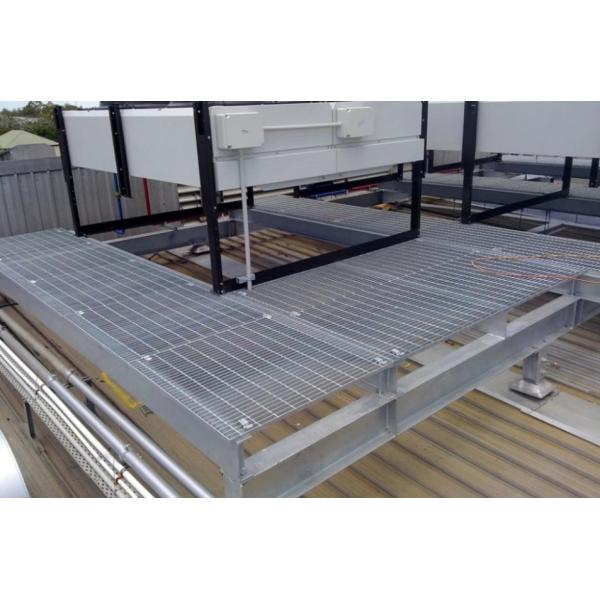

Application of Steel Floor Grating

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

4) Serrated steel gratings also be guardrail for garden, villa, balcony, highway, etc.

Galvanized Welded Steel Mesh Grating Special Steel Grating for Floor Walkway
