3D Curved Safety Guardrail Panel Welding Wire Mesh Metal Fence Panel
3D Curved Safety Guardrail Panel Welding Wire Mesh Metal Fence Panel
3D Curved Safety Guardrail Panel Welding Wire Mesh Metal Fence Panel
3D Curved Safety Guardrail Panel Welding Wire Mesh Metal Fence Panel
Specifications
Brand Name :
XMESH
Model Number :
46WMP
Certification :
ISO9001:2008, SGS, CE
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
USD6.90-USD45.71
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000 pcs/per day
Delivery Time :
10-25days
Packaging Details :
Plastic film and wooden pallet.
Material :
Carbon steel wire, galvanized wire
Mesh Opening :
1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc.
Wire Diameter :
0.4mm - 6.0mm
Panel Size :
1.2x2.4M,1.2x3.0M,1.8x3.6M ect.
Surface Treatment :
PVC coating
Post Height :
1.1M-3.0M
Description

3D Curved Safety Guardrail Panel Welding Wire Mesh Metal Fence Panel

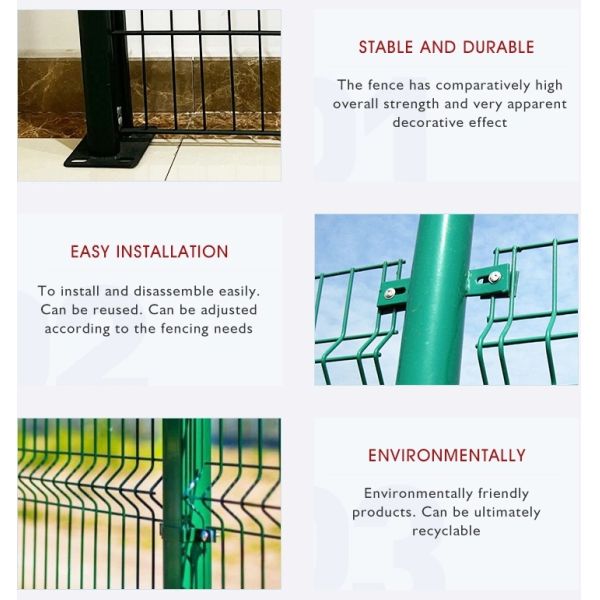

3d bend fence is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light and durable, its composition is simply wire welded mesh panel, post and connection hardwares. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.

Wire mesh fence, 3D mesh fence, Garden fence, Security fence,Curved fence, Triangle fence, Welded mesh fence
Wire mesh fence is made of welded wire mesh panel and different kinds of post,such as square post, round post,and peach post. Mostly used for for security and segregate of road, yards, sport fields, airports and public district.

Wire thickness
Mesh Opening
Height
Folds No.
Length
Galvanized + Powder Painted

3.8mm/4.0mm
4.8mm/5.0mm

5.8mm/6.0mm

Galvanized + PVC Coated
3.0mm/4.0mm
4.0mm/5.0mm

5.0mm/6.0mm

Hot dipped Galvanized
50*200mm
55*200mm
50*100mm
55*100mm
50*150mm
55*150mm
2030mm
4
1.5m
1.8m
2.0m
2.5m
3.0m
2230mm
4
2430mm
4
1730mm
3
1530mm
3
1230mm
2
1030mm
2
Color
Ral 6005(Green), Ral 9005(Black), Ral 7016(Gray), Ral 9010(White), Ral8014(Brown)
Post
Round post, Square Post, Rectangular Post, Peach Post
Other specifications are also available, all can be customized.

Fence panel specification

Panel Height(mm) Panel Length(m) Wire Diameter(mm) Mesh Size(mm)
1030 2m/3m 3/3.5/4/4.5/5/5.5/6 50*200
55*200
50*100
50*150
70*200
70*150
1230
1500
1700
1800
2000
2030
2430
Fence post specification
Round Post Square Post(SHS) Rectangular Post(RHS)
48*1.5/2.0MM
60*1.5/2.0MM		 50*50*1.5/2.0MM
60*60*1.5/2.0MM
80*80*1.5/2.0MM		 40*60*1.5/2.0MM
40*80*1.5/2.0MM
60*80*1.5/2.0MM
80*100*1.5*2.0MM
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Note: The fence can be customized according to your required if above specification is not satisfied with you.

Application

3d bend fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.
