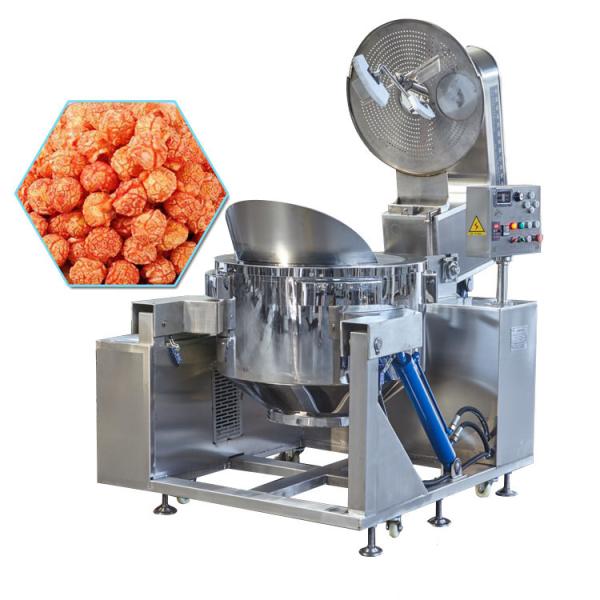

Customized Industrial Popcorn Making Machine Ball Shape Thermal Insulation System
Customized Industrial Popcorn Making Machine Ball Shape Thermal Insulation System
Customized Industrial Popcorn Making Machine Ball Shape Thermal Insulation System
Customized Industrial Popcorn Making Machine Ball Shape Thermal Insulation System
Specifications
Brand Name :
SBN
Model Number :
SBN-700
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD 5000-10000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Packaging Details :
1. Daub coal oil on the surface of the machines. 2. Plastic film as the inner packing. 3.Train, ship or depend on clients' requirement
Material :
SUS304
Warranty :
1 Year
Voltage :
3Phase, 4 Wires, 380V
Work Efficiency :
4Kg/Batch/5Min. (Popcorn)
Condition :
New
Application :
Popcorn
Type of heating :
electric/gas heating
After-sales Service :
Online support
Delivery Time :
30 working days after we got the downpayment.
Description

Customized Cheese Popcorn Mixing Spherical Gourmet Popcorn Popping Equipment Ball Shape Popcorn Machine

1.Introduction

1. The machine is heated by electrically heated conductive oil. When the oil temperature rises, the popcorn can burst out the whole corn kernels at 250 degrees. In fact, the average corn kernels are 2 centimeters long, which is 0.3 centimeters larger than traditional popcorn.

2. Structural components:

The popcorn popper is mainly composed of frame, pot body, burner, mixing slurry, pouring pot device and gas pipeline.The frame is used to install and fix the pot body and various equipment. The pot body is the main part of making food. The burner is used to heat the pot body.

2. Working principle

After opening the valve of the gas pipeline, the gas enters the burner, burns after ignition, and heats the pot and the food in the pot.The pot body is controlled by tilting pot device, which is mainly composed of worm gear and worm transmission device. When the tilting pot handle is shaken, the transmission device rotates and drives the pot body to rotate around the supporting shaft, so as to realize the overturning of the pot body and facilitate food delivery and cleaning.The slurry is driven by a stepless variable speed motor, which can adjust the mixing speed within a certain speed range to meet the requirements of food cooking technology.

3. Technical parameters

Model Volume Diameter Voltage Power Weight Dimension Type of heating
SBN-100 100L 800mm 380v/220v 20kw 500kg 1750*1250*1650mm electric/gas
SBN-200 200L 900mm 380v/220v 20kw 600kg 1750*1350*1650mm electric/gas

Those machine in the chart are standard configurations.
We also can customize Hot sale automatic caramel popcorn vending machine commercial 20 kg/h according to your specific requirements or your drawing.

4. Main Features

1.This product concentrated essence of commercial popcorn machine, stainless steel and aluminum alloy;High quality aluminum pot, pot spraying foote dragon non-stick layer;Pegged to the unique design, the use of more secure, and easy to dismantle and clean.
2. With flat type heating element, significantly improve yield, can be continuous corn.
3. Has the thermal insulation system, keep popcorn fresh, crisp mouth for a long time.

5. Company introduce

Shandong Saibainuo Technology Development Co., Ltd. is a comprehensive enterprise integrated with equipment research, development, production, sales and service with more than 16 years experience.Due to sustained efforts, it has already owned multi-series mature production, such as puffed Food processing line, isolated soya protein processing line and lab extruder etc.

We keep very close cooperation and exchanges with many world-renowned manufacturers and domestic research institutions. In addition, with our quick access to information, timely delivery, reliable quality and perfect service, our products have been exported to USA, Europe, Africa and near Countries such as Japan, India and Southeast Asia, recognized by broad masses of customers.
