Corn Flakes Making Machine Breakfast Cereal Maker Processing Line

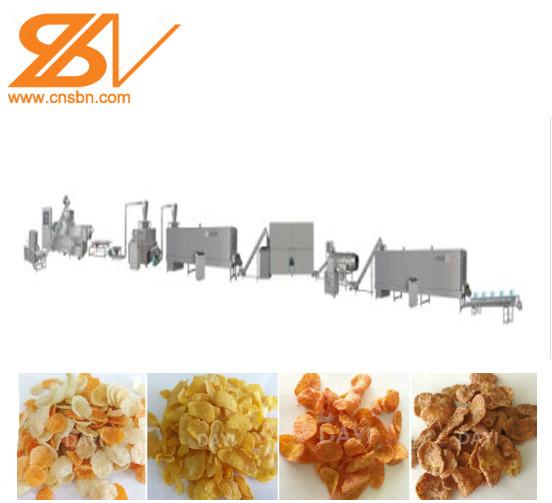

1. Corn Flakes Processing Line :.
Mixer→ Screw conveyor→ Extruder→Horizontal conveyor→ Air conveyor→ Flaking(tabletting) machine→Air conveyor→ Dryer→ Air conveyor→ Puffing machine→ Sifter→ Hoister→ Flavoring system→ Dryer
2. Product Application:
1. Series of Screw Extruder mainly consist of feeding system, extruding system, cutting system, heating system, lubricating system and controlling system.
2. Automatic lubricating and forced cooling make sure that extruder performs safely and extends using life.
Feeding system, extruding system and cutting system all adopt frequency conversion timing to gain powerful drive, stable perform, and electricity saving.
3. Screws are made of alloy and processed by special technique to possess high in-tensity, abrasion resistant.
4. By means of designing different structures and slenderness ratios according to needs of products, screw ex- truding system can meet different technology demands.
3. Details of different models:
SLG70 Corn flakes processing line | Installed capacity: (KVA) | 166 |
Power: (kw) | 110 | |
Output capacity: (kg/hr) | 120-150 | |
Dimension: (m) | 45*3.0*4.0m | |
SLG85 Corn flakes processing line | Installed capacity: (KVA) | 263 |
Power: (kw) | 200 | |
Output capacity: (kg/hr) | 240-300 | |
Dimension: (m) | 48.5*5.0*4.0 |
4. Main Features:
1. Belt transmission betwe en motor and gear box,reducing energy consumption.
2. Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3. Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products
4. Automatic lubrication system can lower down power consumption and prolong the life.
5. Double screws feed equal materials forcibly.
6. Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
5. After Sales Service:
1. One year Guarantee, life time maintenance with cost price.
2. Provide the factory design and processing line layout.
3. Provide technical support and formulation.
4. Instalation and training in customer’s factory.
6. Packaging & Shipping
Packing:inside plastic bag, outside wooden case for fried pellet snack food machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Delivery time:15-20 working day.

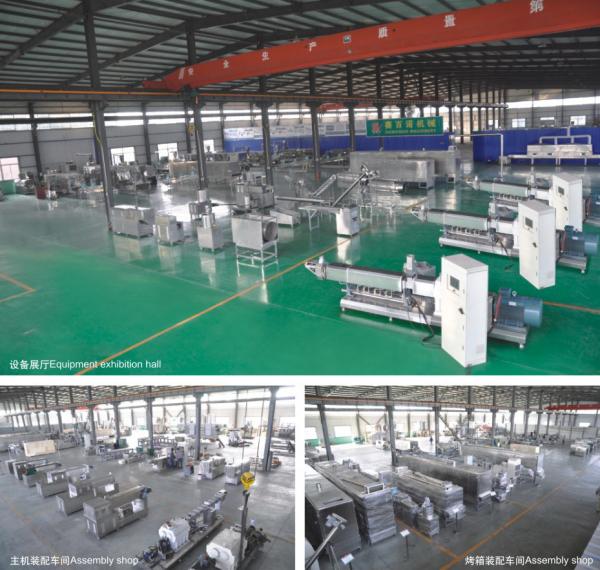

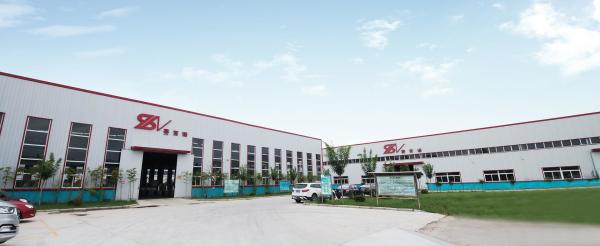

7. Our Company:
1. Jinan Saibainuo Machinery Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade. We have devoted ourselves to developing, manufacturing and trading double/single screw extruders, snack production lines, breakfast cereal/corn flake production lines, soya meat production lines, pasta/macaroni production lines, pet food production lines, etc. for more than 10 years.
2. Saibainuo has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to meet the requirements of customers.
3. We are insisting on improving the standard of products and trying our best to serve our clients. Our goal is to become the biggest and best puffing snack food processing machinery manufacturer in China. We wish our products can benefit clients from all over the world.
8. FAQ:
Q1: Are you a trade company or a manufacturer?
A: We are a manufacturer, welcome to visit our factory and check the machines.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q3: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q4: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q5: How about the after-service?
A: We will send 1 engineer to the buyer’s factory for 7-14 days period installation and training to the operators.
Q6: Do you supply any formula to buyer?
A: Yes, we supply formulas to buyer.
