Vacuum Filtration 750Kg/H 100RPM Screw Type Oil Expeller

Specifications

Brand Name :

Lewin

Model Number :

6YL-160

Certification :

CE, ISO

Place of Origin :

Henan , China

MOQ :

1 set

Price :

Negotiation

Payment Terms :

T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability :

100 sets per month

Delivery Time :

5-10 working days

Packaging Details :

Wooden case package / Customized

Product Name :

Cold And Hot Press Oil Machine Screw Oil Press Machine High Oil Yield

Applicable materials :

Peanut, Soybean, Rapeseed, Mustard, Hemp seed, Coconut, Sesame, Walnut, Olive, etc.

Dimension(l*w*h) :

2650*1900*2700mm

Weight :

1900Kg

Voltage :

380 V/220V

Power :

30Kw

Squeezer speed :

60-100RPM

Capacity :

50-750Kg/h

Type :

Cold & Hot Pressing Machine,tiger nut oil press/ oil press machine/cooking oil press machine

Function :

Press Oil Seeds,Making Edible Oil,Oil Pressing

Feature :

Multifunction High Efficient,High Oil Yield Efficiency,Cold press

Description

Cold And Hot Press Oil Machine Screw Oil Press Machine High Oil Yield

Cold And Hot Press Oil Machine Screw Oil Press Machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing peanut, soybean, coconut, sesame, pine nut, walnut, and so on valuable oil seeds.

Main Features:

1. Cold And Hot Press Oil Machine Screw Oil Press Machine with vacuum filtration, fast purification and automatic temperature control technology.
2. High oil yield, about 3% higher than the average oil press, and easy to install.
3. The oil is purity and can be eaten directly after vacuum filtration.

Working Principe:

Screw oil press machine is specially for cold and hot press.

The material was push by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket.

After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.

Parameter:

1.We have many models for you choose.

2.We also accept custom models.

Model	Weight	Power	Squeezer speed	Capacity	Dimension(mm)
6YL-70	780kg	4kw	60-100rpm	50-100kg/h	170012001500
6YL-120	1500kg	15kw	60-100rpm	120-160kg/h	200016002700
6YL-130	1600kg	22kw	60-100rpm	180-300kg/h	215016002700
6YL-130(A)	1650kg	18.5kw	60-100rpm	160-280kg/h	260016002700
6YL-150	1800kg	30kw	60-100rpm	220-450kg/h	255018002700
6YL-160	1900kg	30kw	60-100rpm	300-600kg/h	265019002700
6YL-180	1980kg	37kw	60-100rpm	400-750kg/h	270020002700

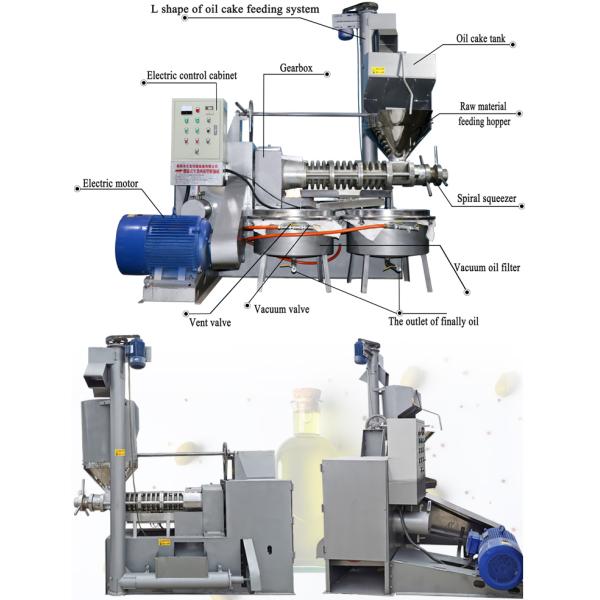

Structure:
