Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency
Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency
Specifications
Brand Name :
Lewin
Model Number :
6YY- 230A
Certification :
ISO CE
Place of Origin :
Henan , China
MOQ :
1 set
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, Money Gram, Paypal
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden case package / Customized
Name :
Perilla seed oil processing machine oil extracting machine factory price
Model :
6YY - 230 A
Usage :
Cold & Hot pressing
Suit for :
Kinds of oil seeds
Working pressure :
60 Mpa
Material :
Kinds of seeds
Weight :
924 kg
Voltage :
380V
Power :
2.2 kw / 1.1 kw
HS code :
8479200000
Description

Perilla seed oil processing machine oil extracting machine factory price

I. Production description

Our perilla seed oil processing machine oil extracting machine factory price:

1. Our machine use the solid piston is stronger than other similar machines, it can press the oil seeds very clean.

2. Our machine maximum working pressure is 60Mpa, it can provide the high pressure to press the raw material.

3. Our machine use fully automatic technology, one person can operate 4-5 sets machine.

4. Our machine use alloy material, it is stronger than other machines to ensure the safety of this machine.

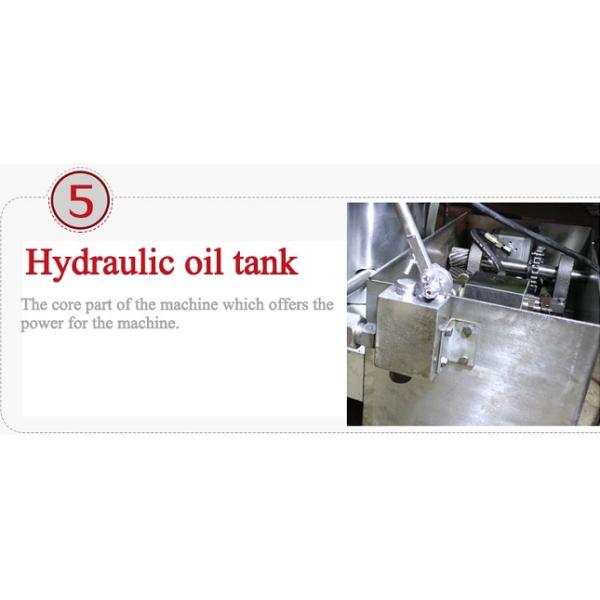

5. Our hydraulic tank offer the power for the machine.

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

 4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

 1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

 0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

 190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%

Where can use our machine?

Our machine can cold and hot press kinds of seeds:

1. Making oil line:

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

2. Movable pressing oil:

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

II. Working Process:

Working principle

This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Workflow( Hot pressing):

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Cold press workflow:

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Operation step:

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

III. Our advantages

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

IV. Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

V. Our service

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency

1.Offer the most suitable solution for you.


2. Visiting our factory.


3. Testing machine for you.


4. Always online to help you.


5. Delivery products immediately after receipt tje payment.


6. Change voltage according to your needs.


7. Operation manual, operation video and install video.

Perilla Seed Industrial Oil Press Machine 60 Mpa Working Pressure High Efficiency
