Specifications
Brand Name :
Lewin
Model Number :
YY-230(B)
Certification :
ISO CE
Place of Origin :
Nanyang,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
5-8 working day
Packaging Details :
Wooden case with film/Customized
Product name :
Home mini type hydraulic oil extraction machine with high presssure for sesame
Material :
Alloy
Usage :
Olive sesame avocado inca peanut and other raw materials
Feature :
High pressure high efficiency
Advantage :
Easy operation high oil yield
Size :
670*950*1560mm
Weight :
950kg
voltage :
220v / 380v / customize
Power :
2.2kw / 1.1kw
Capacity :
9.5kg / batch
Oil cake diameter :
230mm
Processing type :
Cold / hot press machine
HS Code :
8479200000
Description

Product Description

Home mini type hydraulic oil extraction machine with high presssure for sesame

Performance and features:
1. This machine is small in size, small in floor space, easy to learn, easy to understand, easy to operate, and has no special requirements for operators.
2. During the use of this machine, the power consumption is low and the various expenses are small.
3, than stone grinding, saving power 50%.
4. hydraulic machine with high pressure, high oil yield and good oil quality.


Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

Hydraulci Oil Press Machine Main Features

The automatic hydraulic oil press is a small oil press with simple operation, high oil output rate and less replacement of wearing parts. It is a manual equipment for replacing small grinding sesame oil.

Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

Main Paramater:

1.we have different model for you reference.
2.We also can customized according to your requirments.

Model

Capacity

(kg/batch)

 Weight(kg)

Working

pressure

 power(kw)

Dimension

(mm)

 oil cake diameter
YY-185 4 590 60MPa 2.2/1.1 600*880*1150 180mm
YY230(A) 8.5 924 60MPa 2.2/1.1 670*950*1460 230mm
YY-230(B) 9.5 950 60MPa 2.2/1.1 670*950*1560 230mm
YY-250 11 1070 60MPa 2.2/1.1 710*950*1560 250mm
YY-270 13.5 1230 60MPa 4.0/2.2 750*1010*1640 270mm
YY-300 16 1600 60MPa 4.0/2.2 1000*1100*1660 300mm
YY-335 20 1750 60MPa 4.0/2.2 1100*1240*1730 355mm
YY-355 23 2350 60MPa 5.0/3.0 1160*1200*1810 355mm


Detailed Images

The machine has the following characteristics:

Manual type small Hydraulic oil press machine for coconut/olive/sesame
1. The vacuum filter residue ensures the purity of the oil and meets the sanitary quarantine standards.

2. The concept is novel and electromechanical, the design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used.

3. It takes only a few minutes from the feeding to the finished product


Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

Hydraulic oil press working principle:
The oil crops are placed in the filling barrel, and the force of the cylinder piston assembly is pushed upwards, the oil crops are squeezed to make oil, and the oil flows out from the oil-filled seam of the filling barrel, and the oil pan is connected to the oil storage barrel.

Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

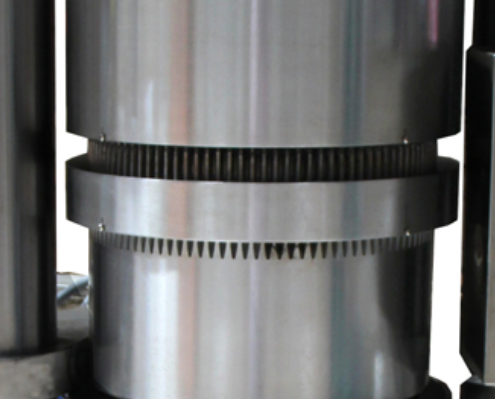

This is the Pressing kettle.Perfect oil line, high quality steel and many times heating treament make it stronger enough

Our Company:

Henan Lewin Industrial Development Co.,Ltd has strong processing capabilities and has machining equipment. With high-quality R&D and design personnel, the existing new product development, product design, production, sales, service, project cooperation, and other multi-sectoral institutions are a comprehensive and diversified enterprise.


Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:

Generally 7-10 working days after receipt the deposit
Home Mini Type Hydraulic Oil Extraction Machine High Pressure Easy operation

After-service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
