Specifications
Brand Name :
Lewin
Model Number :
6YY-185
Certification :
CE ISO
Place of Origin :
Henan Province
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case with film
Product name :
Oil extractor equipment
Oil material :
Sesame, avocado, walnut, olive, sunflower,
Usage :
Oil plant
Feature: :
simple operation
Service :
Oline after-sale service
Voltage :
380V
Advantages :
Full automatically
Description

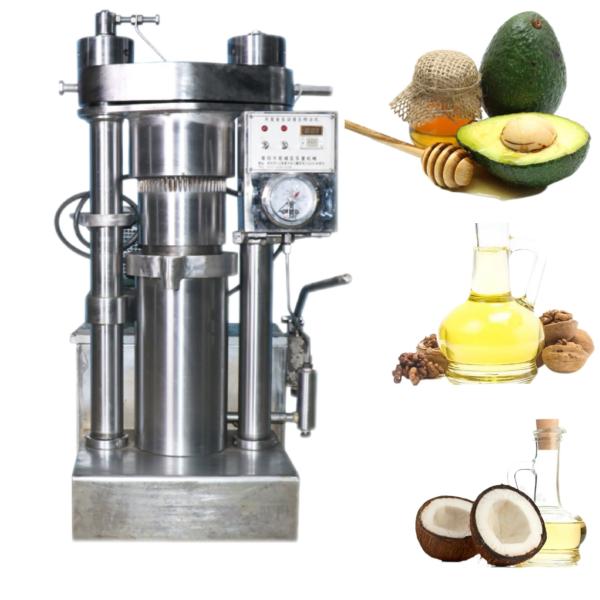

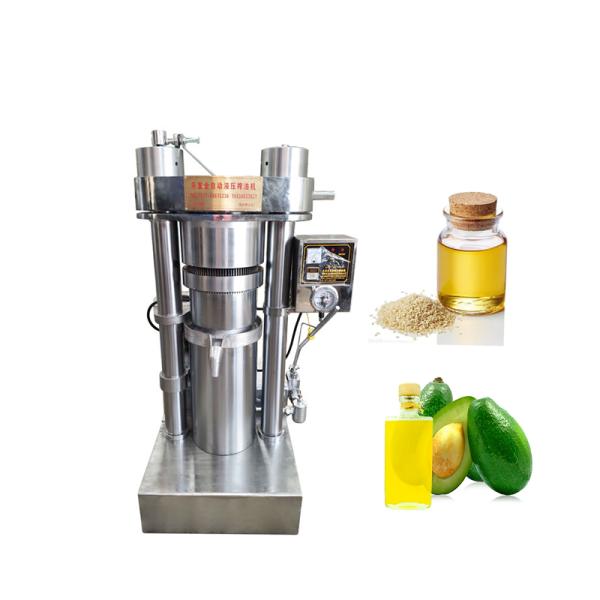

Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery

Operating priciple of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:

The working principle of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery is that the when the oil material is put into the assembly of the press barrel, then it being driven up by the oil cylinder piston, oil will be outflow from the oil line of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery,and then pass the oil drip pan to the drum for oil storage.

Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery

Seeds application of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:

1.It is suitable for direct processing of sesame, avocado, coconut, flaxseed, walnut and etc material.

2.If you want to process other special raw material, please cantact us to ensure.

Technical parameters of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:

Model

6YY-185

6YY-250

6YY-270

6YY-300

6YY-335

Weight

550kg

1060kg

1230kg

1600kg

1750kg

vacuum Power

1.1kw

1.1kw

2.2kw

2.2kw

2.2kw

3phase

2.2kw

2.2kw

4.0kw

4.8kw

4.8kw

Working pressure

60MPa

60MPa

60MPa

60MPa

60MPa

Capacity

4kg/batch

11kg/batch

13.5kg/batch

16kg/batch

20kg/batch

Dimension(mm)

600*880*1150

710*950*1560

750*1010*1640

1000*1100*1660

1100*1240*1730

Oil seeds's oil rate parameter:

Oil seeds Oil rate
Sesame 35%-45%
Avocado 15%-30%
Coconut 40%-58%
Flaxseeds 25%-35%
Walnut 40%-55%

Product Information of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery

1.Our Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery has many advantages:operation is easy, oil rate is higher, rare to replace wearing parts.

2.This Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery is the most advanced equipment which can replace of the manual operation of the sesame oil.

3.This Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery can press at least 4 to 23 kilograms per batch, the time is about 4 to 15 minutes.

Advantages of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery:

1. We choose the famous brand steel for Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, three times heating treatment and high manufacture technology to make sure it stronger enough.

2. Our QC department strictly to check the quality of all the parts for Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, to make sure the all the parts work well.

3. We will test the Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery before shipping, make sure the machine work without any problem, let the customer get the high quality equipment.

4. 10 professional engineers work with our production department of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery, can offer the best solution for your project

Packing and shipping of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery

Package of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery: Wooden case

Shipping of Mini Type Hydraulic Oil Press Machine Cold Avocado Oil Milling Machinery: Generally ship by sea or land.
