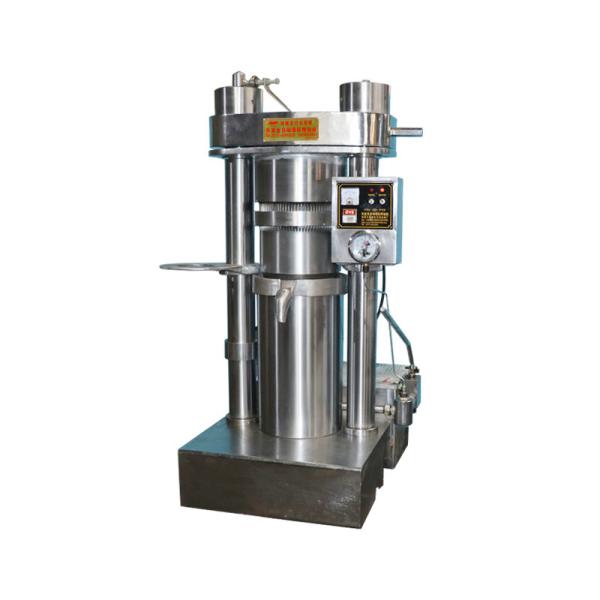

Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
Specifications
Brand Name :
Lewin
Model Number :
YY-270
Certification :
ISO CE
Place of Origin :
Nanyang,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5-8 working day
Packaging Details :
Wooden case with film/Customized
Product name :
cold press sesame oil press machine healthy edible oil process machine
Material :
Alloy
Usage :
Olive sesame avocado inca peanut and other raw materials
Feature :
High pressure high efficiency
Advantage :
Easy operation high oil yield
Size :
750*1010*1640mm
Weight :
1230kg
voltage :
220v / 380v / customize
Power :
2.2kw / 1.1kw
Capacity :
13.5kg / batch
Oil cake diameter :
270mm
Processing type :
Cold / hot press machine
Description

Product Description

cold press sesame oil press machine healthy edible oil process machine


Cold press sesame oil press machine can be used for process many kinds of raw material: cocoa, sesame, peanut, sunlower seeds,walnut, almond, soybean, rapeseed, pine seed.
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

Main Paramater:

1.we have different model for you reference.
2.We also can customized according to your requirments.

Model 6YY-270
Weight(kg) 1230
Capacity(kg/batch) 13.5
Working pressure 60Mpa
Power (single/3 phase) 2.2/1.1 kw
Package size(mm) 750*1010*1640
Oil Cake diameter(mm) 270


Introduction:

The design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used. It takes only a few minutes from the feeding to the finished product.
Our oil press has many advantages, as follows:
1. High oil yield, 30% higher oil yield than old equipment, and considerable economic net profit.
2. Labor saving, the same output can save labor, one to two people can produce.
3. Use Wide: multi-purpose machine, can squeeze more than 30 kinds of oil crops such as peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, soybean, etc.,
multi-stage pressing, one-time pressing, pure oil--vacuum filtration residue, guarantee oil purity , in line with health and quarantine standards.
4. Small footprint: oil square needs 10-20 square meters to meet the use.
5. innovative concept, mechanical and electrical integration.

Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

Detailed Images


Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

1. Large screw: The large nut has the function of protecting the machine. Our large nut does not need to be adjusted before use. It does not need to be debugged by the staff to protect the safety of the staff.
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
2. Pressure release valve: Because the maximum working pressure of the machine is 60Mpa, when the pressure of the machine reaches 60Mpa, the machine will automatically release pressure. When the pressure of the machine is higher than the set height, the pressure will be automatically released. Machine and personnel safety
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

3. Motor protect system: protects the motor and protects the safety of the workers.
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
4. Flat iron: Fix the top plate. No tilt angle, reduce friction, open the top plate is easier
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

This is the operation step diagram:
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

Customer feedback:

This is the feedback our customers have on our machines. After using the machine, the customer is very satisfied with the oil rate and the quality of the machine.
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine
Delivery:
Generally 7-10 working days after receipt the deposit
Cold Press Sesame Oil Press Machine Healthy Edible Oil Process Machine

After-service:
1). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
2). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
3). Paid service will be provided for the long term after guarantee period.
