Specifications
Brand Name :
Lewin
Model Number :
6YY-230A
Certification :
CE ISO
Place of Origin :
Henan province, china
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
5-7working days
Packaging Details :
Wooden case with film
Keyword :
Hydraulic oil press machine
Material :
Alloy steel
Weight :
924kg
Dimension :
670*950*1460
Capacity :
8.5kg/batch
Advantage :
simple opeartion
Voltage :
380V
Description

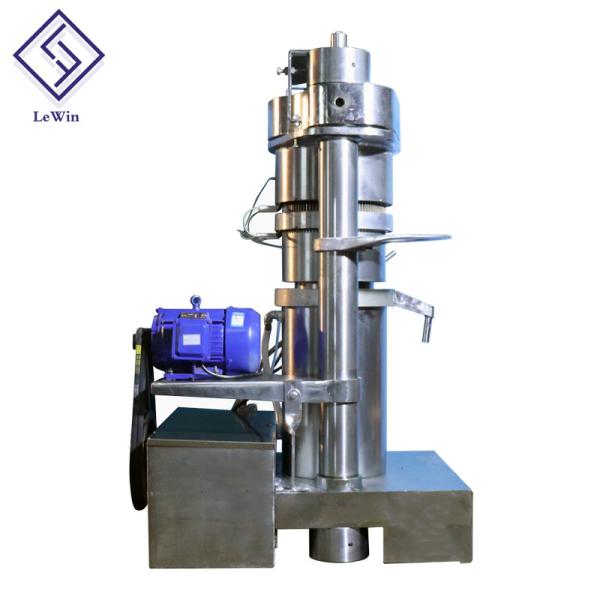

Hydraulic oil rapeseed pressers mini cold oil press for cooking pure oil

Hydraulic oil pressers Information

Hydraulic oil press machine can work with automatic control by heating, oil pressing and filtering simultaneously. It can press the rapeseed press before the press bore heating and heating to improve the oil yield, while in the squeezing process of hair Oil when filtering. The machine Could press rapeseed, cottonseed, soybean, peanut, flaxseed, palm, coconut shell, olive fruit, castor bean, sesame, sunflower, rice bran, corn germ, walnut, almond, evening primrose, Pine seeds, animal skin, clay and all oil crops. Residual oil rate is less than 5%.

How to work

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

Oil press machinery parameters

Model 6YY-185 6YY-230A 6YY-250 6YY-300 6YY-335
Weight 590kg 924kg 1070kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity (Kg/h) 4kg/batch 8.5kg/batch 11kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1460
710*950*1560
1000*1100*1660
1100*1240*1730

Selling points

(1) High oil yield, pure oil, no filtration.

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small.

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil
(3) Electromechanical integrated design, small footprint and easy operation.

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil
(4) Fast purification, stable and durable performance.


(5) Professional manufacturer, can make best solution according to customer's demands.

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

This is a flow chart for pressing sesame seeds. It is for your reference only. The sesame seeds after roasting are pressed and pressed to obtain healthy edible oil.

Please contact us if you have any questions.

Seeds application of hydraulic oil making machine

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

If you want to process other special raw material, please cantact us to ensure.

Simple operation

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Before delivery

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Packing and shipping

We have in enough stock and can arrange shipping for you as soon as possible.

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Company information

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Hydraulic Industrial Oil Press Machine Mini Cold Oil Press For Cooking Oil

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
