Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Semi Electric 2 Ton Forklift , 1.6m Battery Powered Forklift Large Capacity
Specifications
Brand Name :
Haizhili
Model Number :
CTD20/16
Certification :
CE, ISO
Place of Origin :
Hubei Province
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
10 - 20 working days
Packaging Details :
To be packed in a iron pallet.
Type :
Semi Electric Stacker
Load capacity :
2000kg
Machine weight :
355kg
Fork length :
1000mm
Turning radius :
1430m
Mast :
Single mast
Lifting motor :
DC12V/1.6KW
Fork cover height :
90mm
Wheel type :
Nylon
Color :
Yellow
Description

China supplier material handling tools 2 ton 1.6m semi electric stacker

Quick detail:

1. Loading capacity: 2000kg

2. Lifting height: 1600mm

3. Single mast

Specification of semi electric stacker:

Specification-1
Description Unit Model/CTD
10/16 10/20 10/25 10/30 10/35 10/40 15/16 15/20 15/25 15/30 15/35 15/40
Loading Rate kg 1000 1500
Maximum lifting height(H) mm 1600 2000 2500 3000 3500 4000 1600 2000 2500 3000 3500 4000
Pallet fork minimum height mm ≤90
Die Height© mm 2060 1550 1800 2050 2300 2550 2060 1550 1800 2050 2300 2550
Maximun height mm 2060 2530 3030 3530 4030 4530 2060 2530 3030 3530 4030 4530
Pallet fork type movable or fixed
Pallet fork max. length mm 680(According the customer' requirement)
Pallet fork active length mm 1000
Load center(D) mm 500
Total length mm 1640
Total With mm 780
Minimum turning radius mm 1430
Portal structure type single double single double
Cylinder structure form Single cylinder
Front load wheel size mm Φ78X90
Rear load wheel size mm Φ180X50
Hoisting machine specifications V/W DC12V/1.6KW
Storage battery specification V/Ah 12/120
Continuous working hours for the battery H 4
Charger specification V/A input 220V/50HZ,output12V/15A(built-in)

Specification-2
Description Unit Model/CTD
20/16 20/20 20/25 20/30 20/35 20/40
Loading Rate kg 2000
Maximum lifting height(H) mm 1600 2000 2500 3000 3500 4000
Pallet fork minimum height mm ≤90
Die Height© mm 2060 1550 1800 2050 2300 2550
Maximun height mm 2060 2530 3030 3530 4030 4530
Pallet fork type movable or fixed
Pallet fork max. length mm 680(According the customer' requirement)
Pallet fork active length mm 1000
Load center(D) mm 500
Total length mm 1640
Total With mm 780
Minimum turning radius mm 1430
Portal structure type single double
Cylinder structure form Single cylinder
Front load wheel size mm Φ78X90
Rear load wheel size mm Φ180X50
Hoisting machine specifications V/W DC12V/1.6KW
Storage battery specification V/Ah 12/120
Continuous working hours for the battery H 4
Charger specification V/A input 220V/50HZ,output12V/15A(built-in)

Tips:You can customize the product about the size of it's fork,and the load capacity,etc.

So please feel free to contact us for any question.

Advantages:

  • Car body adopts frame four pivot support form, fork is slider type structure, door frame, such as the fork of the main stress components are made of high quality steel welded together.

  • Large capacity parts adopt high quality steel plate strengthened, durable.

  • The movement parts are equipped with rolling bearing block and tackle. Up and down freely, small resistance.

  • The loading and unloading, and delivery the goods smoothly, transmission of power use oil cylinder,chain and rolling bearing group.

  • Compact structure, reliable performance, convenient maintenance, small turning radius, can run to ensure stability and safety requirements.

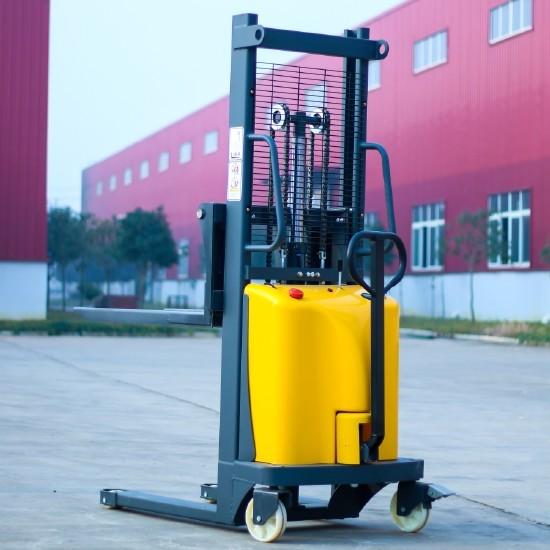

Photos of semi electric stacker:
