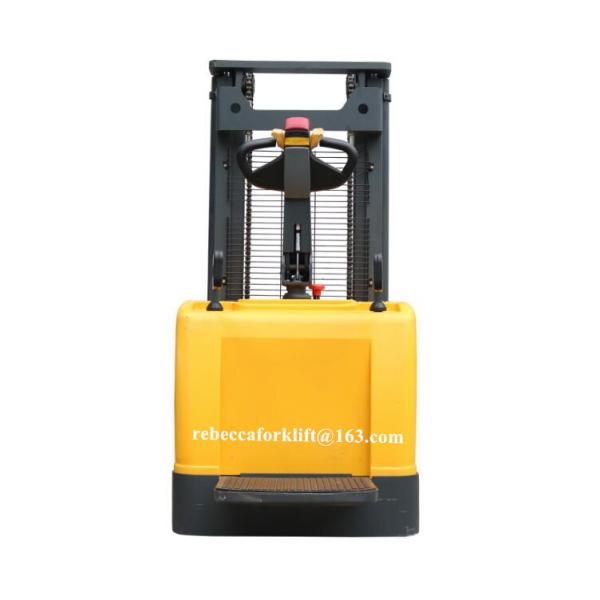

High Lift Electric Pallet Stacker 2 Meter Double Mast Type For Industry
High Lift Electric Pallet Stacker 2 Meter Double Mast Type For Industry
High Lift Electric Pallet Stacker 2 Meter Double Mast Type For Industry
High Lift Electric Pallet Stacker 2 Meter Double Mast Type For Industry
Specifications
Brand Name :
Hai Lift
Model Number :
CDD10M20-Q
Certification :
CE, ISO
Place of Origin :
Hubei Province
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
10 - 20 working days
Packaging Details :
To be packed in a iron pallet.
Type :
High Lift Pallet Stacker
Load capacity :
1 ton
Machine weight :
700kg
Fork length :
1150mm
Turning radius :
1590mm
Mast :
Double mast
Ligting motor :
DC12V/2.2KW
Fork outer width :
560/680mm
Wheel type :
PU
Load center :
600mm
Max lifting height :
2 meter
Description

Industrial Lifting Tool 1000KG 2 Meter Double Mast Electric High Lift Pallet Stacker

Quick detail of High Lift Pallet Stacker:

1. Loading capacity: 1000kg
2. Lifting height: 2000mm
3. Double mast
4. Lifting & discending way: by electric

Specification of High Lift Pallet Stacker:

Model ESC1M16-Q ESC1M25-Q ESC1M30-Q ESC15M16-Q ESC15M25-Q ESC15M30-Q
Load capacity (kg) 1000 1000 1000 1500 1500 1500
Load center(mm) 600 600 600 600 600 600
Wheels base(mm) 1440 1440 1440 1440 1440 1440
Weight(kg) 650 760 930 820 990 1090
Front wheel size(mm) 78 78 78 78 78 78
Rear wheel size(mm) 124 124 124 124 124 124
Driving wheel size(mm) 230 230 230 230 230 230
Mast retract height(mm) 1975 1975 2035 1975 1790 2035
Overall length(mm) 1950/2330 1950/2330 1950/2330 1950/2330 1950/2330 1950/2330
Overall width(mm) 820 820 820 820 820 820
Ground clearance(mm) 40 40 40 40 40 40
Fork length(mm) 1150 1150 1150 1150 1150 1150
Fork outer width(mm) 560/680 560/680 560/680 560/680 560/680 560/680
Turning radius(mm) 1700 1700 1700 1700 1700 1700
Fork min height(mm) 90 90 90 90 90 90
Max mast height(mm) 1975
