Specifications
Brand Name :
HAIZHILI
Model Number :
CTYD-2T-1.6M
Certification :
CE
Place of Origin :
HUBEI
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS PER MONTH
Delivery Time :
7 - 20 working day
Packaging Details :
Each to be packed in a iron pallet.
Product Name :
Manual Pallet Stacker
Power souce :
Manual
Type :
Stacker
Load capacity :
2000 (kg)
Fork length :
1000 (mm)
Single fork width :
130 (mm)
Outrigger height :
80 (mm)
Fork cover height :
90 (mm)
Tyre size, front :
80*60 (mm)
Tyre size, rear :
180 (mm)
Color :
Yellow
Description

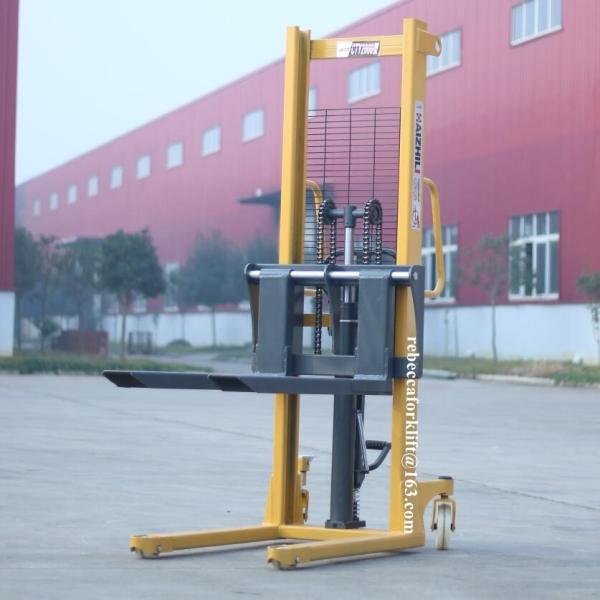

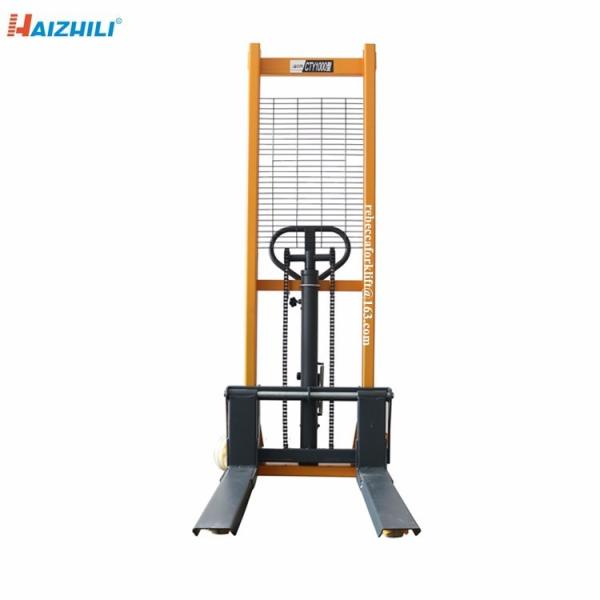

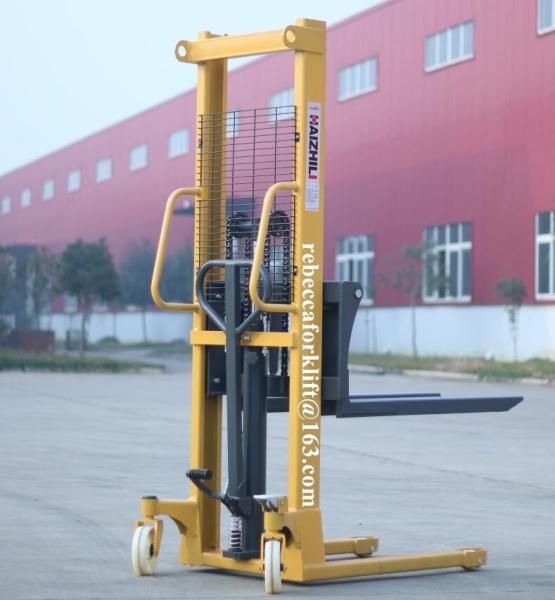

Portable hand forklift 2000kg hydraulic manual pallet stacker

Quick detail of Manual Pallet Stacker:

1. Loading capacity: 2000kg

2. Lifting height: 1600mm

3. Material: C type steel

2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height

Specification of Manual Pallet Stacker:

Model CTYD-1000 CTYD-2000 CTYD-3000
Load capacity (kg) 1000 2000 3000
Lift speed (mm / stroke) 33 21 14
Max. fork height (mm) 1600/1800/2000 1600/1800/2000 1600/1800/2000
Ground Clearance (mm) 20 20 20
Fork dimensions (l x w) 1000 * 120 1000 * 130 1000 * 150
Load wheel dimensions (mm) Φ80*60 Φ80*70 Φ80*90
Steer wheel dimensions (mm) Φ180 Φ180 Φ180
Wheel type Nylon Nylon Nylon
Min. fork height (mm ) 90 90 90
Descent speed adjustable adjustable adjustable
Overall size (mm) 1440*754*1960 1460*754*2020 1460*804*2020

If these are not the right model you are looking for, please feel free to let us know the followings:

1) What loading capacity will you need?

2) What lifting height will you require?

Advantages of Manual Pallet Stacker:

1) C-type steel is used on the mast

2) Adjustable fork is opted

3) Frame design strong capacity is strong

4) Steady lifting falling,speed can be control

5) The whole series are equipped with stretched safety grid and wheel carrier protection device

2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height

About us:

2000kg Manual Forklift Stacker , Hydraulic Portable Hand Forklift 1600mm Lifting Height

Hai Lift Machinery Co., Ltd. was founded in 1997. Hai Lift is a high tech enterprise of research and

development, manufacture, sales and after-sales service of material handle equipments. With 2 production

bases, covers an area of 20000 square meters, Hai Lift has more than 500 experienced technicians. We can

provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing

& logistics transportation.

Hai Lift has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ”.

Hai Lift has been developing itself by researching on new technology and new products, offering superior

products and service for customers. If you are looking for smooth business, profit and success, we are the

right supplier. With good quality and professional service, we have fully confidence that Hai Lift will be

your best partner. We sincerely hope to cooperate with you for win-win situation.

FAQ:

Q1: How long is the warranty time ?
A1: 2000 working hours or 12 month, whichever comes first.

Q2: How can I get the after-sales service?

A2: Contact with us if you have any question or need professional support. We will try to solve your

problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

Q3: What about the delivery time ?

A3: The delivery time is about 10-15days after receipt of down payment.

Q4: How to pay for it ?

A4: Generally, we used T/T: 30% as deposit and the balance will be paid before shipment. L/C is

available according to actual conditions.

Q5: Can I mix order?

A5: Yes.
