Specifications
Brand Name :
Haizhili
Model Number :
DCQY12-0.8
Certification :
CE, ISO
Place of Origin :
Hubei Province
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
10 - 20 working days
Packaging Details :
To be packed in a iron pallet.
Type :
Container loading ramps
Load capacity :
12 Ton
Machine weight :
1990kg
Working condition :
Indoor and outdoor
Overall length :
11200mm
Overall width :
2100mm
Platform width :
2000mm
Color :
Blue , red, green, yellow
Main material :
High-duty Steel Structure
Description

Mobile yard ramp 12 ton warehouse container loading ramps for container

Dock lifts are primarily used for moving wheeled or palletized loads onto and from delivery trucks. Because delivery truck height and dock height vary,the requirements that are requireed for rugged outdoor use.

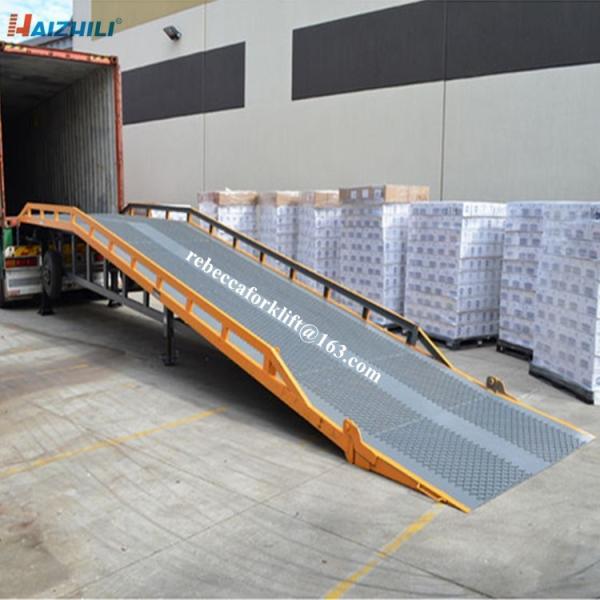

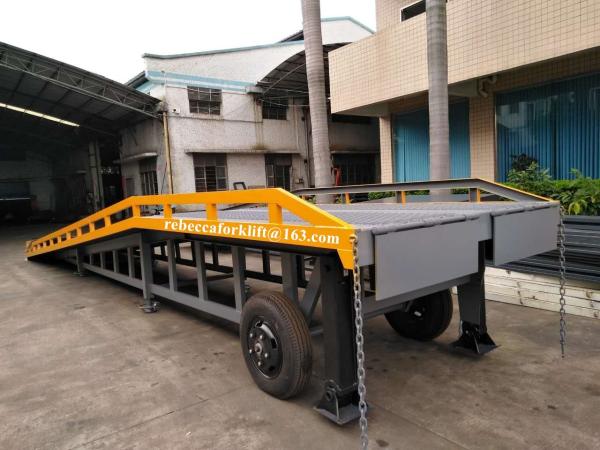

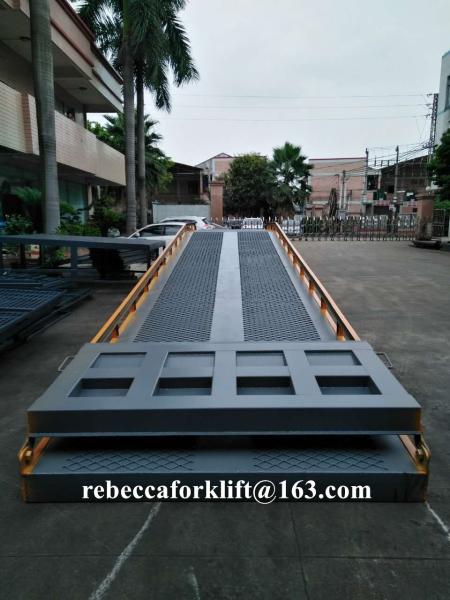

Photos of container loading ramps

High Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy OperationHigh Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy Operation

High Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy OperationHigh Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy OperationHigh Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy OperationHigh Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy Operation

Description of Container Loading Ramps

This mechanical used mobile dock ramp are widely used in terminals, stations, warehouses and other

places. According to the different needs of users, as the special design in terms of dimensions, load

bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush.

Speicification of container loading ramps

Model Loading capacity (kg) Table size (mm) Adjust height (mm)
A B C D E F G H I J
DCQY6-0.8 6000 7000 2200 1000 300 10500 2000 2080 1000 800 1800
DCQY8-0.8 8000 7000 2200 1000 300 10500 2000 2080 1000 800 1800
DCQY10-0.8 10000 7000 2400 1000 300 11200 2000 2080 1000 800 1800
DCQY10-0.8 10000 7000 2400 1000 300 11200 2000 2080 1000 800 1800

Tips: can be modified or customized to meet the specifid requirements of your particular application,

and each lift meets or exceeds the requirements of all applicable national safety codes.

Advantage of container loading ramps

1. Without installation and easy operation

2. Adopting high strength steel, structure is solid and durable

3. Easy and convenient maintenance

4. Improving working efficiency, reducing the manpower cost

5. Safety guaranteed:Safety support strut ensure safe when people doing maintain service under the ramp.

Anti-foot pinched plate on both sides. Anti-skid deck.


High Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy Operation

About us:

High Duty Steel Mobile Yard Ramp , 12 Ton Warehouse Dock Ramp Easy Operation

Hai Lift Machinery Co., Ltd. was founded in 1997. Hai Lift is a high tech enterprise of research and

development, manufacture, sales and after-sales service of material handle equipments. With 2 production

bases, covers an area of 20000 square meters, Hai Lift has more than 500 experienced technicians. We can

provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing

& logistics transportation.

Hai Lift has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ”.

Hai Lift has been developing itself by researching on new technology and new products, offering superior

products and service for customers. If you are looking for smooth business, profit and success, we are the

right supplier. With good quality and professional service, we have fully confidence that Hai Lift will be

your best partner. We sincerely hope to cooperate with you for win-win situation.

FAQ:

Q1: How long is the warranty time ?
A1: 2000 working hours or 12 month, whichever comes first.

Q2: How can I get the after-sales service?

A2: Contact with us if you have any question or need professional support. We will try to solve your

problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

Q3: What about the delivery time ?

A3: The delivery time is about 10-15days after receipt of down payment.

Q4: How to pay for it ?

A4: Generally, we used T/T: 30% as deposit and the balance will be paid before shipment. L/C is

available according to actual conditions.

Q5: Can I mix order?

A5: Yes.
