N5105 Quad Core Pfsense Mini Pc 5 × 2.5G NICs AES NI For Network Security
N5105 Quad Core Pfsense Mini Pc 5 × 2.5G NICs AES NI For Network Security
N5105 Quad Core Pfsense Mini Pc 5 × 2.5G NICs AES NI For Network Security
N5105 Quad Core Pfsense Mini Pc 5 × 2.5G NICs AES NI For Network Security
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
BF22205003-N5105
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chassis :
aluminium alloy chassis
Dimension :
188mm*120mm*50mm
Chassis color :
Black
CPU :
Celeron® Processor N5105 quad core
RAM :
1 x DDR4
Gigabit LAN :
5 Gigabit LAN
Serial ports :
2*RS232
Description

N5105 quad core 5 * 2.5G NICs AES NI pfsense network security firewall pc appliance desktop mini computer

Key Features

Integrated Intel® Celeron® Processor N5105 quad core 4 threads 2.0~2.9G hz processor

1 x DDR4 maximum 2933MHz up to 16GB

1*SATA3.0

1*MSATA SSD

5*INTEL i225 2.5G NAA LAN , Lan2~Lan5 support POE function

2*RS232

2*USB3.0, 2*USB2.0

1* H-D-M-I

1* VGA

DC 12V 5A power supply

Dimension: 188mm*120mm*50mm

aluminium alloy chassis

Fanless design without noise

Specifications

Model No. BF22205003-N5105
Chassis Color Black

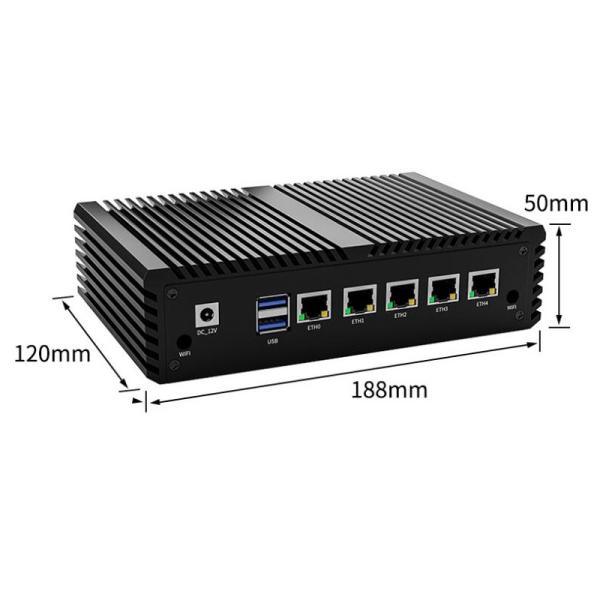

Dimension 188mm*120mm*50mm
Material aluminium alloy chassis
Platform Processor Integrated Intel® Celeron® Processor N5105 quad core 4 threads 2.0~2.9G hz processor
Chipset Jasper Lake series chipset
Graphics

Integrated Intel® UHD Graphics

1*H-D-M-I resolution maximum 1920*1080@60mhz

1*VGA resolution maximum 1920*1080@60mhz
RAM Memory Suport single channel SODIMM DDR4 maximum 2933MHz up to 16GB
Storage SSD Support 1*MSATA SSD expansion
SATA 1*SATA3.0
Audio Audio N/A
Network Ethernet

5*INTEL i225 2.5G NAA LAN (Network auto-Adaptability)

Support WOL (Wake-on-line)

Lan2~Lan5 support POE function
WiFi Support mini- PCIe Wifi function
4G network 1*sim slots Support 4G function

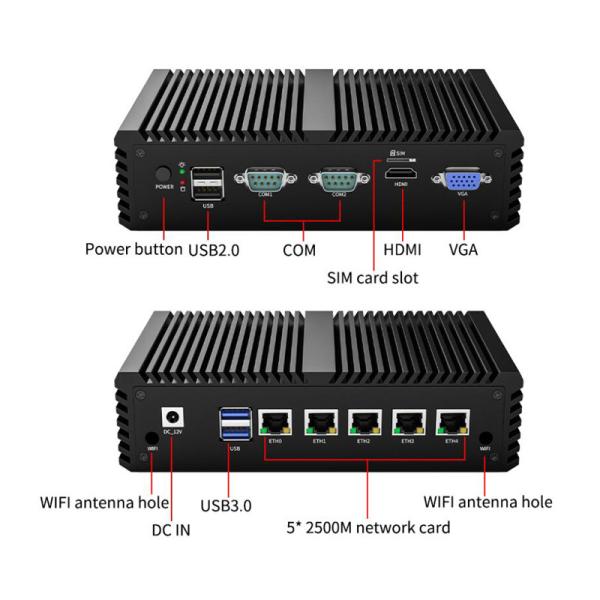

Interface Front I / O 1*power button
2* COM
2*USB2.0
1*VGA
1* H-D-M-I
1*SIM slot
Back I / O 1*DC Power adapter interface
5*INTEL i225 2.5G LAN
2*USB3.0
1*DC 12V interface
2*WIFI antenna interface
Expansion Mini PCIe Support 1 mini PCIE (either wifi or 4G)
Cooling Fanless design without noise
Power Supply Input AC 110V ~ 240V
Output DC 12V 5A power supply
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.

Our service:

1.We can provideOEM/ODMservices .

2.We can sell one sample for your test .

3.High-quality product and competitive price.

4.1 years Warranty
