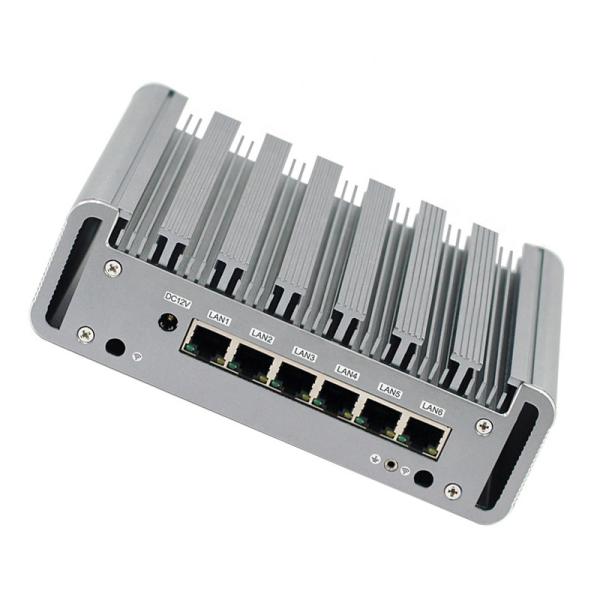

6 Gigabit LAN Firewall Mini Pc Intel 6th Gen I3-6100U I5-6200U I7-6500U Support PFsense
6 Gigabit LAN Firewall Mini Pc Intel 6th Gen I3-6100U I5-6200U I7-6500U Support PFsense
6 Gigabit LAN Firewall Mini Pc Intel 6th Gen I3-6100U I5-6200U I7-6500U Support PFsense
6 Gigabit LAN Firewall Mini Pc Intel 6th Gen I3-6100U I5-6200U I7-6500U Support PFsense
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
PF10406003-6TH
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Chassis :
Aluminium chassis
Dimension :
178.3*125.7*55mm
Chassis color :
Silver
CPU :
dual core Intel® i3-6100U / i5-6200U / i7-6500U
RAM :
2 *DDR4
Gigabit LAN :
6* Gigabit LAN
COM port :
1* CISCO standard RS232 serial
Description

6th Gen dual core Intel® i3-6100U i5-6200U i7-6500U 6 GLAN firewall mini pc support pFsense

Notice:

When you inquiry , you can choose the following Model

PF10406003-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor

PF10406003-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor

PF10406003-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor

6th Generation Intel® i3-6100U / i5-6200U / i7-6500U 6 GLAN firewall mini pc support pFsense industrial mini computer soft router

Key Features

Integrated Intel® CoreTM 6th generation Skylake-U i3-6100U / i5-6200U / i7-6500U

Dual channel DDR4 2133Mhz;

2 *DDR4 SODIMM 260 Socket

1* SATAIII ports

1*Mini-PCIe M-SATA Scoket

1*HDMI

4*USB3.0

1*RJ45 COM

6*RJ45 Gigabit Lan

Single input DC power,DC12-19V,+/-5%

Dimension: 178.3*125.7*55mm

Aluminium chassis

Specifications

Chassis Color Gray
Dimension 178.3*125.7*55mm
Material High-quality pure aluminum mini pc case
Platform Processor Integrated Intel® CoreTM 6th generation Skylake-U i3-6100U / i5-6200U / i7-6500U
Chipset Intel® Skylake--U Series SOC
Video Graphics

Intel HD Graphics 520

Maximum resolution support (HDMI1.4) 4096*2304@30HZ Support 4K display
Memory Technology framework Dual channel DDR4 2133Mhz;
RAM socket 2 *DDR4 SODIMM 260 Socket
Storage SATA 1* SATAIII ports,Maximum transmission rate to 6gb/s
M-SATA 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces)
Network Ethernet 6 Intel I211AT or Intel I210 (choose one)
WiFi Support

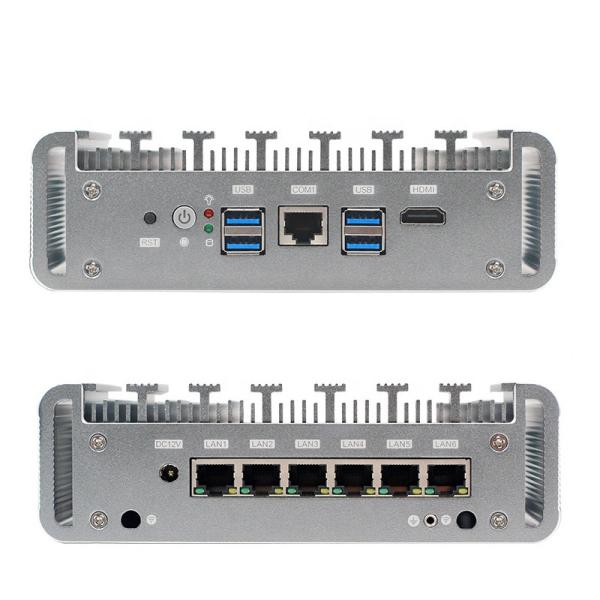

Input/Output Interface Ports

6*LAN

1*HDMI

1*DC

4*USB3.0

2*WIFI Antenna interface,

1* switch button

1* Reset button

1* Hard disk indicator,

1* Power Indicator
Expansion Mini PCIe 1 Mini-PCIe slot for PCIE signal and USB signal devices
Cooling Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment)
Power Supply Power type Single input DC power,DC12-19V,+/-5%
WORKING ENVIRONMENT Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
Operate System Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.
