H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-PB164-H110
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron
RAM :
2*DDR4 SODIMM 2133/2400MHz
Display :
VGA
Ethernet :
6*Gigabit LAN
COM :
1*RJ45 com port
USB :
2*USB3.0, 2*USB2.0
Size :
255 x 210 mm
Power :
DC12-19V
Description

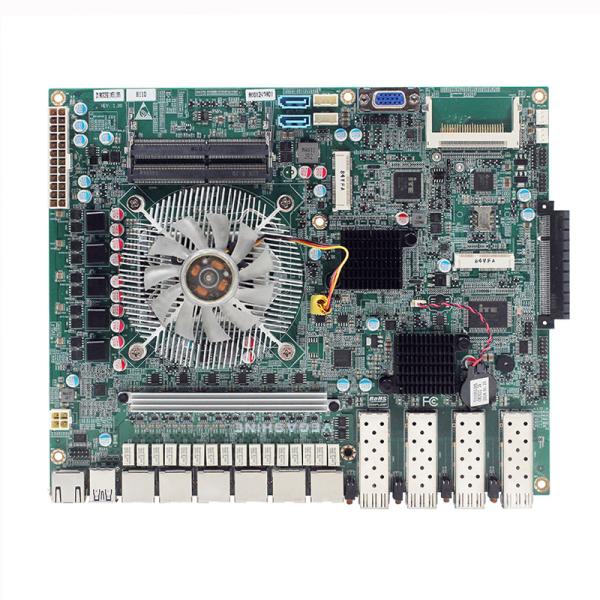

Intel® H110 firewall pc motherboard 6 gigabit NIC 4 SFP Optical port support bypass for Firewall pc network security Mainboard pfsense router

Key features

Support LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron CPU

H110/H170/Z170 high speed chipset

2*DDR4 SODIMM 2133/2400MHz

1*RJ45 com port

6*Gigabit LAN

4* Optical port

1* RJ45 COM

2*USB3.0, 2*USB2.0

1*VGA

2*Standard SATAIII ports

1*Mini-PCIe M-SATA Scoket

1*CF card slot

Aluminum alloy heat sink with fan

ATX Power supply Size: 255 x 210 mm

Specifications

PROCESSOR CPU Support LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron CPU
CPU Package LGA1151
CHIPSET H110/H170/Z170 high speed chipset (Except H110, other chipsets support RAID)
BIOS EFI BIOS
Memory Technology framework Dual channel DDR4 2133/2400MHz
Socket 2* DDR4 Memory socket
VIDEO Graphic controller Intel HD Graphics 610 (G4560 graphics card); graphics card model is related to the CPU
VGA VGA Support for maximum resolution 2048x1536
I/O panel Port

1*RJ45com port

2*USB3.0

6*LAN

4* Optical port(can choose two optical port)
Network CONTROLLER 6 Intel Gigabit LAN, I211 and I210 (LAN1 and LAN2, LAN3 and LAN4 support two groups of Bypass functions)
4 optical ports (chip I350) can be selected as 2 optical ports
Super I/O CONTROLLER NCT6102D
HARDWARE MONITORING Watchdog timer 0-255sec, sample code optional
Input/output interface USB

2*USB3.0 compatible with USB2.0 / 1.1

2*USB2.0, maximum support +5V/1.5
Com port 2 RS232 serial ports (COM1 is RJ45 interface and pin headers are selected, COM2 is pin header interface)
PS/2 1*PS/2 pin connector
EXPANSION BUS Mini-PCle 1 Mini-PCIe slot for PCIe and USB devices
PCIE 1*PCIE_8X interface
Storage SATA 2* standard SATAIII interfaces with a maximum transfer rate of 6Gb/s
M-SATA 1 *M-SATA Scoket with SANDISK protocol, maximum transfer rate 6gb/s
CF 1*CF card slot
POWER SUPPLY Power supply TYPE ATX Power supply
WORKING ENVIRONMENT Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
Size 　 255 x 210 mm
Support system 　 Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.

H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense RouterH110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router

H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router

H110 Pc Firewall Motherboard 6 NIC 4 SFP Port Bypass For Firewall Pc Pfsense Router
