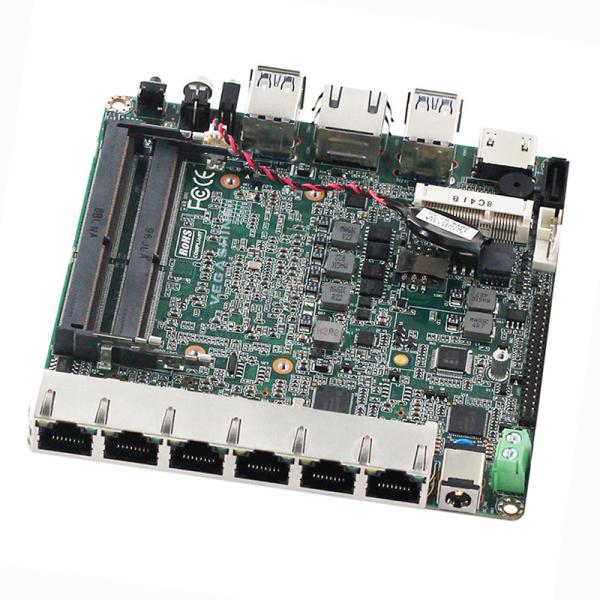

6 LAN Industrial Mainboard NANO For Firewall Pc Pfsense Router Intel® Kaby Lake 3865U
6 LAN Industrial Mainboard NANO For Firewall Pc Pfsense Router Intel® Kaby Lake 3865U
6 LAN Industrial Mainboard NANO For Firewall Pc Pfsense Router Intel® Kaby Lake 3865U
6 LAN Industrial Mainboard NANO For Firewall Pc Pfsense Router Intel® Kaby Lake 3865U
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-PB46-7TH-3865U
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Core™ Tiger Lake I7-1165G7 quad cores 8 threads 4.7Ghz
RAM :
2*DDR4 SODIMM 260 Socket
Display :
HDMI
Ethernet :
6*Intel I211AT or Intel I210(optional)
COM :
1*RJ45 Serial ports
USB :
4*USB3.0, 2*USB2.0
Size :
120 x 120 mm
Power :
DC12-19V
Description

Intel® Kaby Lake 3865U 6 gigabit lan industrial NANO motherboard for Firewall pc pfsense router

Key features

Integrated Intel® Celeron® Kaby Lake 3855U dual cores 2 threads 1.8Ghz CPU

Support Dual channel DDR4 2133Mhz

2 *DDR4 SODIMM 260 Socket

Intel® HD Graphics 510

6*Intel I211AT or Intel I210(optional)

1*RJ45 Serial ports

1*HDMI

4*USB3.0

2*USB2.0

1*Standard SATAIII ports

1*Mini-PCIe M-SATA Scoket

Aluminum alloy heat sink with fan

Single input DC power, DC12-19V

Size: 120 x 120 mm

Specifications

Processor CPU

Integrated Intel® Celeron® Kaby Lake 3855U dual cores 2 threads 1.8Ghz CPU
CPU package BGA
Intel chipset Intel® Kaby Lake serial SOC
BIOS EFI BIOS
Memory Technology Architecture Dual channel DDR4 2133Mhz;
socket 2 *DDR4 SODIMM 260 Socket
Video Graphics controller Intel® HD Graphics 610
HDMI Maximum resolution support (HDMI1.4) 4096*2304@24HZ Support 4K display
I/O backpanel Ports

1*HDMI

6*LAN

4*USB3.0

1* quick start button with indicator light

1* reset button

1*DC

1* power indicator

1* hard disk indicator
Internet controller 6*Intel I211AT or Intel I210(optonal)
Super I/O controller ITE8613
Hardwaremonitoring Watch-dog timer 0-255 seconds, providing a watchdog routine
Cooler Aluminum fan heater (supports automatic and manual fan speed adjustment)
Input/outputinterface USB 4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface)
Com 1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS)
GPIO 8-bit, providing routines, freely defined input/output, 3.3V@24mA level
Expansion bus Mini-PCle 1* Mini-PCIe slot for PCIE signal and USB signal devices
storage SATA 1* standard SATAIII interface with a maximum transfer rate of 6Gb/s
M-SATA 1*Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces)
power supply Power type DC 12-19V Power supply
working environment Operatingtemperature -20℃ ~ +60℃
storagetemperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, no condensation
Storage humidity 0% ~ 90% relative humidity, no condensation
Size 120*120mm
Operate System 　 Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.
