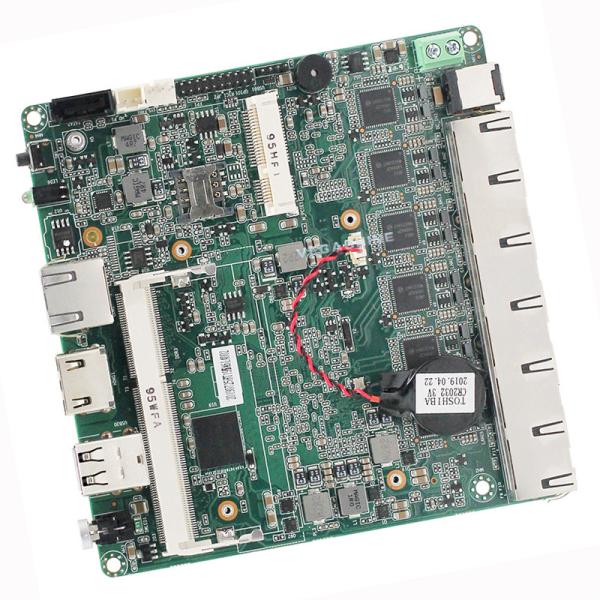

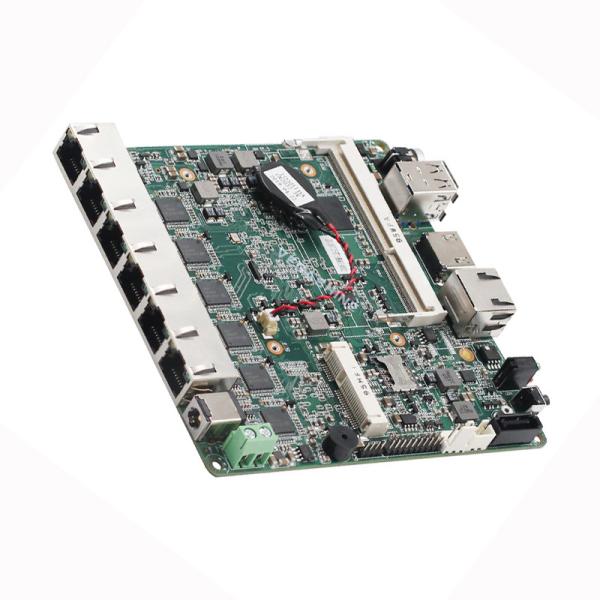

Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-PB46-BT
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Bay Trail J1800 J1900 N2806 E3845
Memory :
Single channel DDR3L 1066/1333MHz Max 8GB ram
Display :
HDMI
Network :
6*Intel I211AT or Intel I210(optional)
Console :
1*RJ45 interface RS-232
USB :
2*USB 2.0, 1*USB3.0
Size :
120 x 120 mm
Power supply :
DC12-19V power supply
Description

Notice :

When you inquiry , you can choose the following Model :

FW-PB46-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor

FW-PB46-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor

FW-PB46-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor

FW-PB46-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor

Bay Trail J1800 J1900 N2806 E3845 6 gigabit LAN nano firewall computer Motherboard network security mainboard

Key features

Integrated Bay Trail J1800 /J1900 /N2806 /N2900 E3845

Single channel DDR3L 1066/1333MHz Max 8GB ram

6*Intel I211AT or Intel I210

2*USB 2.0, 1*USB3.0

1*RJ45 interface RS-232

1 standard SATAII interface

1 Mini-PCIe M-SATA Scoket

EMMC Support 32/64/128GB(optional)

Aluminum fan radiator

Single input DC power supply, DC12-19V, +/-5%

Size: 120*120mm

Specifications

Processor CPU Integrated Bay Trail J1800 /J1900 /N2806 /N2900 E3845
CPU package BGA
Chipset Support Baytrail-I/D/M series processor
BIOS EFI BIOS
Memory Technology framework Single channel DDR3L 1066/1333MHz
RAM Max support 8GB ram
Memory socket DDR3 SODIMM 204 Socket
Video Graphic controller Intel HD Graphics
HDMI HDMI support max resolution 1920x1080
I/O back panel Ports 1*HDMI 1*USB3.0 1*USB2.0 6*LAN 1*Quick start button with indicator 1*Reset button 1*DC 1*Power indicator 1*Hard disk indicator
Network Controller 6*Intel I211AT or Intel I210 (High-performance Gigabit LAN card)
Hardware monitoring Watchdog timer 0-255 seconds,provide watchdog routine
Cooler Aluminum fan radiator (supports automatic and manual fan speed adjustment)
Input/output interface USB

2*USB2.0

1*USB3.0 max support +5V/1A
Com port 1*RJ45 interface RS-232 or RS485(optional)
Extension Bus Mini-PCle 1 Mini-PCIe slot for PCIE and USB signaling devices
Storage SATA 1 standard SATAII interface, maximum transfer rate 3Gb/s
M-SATA 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 3gb/s
EMMC Support 32/64/128GB(optional)
Power Power type Single input DC power supply,DC12-19V,+/-5%
Working environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Working humidity 0%~90% (non-condensing)
Storage humidity 0%~90% (non-condensing)
Support system 　 Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.
Dimension Size 120 x 120 mm
Weight 0.5KG

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.

Bay Trail J1800 J1900 N2806 E3845 6 Gigabit LAN Nano Firewall Computer Motherboard Network Security Mainboard
