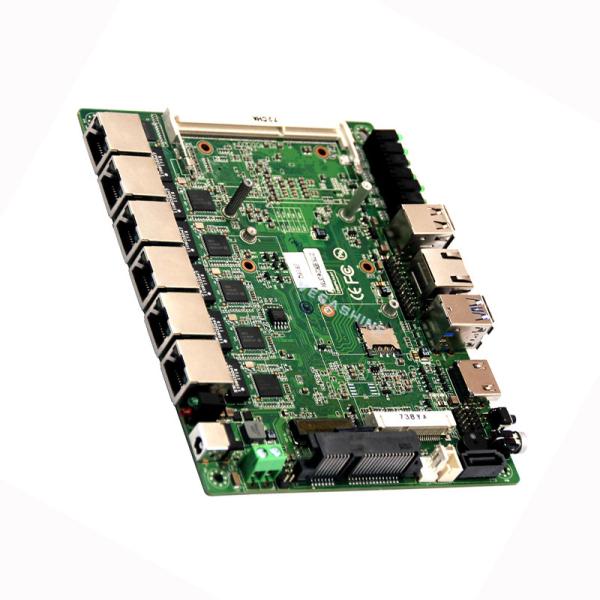

3.5 Intel 5th Broadwell-U I7-5500U Mini Motherboard 6 LAN Pfsense Router Support AES-NI
3.5 Intel 5th Broadwell-U I7-5500U Mini Motherboard 6 LAN Pfsense Router Support AES-NI
3.5 Intel 5th Broadwell-U I7-5500U Mini Motherboard 6 LAN Pfsense Router Support AES-NI
3.5 Intel 5th Broadwell-U I7-5500U Mini Motherboard 6 LAN Pfsense Router Support AES-NI
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
FW-PB36-5TH-I7
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Intel® Core™ 5th Broadwell-U I7-5500U dual cores 4 threads 2.4~3.0Ghz
RAM :
1*DDR3 SODIMM 204 Socket
Display :
HDMI
Ethernet :
6*LAN
COM :
1*RJ45 Serial ports
USB :
2*USB3.0, 4*USB2.0
Size :
154.8 x 117.4 mm
Power :
DC12-19V
Description

3.5 inch Intel 5th Broadwell-U I7-5500U 6 gigabit lan mini motherboard pfsense router support AES-NI

Key features

Integrated Intel® Core™ 5th Broadwell-U I7-5500U dual cores 4 threads 2.4~3.0Ghz CPU

Support Single Channel DDR3L 1066/1333/1600MHz

1*DDR3 SODIMM 204 Socket

Integrated Intel HD Graphics

1*HDMI, 6*LAN, 2*USB3.0, 4*USB2.0,

1*RJ45 Serial ports

Aluminum alloy heat sink with fan

1*Mini-PCIe socket,Support PCIe and USB devices

1*Standard SATAIII ports

1*Mini-PCIe M-SATA Scoket

Single input DC power, DC12-19V

Size: 154.8 x 117.4 mm

Specifications

Processor

　

　

　

 CPU

Integrated Intel® Core™ 5th Broadwell-U i5-5200U dual cores 4 threads 2.2~2.7Ghz CPU
CPU Package BGA
Chipset Intel® Broadwell-U series SOC
BIOS EFI BIOS

RAM

　

 Technology framework Single Channel DDR3L 1066/1333/1600MHz
RAM socket 1*DDR3 SODIMM 204 Socket;

　

Video

　

 Graphic controller Intel HD Graphics 5500(I3-5010U’s graphics);Graphics model is connected with CPU
HDMI Resolution maximum support(HDMI1.4)3200*2000@60HZ,support 4K display output
Rear Panel I/O Ports 1*HDMI,6*LAN,2*USB3.0,2*USB2.0,1*Switch button,1*Reset button,1*RJ45 Serial ports,1*DC port,1*Hard disk indicator,1*Power Indicator,LAN Indicator
Network Controller 6*Intel I211 Gigabit Ethernet,RJ45 ports
Super I/O Controller ITE8613E

Hardware monitor

　

 Watchdog & Timer 0~255 timer (Watchdog code optional)
Cooler Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment)

Input/Output Interface

　

　

　

 USB

2*USB3.0 (compatible USB1.1/2.0),

4*USB2.0 Max. Current supported +5V/1A
Serial ports 1*RS-232 or RJ45 port RS232(Optional)
PS/2 1*PS/2 pin header
GPIO 8bit,Sample code optional/Free definition of input/output,3.3V@24mA level
Extended bus Mini-PCle 1*Mini-PCIe socket,Support PCIe and USB devices

Storage

　

　

　

 SATA 1*Standard SATAIII ports,Maximum transmission rate to 6gb/s
SATA HDD1 1*SATA_HDD Hard disk interface,Maximum transmission rate to 6gb/s
NGFF_SSD 1*NGFF_SSD interfaces
M-SATA 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol,Maximum transmission rate to 6gb/s

Power Supply

　

 Power Type Single input DC power,DC12-19V,+/-5%
Power Consumption 35W

3.53.5

3.5
