I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
I5-4200U X86 Industrial PC Embedded , Digital Signage Computer with WIFI
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
OPSPC-P05-4TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
Processor :
Intel® Haswell i3-4010U / i5-4200U /i7-4500U
RAM :
1 *DDR3L
Ethernet :
1*Gigabit Ethernet Port
SATAIII :
1* standard SATA3.0
Msata :
1* Mini-PCIe MSATA
WIFI :
support WIFI
Dimension :
179.6*118*30 mm
Power supply :
Single DC Power Supply, DC12-19V
Description

Intel® Haswell i5-4200U X86 OPS PC industrial mini pc embedded digital signage computer

Notice :

When you inquiry , you can choose the following Model :

OPSPC-P05-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor

OPSPC-P05-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor

OPSPC-P05-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor

Intel® Haswell i3-4010U / i5-4200U / i7-4500U X86 OPS PC industrial mini pc embedded digital signage computer

Key features

Integrated Intel® Haswell i3-4010U / i5-4200U / i7-4500U

Support 1 *DDR3L SODIMM 204 Socket 1066/1333/1600MHz

Onboard 1*Gigabit Ethernet Port

1*SATA3.0

1* Mini-PCIe MSATA

1*HDMI

1*VGA

2*USB3.0

2*USB2.0

1*80pin standard OPS port

Support WIFI

Single DC Power Supply, DC12-19V,+/-5%

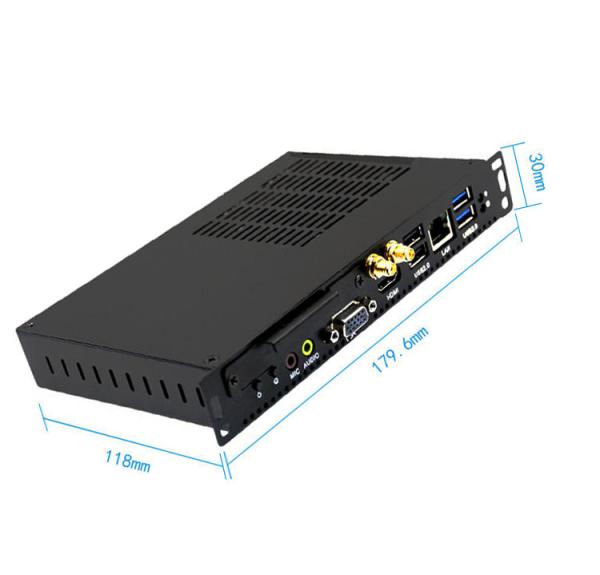

Size: 179.6*118*30 mm

Specifications

Processor CPU

Integrated Intel® Haswell i3-4010U / i5-4200U / i7-4500U
CPU package BGA
chipset intel® Haswell-U serialSOC
BIOS EFI BIOS
Memory Technology Architecture Singel channel DDR3L 1066/1333/1600MHz
socket 1 *DDR3L SODIMM 204 Socket
Video Graphic controller Intel HD Graphics 4400 (I3-4010U graphics card); graphics models related to CPU
VGA VGA support max resolution:2048x1536
HDMI Maximum resolution support (HDMI1.4)3200*2000@60HZ support 4K display output
I/O interface Port

1*LAN

1*(HDMI)

1*VGA

1*DC

1*MIC-IN

1*LINE-OUT

2*USB3.0

2*USB2.0

2*WIFI antenna interface

1*switch button

1*Reset button

1*Hard disk indicator

1*Power Indicator

1*80pin standard OPS port
OPS straight card interface 　

1*LINE-OUT

1*HDMI

1*DP

1*DC

3*USB2.0

1*Power on /off button
Internet controller 1 * RTL8111E-V Gigabit Ethernet, RJ45
Audio controller Realtek HD ALC662 audio decoding (left and right channel + microphone)
Hardware control Watchdog timer 0-255 seconds to provide watchdog routines
Cooler Aluminum heat sink(fan or fanless)
storage SATA 1 *standard SATAIII interface, the maximum transfer rate of 6Gb / s
SATA_HDD 1 * SATA_HDD hard disk interface, the maximum transfer rate of 6Gb / s
M-SATA 1* Mini-PCIe MSATA Socket, support SANDISK protocol, the maximum transfer rate of 6gb / s
Power type Power type Single DC Power Supply, DC12-19V,+/-5%
Working Environment Working temperature -20℃ ~ +60℃
Storage temperature -40℃ ~ +85℃
Operating humidity 0% to 90% relative humidity, no condensation
Storage humidity 0% to 90% relative humidity, no condensation
Dimension size 179.6*118*30 mm
