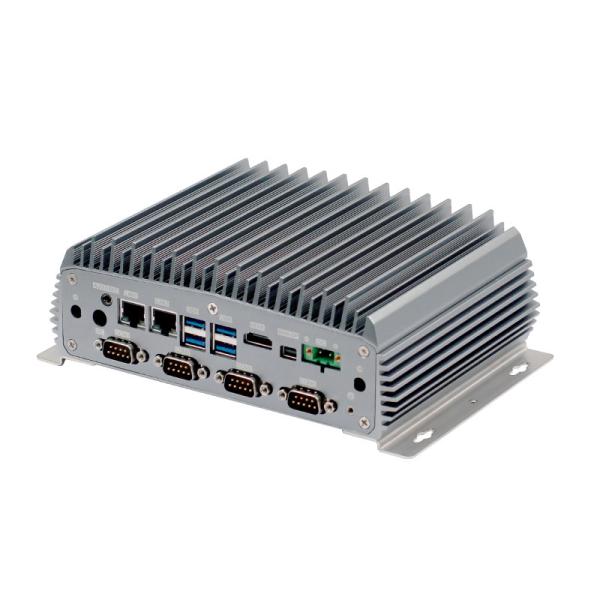

8 USB 6 COM Industrial Mini PC 7th Gen I3-7100U I5-7200U I7-7500U X86
8 USB 6 COM Industrial Mini PC 7th Gen I3-7100U I5-7200U I7-7500U X86
8 USB 6 COM Industrial Mini PC 7th Gen I3-7100U I5-7200U I7-7500U X86
8 USB 6 COM Industrial Mini PC 7th Gen I3-7100U I5-7200U I7-7500U X86
Specifications
Brand Name :
VEGASHINE / OEM
Model Number :
IPC-P10-6442HD-7TH
Place of Origin :
Shenzhen China
MOQ :
1 unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 units per Month
Delivery Time :
3 to 10 work days
Packaging Details :
Carton
CPU :
Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U / Celeron® 3865U/3965U
RAM :
1*DDR4 Socket max 32GB
Display :
HDMI+DP
Serial ports :
6 *COM
USB :
8* USB
Ethernet :
2* Gigabit LAN
Dimension :
209.4*122.6*70.6mm
Power :
DC12V power supply
Description

Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U X86 Industrial mini Pc 6COM 2LAN DP port Wide voltage DC power

Notice:

When you inquiry , you can choose the following Model

IPC-P10-6442HD-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor

IPC-P10-6442HD-7TH-3965U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 2.2GHz Processor

IPC-P10-6442HD-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor

IPC-P10-6442HD-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor

IPC-P10-6442HD-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor

Intel® Kaby Lake 7th gen i3-7100U/ i5-7200U/ i7-7500U /Celeron® 3865U/3965U X86 Industrial mini Pc 6COM 2LAN DP port Wide voltage DC power

Key features

Integrated Intel® Core™ Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U / Celeron® 3865U/3965U

1*DDR4 SODIMM 260 Socket Support MAX 32GB DDR4 RAM

Support HDMI+DP Synchronous or asynchronous display

1*DP++

1*HDMI

4*USB2.0, 4*USB3.1

2*Gigabit LAN

6*COM

1*SATA3.0

1* onboard SSD

DC 9-36V power supply

Size: 209.4*122.6*70.6mm

Support Intel AMT remote management technology

Specifications

Processor Integrated Intel® Core™ Kaby Lake 7th gen i3-7100U i5-7200U i7-7500U / Celeron® 3865U/3965U
Chipset Intel® Kaby Lake-u serial SOC
Ram socket 1*DDR4 SODIMM 260 Socket,Support MAX 32GB DDR4 RAM
Network 1*Intel I211AT,1*Intel I219-LM Gigabit Ethernet
Audio Onboard HDA ALC662
Storage

1*SATA3.0

1* onboard SSD

1*Mini-SATA (choose one of onboard SSD or Mini SATA)
Rear panel interface

2*LAN

1*HDMI

1*DP++

4*COM(COM1 and 2 can be selected as RS232 or RS485 through cap skipping and BIOS, and com5 and 6 are RS232)

4*USB3.1

1*LINE-OUT/MIC IN

2*WIFI Antenna interface

1*DC
Front panel interface

1 * quick switch button

1 * reset button

1 * power indicator

1 * hard disk indicator

4*USB2.0

2*COM RS232(COM3 can be selected as

RS422 / RS485 through BIOS, and COM4 can be selected as RS232 or RS485 through cap skipping and BIOS)

1*GPIO
Chassis Silver
Size 209.4*122.6*70.6mm
Operating system Windows7/Windows 8/Windows8.1 /Windows10/linux
Power Type DC12V power supply
Operating temperature -20℃ ~ +60℃
storage temperature -40℃ ~ +85℃
Working humidity 0% ~ 90% relative humidity, non-condensing
Storage humidity 0% ~ 90% relative humidity, non-condensing

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.
